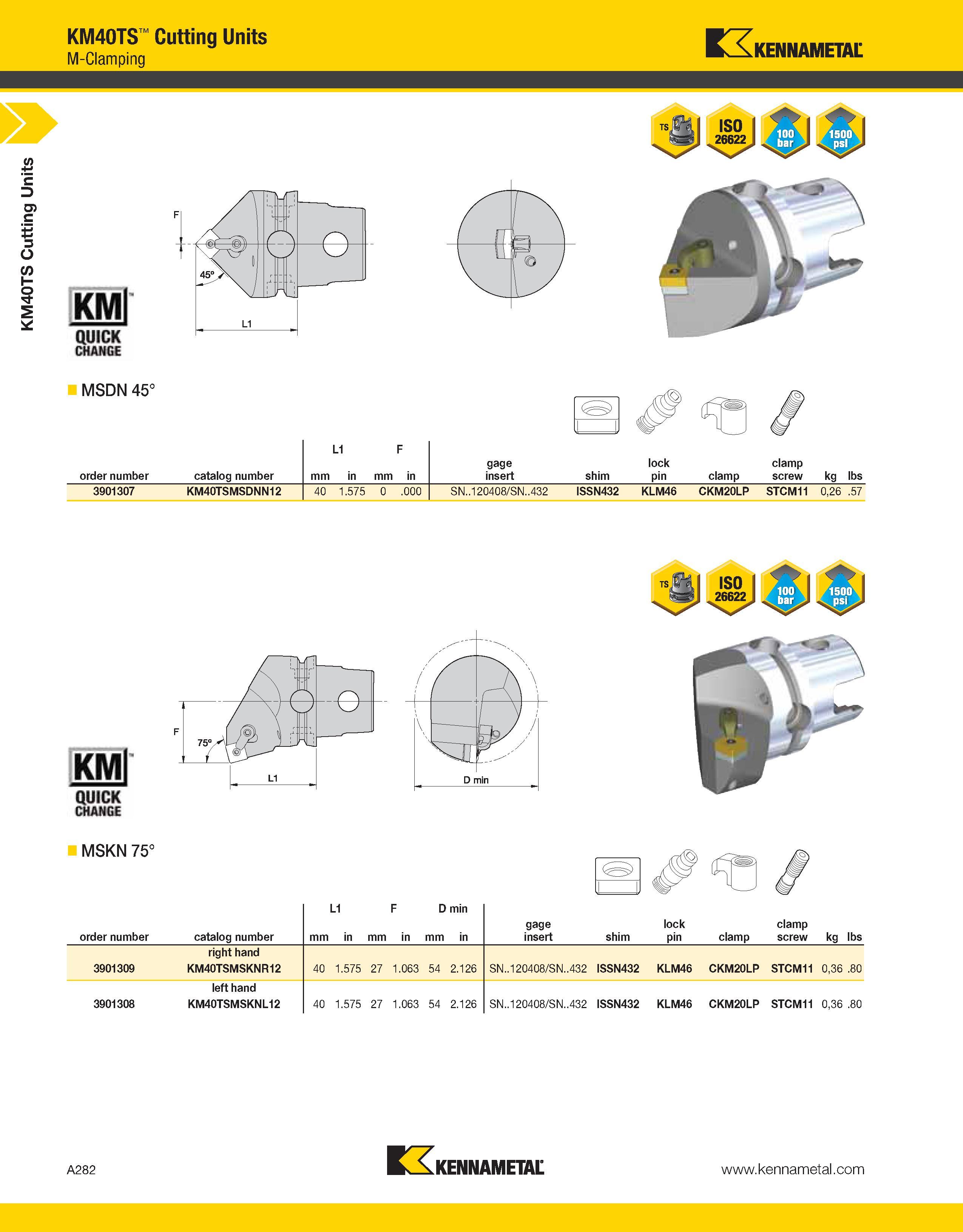

a KM40TS Cutting Units KM40TS Cutting Units M-Clamping Kennametal KMl QUICK CHANGE MSDN 45° order number catalog number L1 F mm in gage insert shim lock pin clamp clamp screw kg lbs 3901307 KM40TSMSDNN12 40 1.575 0 .000 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,26 .57 HANGE MSKN 75° order number catalog number mm L1 in mm F in D min mm in gage insert shim lock pin clamp clamp screw kg lbs right hand 3901309 KM40TSMSKNR12 40 1.575 27 1.063 54 2.126 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,36 .80 left hand 3901308 KM40TSMSKNL12 40 1.575 27 1.063 54 2.126 SN..120408/SN..432 ISSN432 KLM46 CKM20LP STCM11 0,36 .80 A282 n, KENNAMETAL
