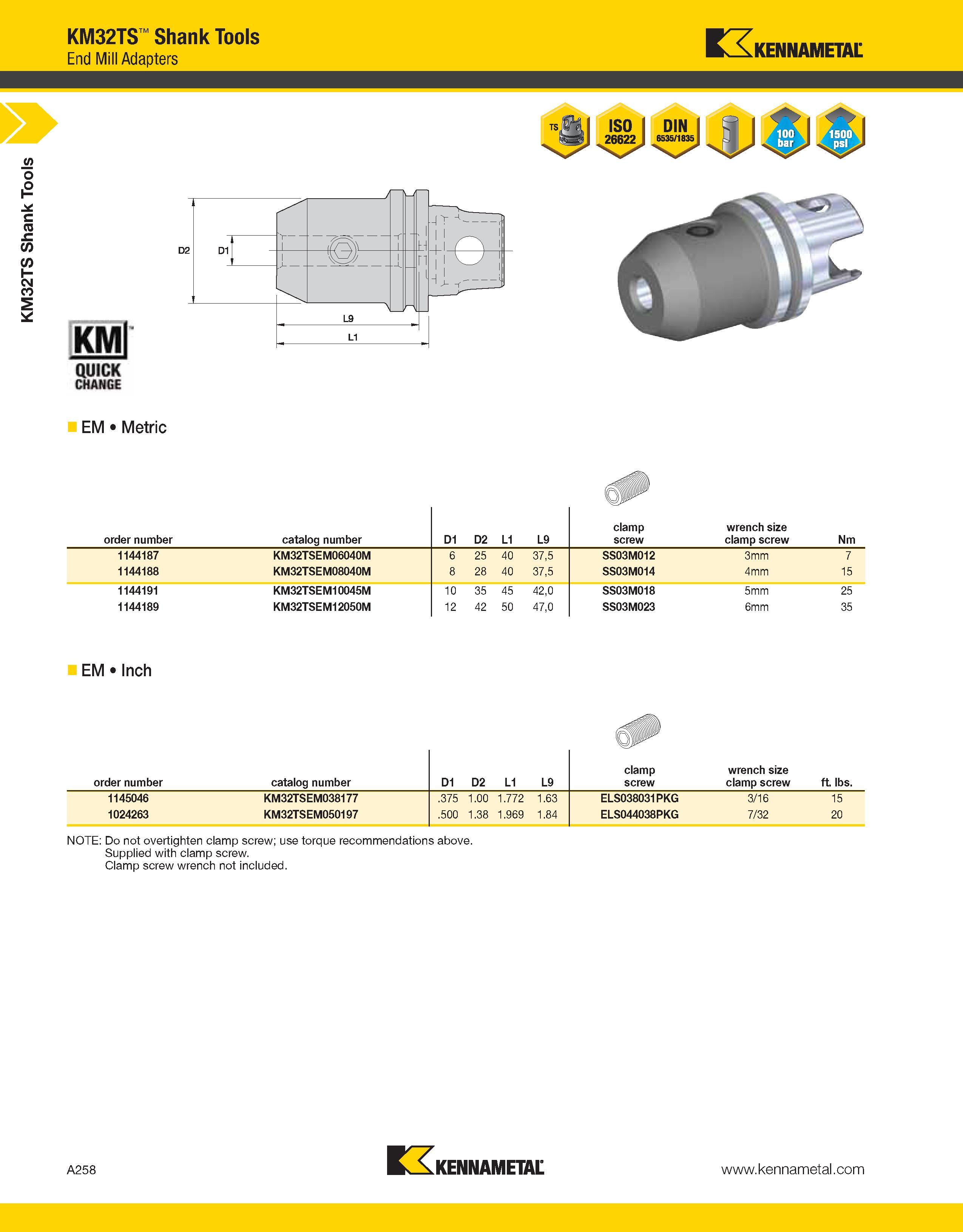

a KM32TS Shank Tools KM32TS Shank Tools End Mill Adapters Kennametal EM Metric order number catalog number D1 D2 L1 L9 clamp screw wrench size clamp screw Nm 1144187 KM32TSEM06040M 6 25 40 37,5 SS03M012 3mm 7 1144188 KM32TSEM08040M 8 28 40 37,5 SS03M014 4mm 15 1144191 KM32TSEM10045M 10 35 45 42,0 SS03M018 5mm 25 1144189 KM32TSEM12050M 0 5 2 4 2 47,0 SS03M023 6mm 35 EM Inch order number catalog number D1 D2 L1 L9 clamp screw wrench size clamp screw ft. lbs. 1145046 KM32TSEM038177 .375 1.00 1.772 1.63 ELS038031PKG 3/16 15 1024263 KM32TSEM050197 .500 1.38 1.969 1.84 ELS044038PKG 7/32 20 NOTE: Do not overtighten clamp screw; use torque recommendations above. Supplied with clamp screw. Clamp screw wrench not included. A258 n, KENNAMETAL
