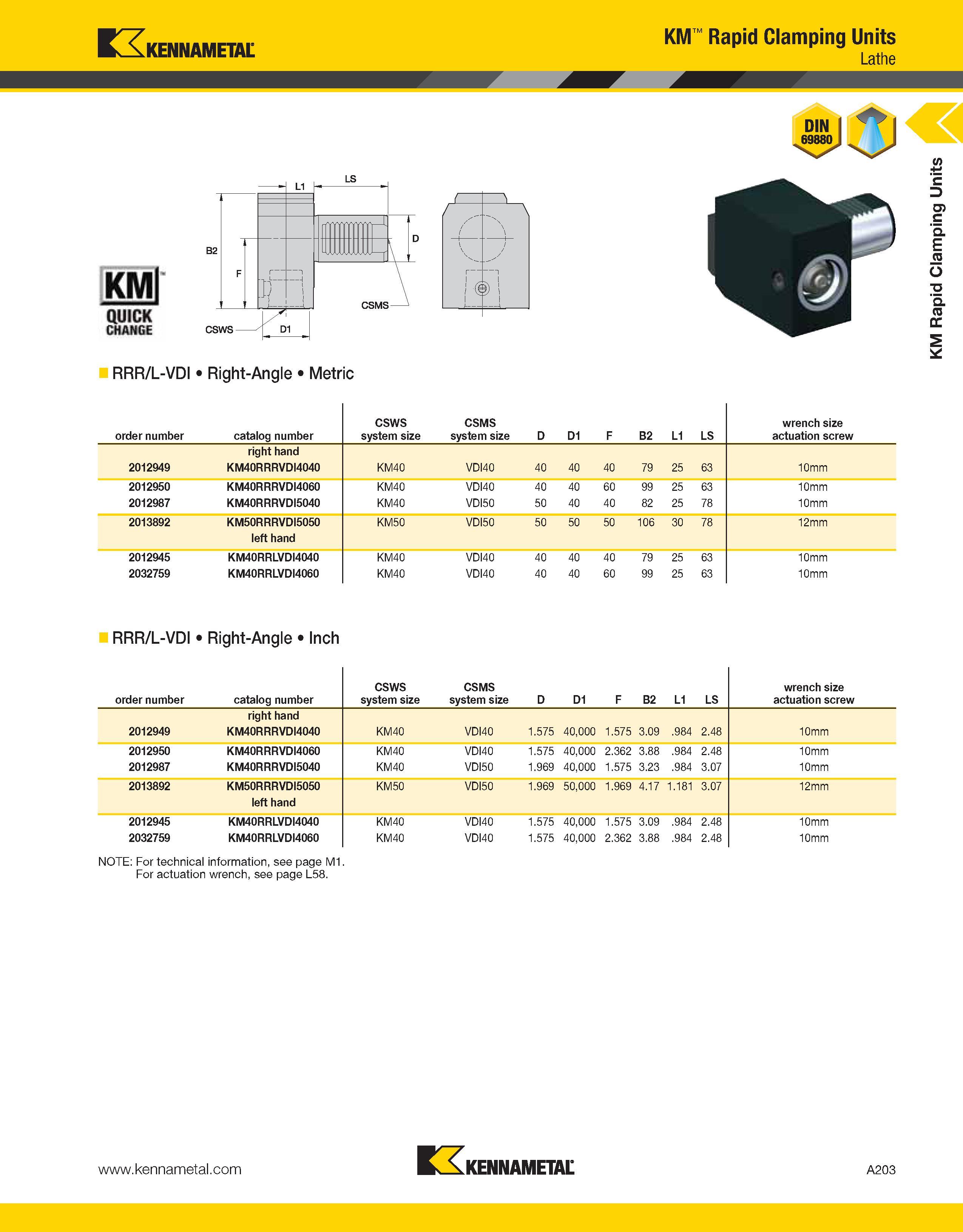

Kennametal KM Rapid Clamping Units Lathe -H L1 B2 U j I -jr-1 LS CSWS ' D1 RRR/L-VDI Right-Angle Metric ( 'l / ( _ H P 1 order number catalog number CSWS system size CSMS system size D D1 F B2 L1 LS wrench size actuation screw right hand 2012949 KM40RRRVDI4040 KM40 VDI40 40 40 40 79 25 63 10mm 2012950 KM40RRRVDI4060 KM40 VDI40 40 40 60 99 25 63 10mm 2012987 KM40RRRVDI5040 KM40 VDI50 50 40 40 82 25 78 10mm 2013892 KM50RRRVDI5050 KM50 VDI50 50 50 50 106 30 78 12mm left hand 2012945 KM40RRLVDI4040 KM40 VDI40 40 40 40 79 25 63 10mm 2032759 KM40RRLVDI4060 KM40 VDI40 40 40 60 99 25 63 10mm RRR/L-VDI Right-Angle Inch order number catalog number CSWS system size CSMS system size D D1 F B2 L1 LS wrench size actuation screw right hand 2012949 KM40RRRVDI4040 KM40 VDI40 1.575 40,000 1.575 3.09 .984 2.48 10mm 2012950 KM40RRRVDI4060 KM40 VDI40 1.575 40,000 2.362 3.88 .984 2.48 10mm 2012987 KM40RRRVDI5040 KM40 VDI50 1.969 40,000 1.575 3.23 .984 3.07 10mm 2013892 KM50RRRVDI5050 KM50 VDI50 1.969 50,000 1.969 4.17 1.181 3.07 12mm left hand 2012945 KM40RRLVDI4040 KM40 VDI40 1.575 40,000 1.575 3.09 .984 2.48 10mm 2032759 KM40RRLVDI4060 KM40 VDI40 1.575 40,000 2.362 3.88 .984 2.48 10mm NOTE: For technical information, see page M1. For actuation wrench, see page L58. n KENNAMETAL A203 KM Rapid Clamping Units
