239 Каталог KENNAMETAL 2013 Инструментальная оснастка для металлорежущих станков Стр.A199

Каталог KENNAMETAL 2013 Инструментальная оснастка Стр. A199 0239 Lab2u

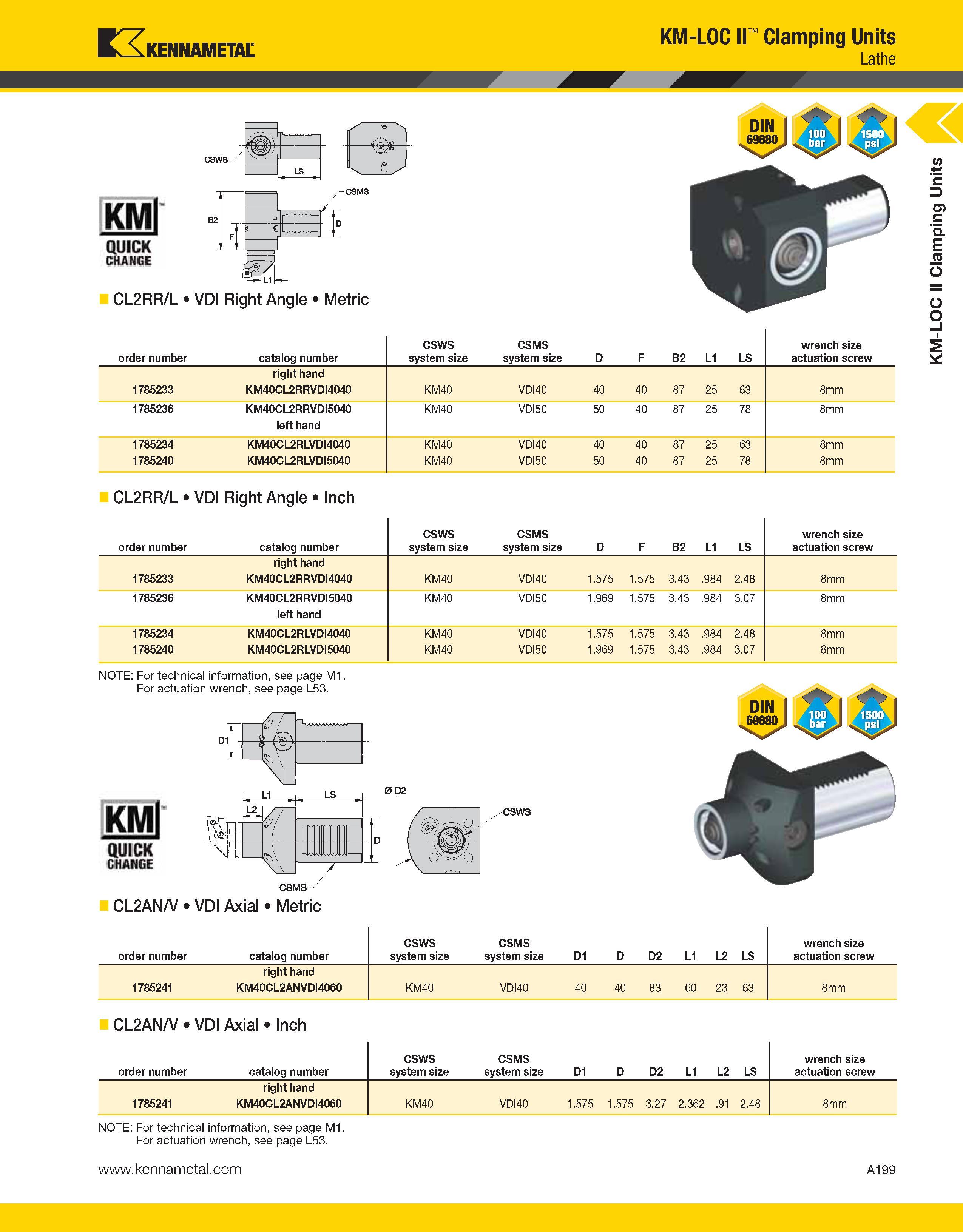

Kennametal KM-LOC II Clamping Units Lathe KMl QUICK CHANGE Q CL2RR/L VDI Right Angle Metric order number catalog number CSWS system size CSMS system size D F B2 L1 LS wrench size actuation screw right hand 1785233 KM40CL2RRVDI4040 KM40 VDI40 40 40 87 25 63 8mm 1785236 KM40CL2RRVDI5040 left hand KM40 VDI50 50 40 87 25 78 8mm 1785234 KM40CL2RLVDI4040 KM40 VDI40 40 40 87 25 63 8mm 1785240 KM40CL2RLVDI5040 KM40 VDI50 50 40 87 25 78 8mm CL2RR/L VDI Right Angle Inch order number catalog number CSWS system size CSMS system size D F B2 L1 LS wrench size actuation screw right hand 1785233 KM40CL2RRVDI4040 KM40 VDI40 1.575 1.575 3.43 .984 2.48 8mm 1785236 KM40CL2RRVDI5040 left hand KM40 VDI50 1.969 1.575 3.43 .984 3.07 8mm 1785234 KM40CL2RLVDI4040 KM40 VDI40 1.575 1.575 3.43 .984 2.48 8mm 1785240 KM40CL2RLVDI5040 KM40 VDI50 1.969 1.575 3.43 .984 3.07 8mm NOTE: For technical information, see page M1. For actuation wrench, see page L53. KM QUICK CHANGE CL2AN/V VDI Axial Metric order number catalog number CSWS system size CSMS system size D1 D D2 L1 L2 LS wrench size actuation screw right hand 1785241 KM40CL2ANVDI4060 KM40 VDI40 40 40 83 60 23 63 8mm CL2AN/V VDI Axial Inch order number catalog number CSWS system size CSMS system size D1 D D2 L1 L2 LS wrench size actuation screw right hand 1785241 KM40CL2ANVDI4060 KM40 VDI40 1.575 1.575 3.27 2.362 .91 2.48 8mm NOTE: For technical information, see page M1. For actuation wrench, see page L53. A199 KM-LOC II Clamping Units
