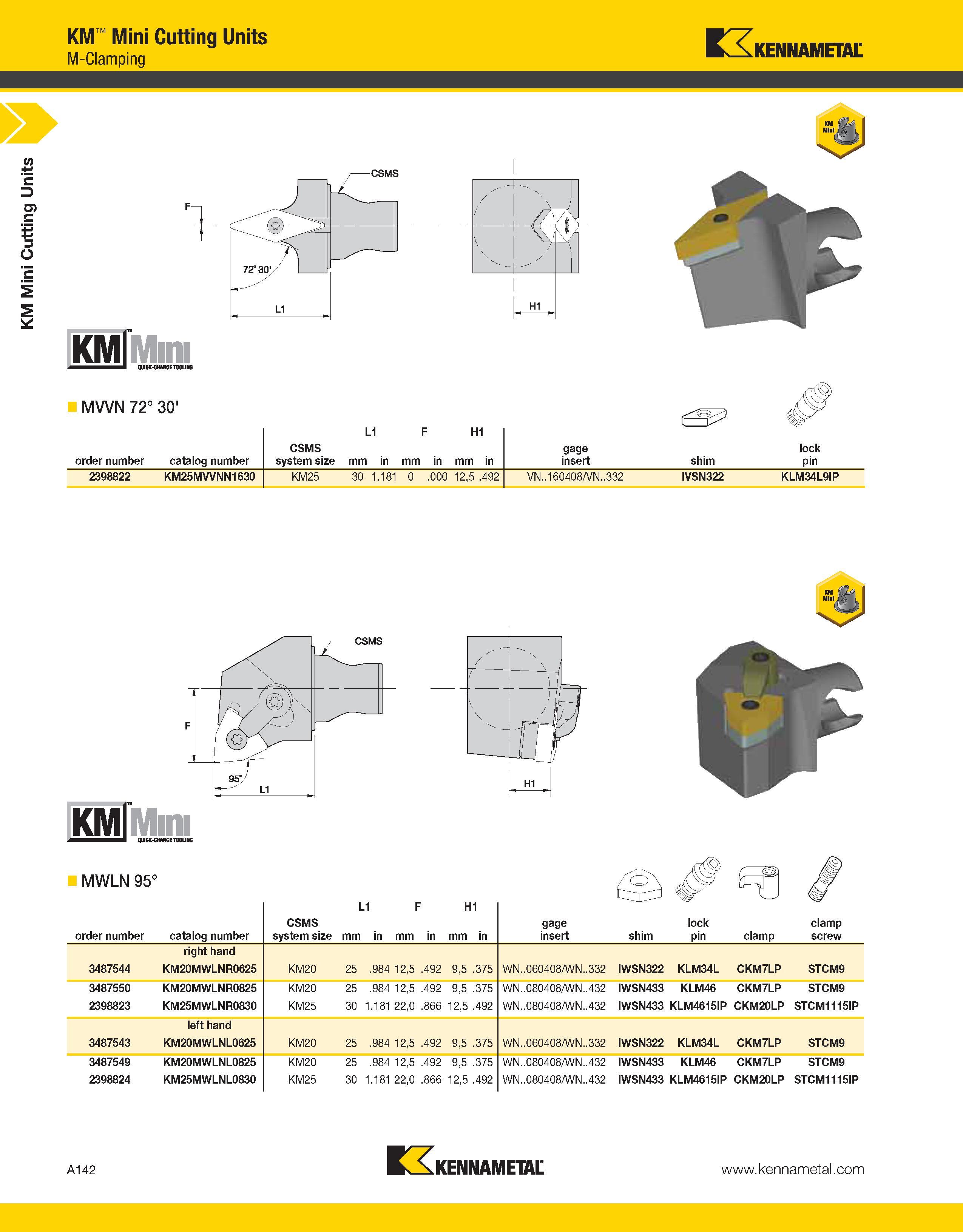

a KM Mini Cutting Units KM Mini Cutting Units M-Clamping fcAKENNAMElBL iKMlMm QWGK-CHAMGE TOOLING MVVN 72° 30' L1 F H1 CSMS gage lock order number catalog number system size mm in insert shim pin 2398822 KM25MVVNN1630 KM25 30 1.181 0 .000 12,5 .492 VN..160408/VN..332 IVSN322 KLM34L9IP iKMlMm QUICK-CHANGE TOOLING MWLN 95° order number catalog number CSMS system size L1 F mm in H1 mm in gage insert shim lock pin clamp clamp screw right hand 3487544 KM20MWLNR0625 KM20 25 .984 12,5 .492 9,5 .375 WN..060408/WN..332 IWSN322 KLM34L CKM7LP STCM9 3487550 KM20MWLNR0825 KM20 25 .984 12,5 .492 9,5 .375 WN..080408/WN..432 IWSN433 KLM46 CKM7LP STCM9 2398823 KM25MWLNR0830 KM25 30 1.181 22,0 .866 12,5 .492 WN..080408/WN..432 IWSN433 KLM4615IP CKM20LP STCM1115IP left hand 3487543 KM20MWLNL0625 KM20 25 .984 12,5 .492 9,5 .375 WN..060408/WN..332 IWSN322 KLM34L CKM7LP STCM9 3487549 KM20MWLNL0825 KM20 25 .984 12,5 .492 9,5 .375 WN..080408/WN..432 IWSN433 KLM46 CKM7LP STCM9 2398824 KM25MWLNL0830 KM25 30 1.181 22,0 .866 12,5 .492 WN..080408/WN..432 IWSN433 KLM4615IP CKM20LP STCM1115IP A142 n, KENNAMETAL
