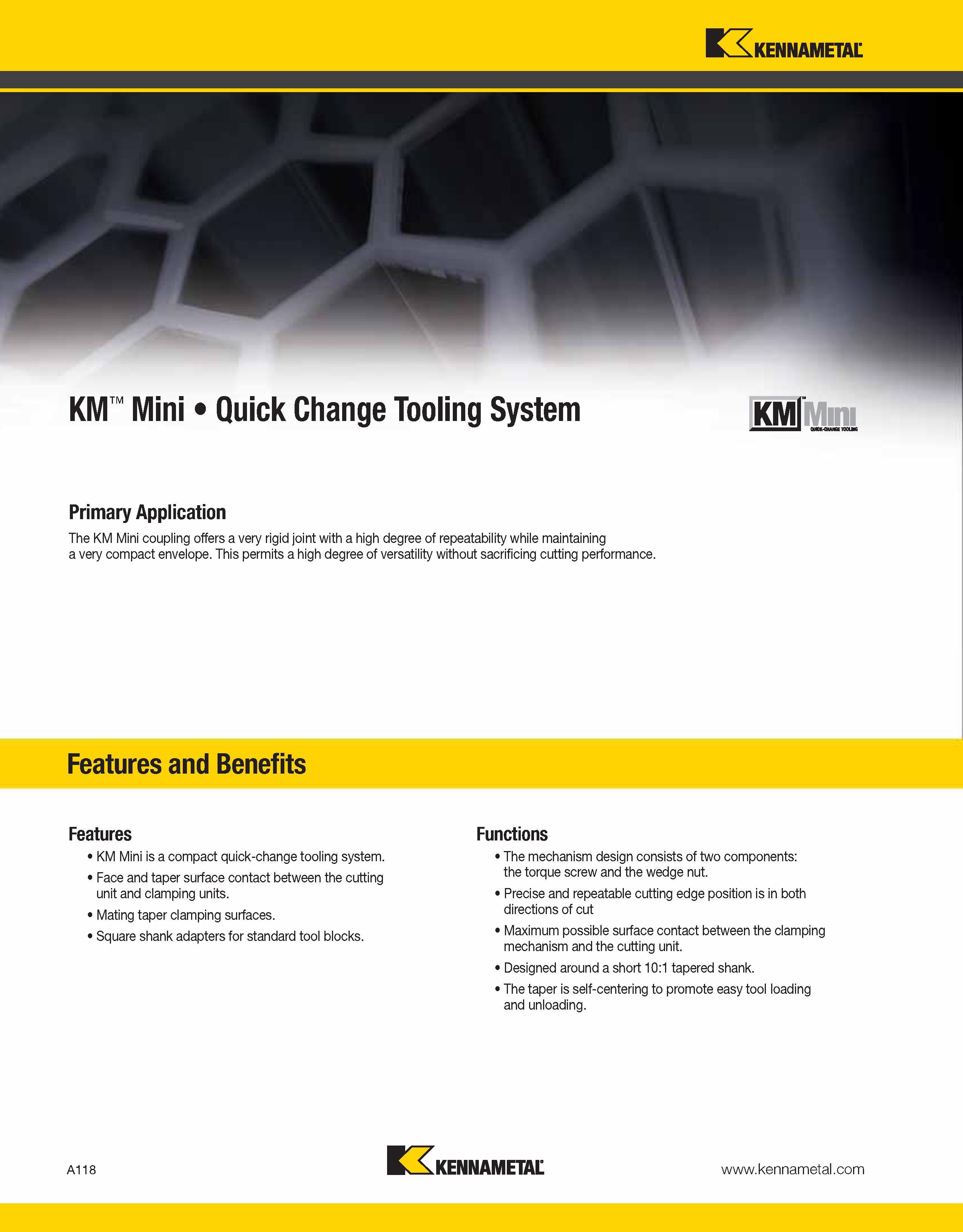

Kennametal KM Mini Quick Change Tooling System KMl Primary Application The KM Mini coupling offers a very rigid joint with a high degree of repeatability while maintaining a very compact envelope. This permits a high degree of versatility without sacrificing cutting performance. Features and Benefits Features KM Mini is a compact quick-change tooling system. Face and taper surface contact between the cutting unit and clamping units. Mating taper clamping surfaces. Square shank adapters for standard tool blocks. Functions The mechanism design consists of two components: the torque screw and the wedge nut. Precise and repeatable cutting edge position is in both directions of cut Maximum possible surface contact between the clamping mechanism and the cutting unit. Designed around a short 10:1 tapered shank. The taper is self-centering to promote easy tool loading and unloading. A118 Kennametal
