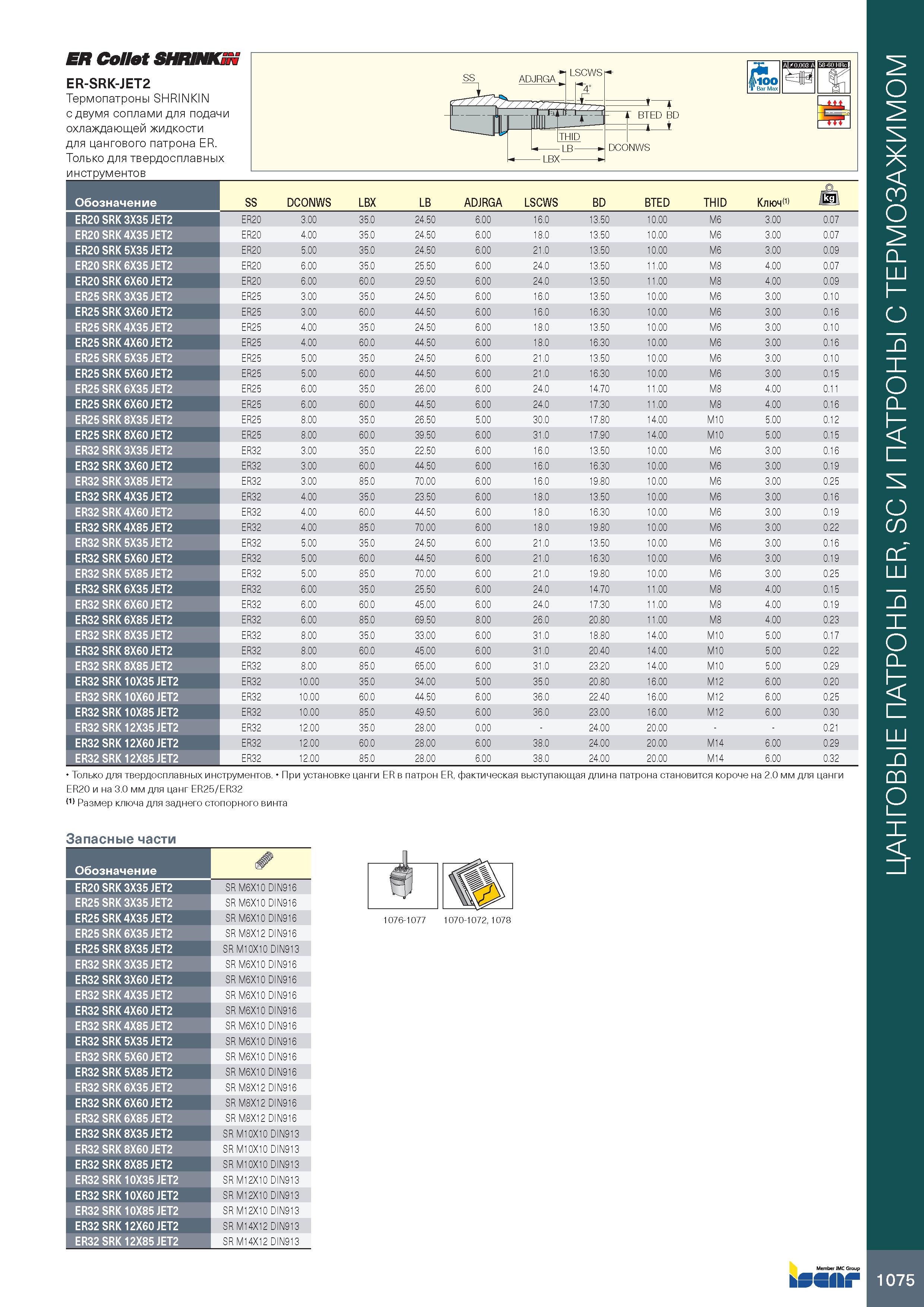

ER Collet SHRINKIN ER-SRK-JET2 Термопатроны SHRINKIN с двумя соплами для подачи охлаждающей жидкости для цангового патрона ER. Только для твердосплавных инструментов THID -LB — BTED BD =i-i DCONWS iioo '1 Bar Max ц 1Я Обозначение SS DCONWS LBX LB ADJRGA LSCWS BD BTED THID Ключ(1) Ikgl ER20 SRK 3X35 JET2 ER20 3.00 35.0 24.50 6.00 16.0 13.50 10.00 M6 3.00 0.07 ER20 SRK 4X35 JET2 ER20 4.00 35.0 24.50 6.00 18.0 13.50 10.00 M6 3.00 0.07 ER20 SRK 5X35 JET2 ER20 5.00 35.0 24.50 6.00 21.0 13.50 10.00 M6 3.00 0.09 ER20 SRK 6X35 JET2 ER20 6.00 35.0 25.50 6.00 24.0 13.50 11.00 M8 4.00 0.07 ER20 SRK 6X60 JET2 ER20 6.00 60.0 29.50 6.00 24.0 13.50 11.00 M8 4.00 0.09 ER25 SRK 3X35 JET2 ER25 3.00 35.0 24.50 6.00 16.0 13.50 10.00 M6 3.00 0.10 ER25 SRK 3X60 JET2 ER25 3.00 60.0 44.50 6.00 16.0 16.30 10.00 M6 3.00 0.16 ER25 SRK 4X35 JET2 ER25 4.00 35.0 24.50 6.00 18.0 13.50 10.00 M6 3.00 0.10 ER25 SRK 4X60 JET2 ER25 4.00 60.0 44.50 6.00 18.0 16.30 10.00 M6 3.00 0.16 ER25 SRK 5X35 JET2 ER25 5.00 35.0 24.50 6.00 21.0 13.50 10.00 M6 3.00 0.10 ER25 SRK 5X60 JET2 ER25 5.00 60.0 44.50 6.00 21.0 16.30 10.00 M6 3.00 0.15 ER25 SRK 6X35 JET2 ER25 6.00 35.0 26.00 6.00 24.0 14.70 11.00 M8 4.00 0.11 ER25 SRK 6X60 JET2 ER25 6.00 60.0 44.50 6.00 24.0 17.30 11.00 M8 4.00 0.16 ER25 SRK 8X35 JET2 ER25 8.00 35.0 26.50 5.00 30.0 17.80 14.00 M10 5.00 0.12 ER25 SRK 8X60 JET2 ER25 8.00 60.0 39.50 6.00 31.0 17.90 14.00 M10 5.00 0.15 ER32 SRK 3X35 JET2 ER32 3.00 35.0 22.50 6.00 16.0 13.50 10.00 M6 3.00 0.16 ER32 SRK 3X60 JET2 ER32 3.00 60.0 44.50 6.00 16.0 16.30 10.00 M6 3.00 0.19 ER32 SRK 3X85 JET2 ER32 3.00 85.0 70.00 6.00 16.0 19.80 10.00 M6 3.00 0.25 ER32 SRK 4X35 JET2 ER32 4.00 35.0 23.50 6.00 18.0 13.50 10.00 M6 3.00 0.16 ER32 SRK 4X60 JET2 ER32 4.00 60.0 44.50 6.00 18.0 16.30 10.00 M6 3.00 0.19 ER32 SRK 4X85 JET2 ER32 4.00 85.0 70.00 6.00 18.0 19.80 10.00 M6 3.00 0.22 ER32 SRK 5X35 JET2 ER32 5.00 35.0 24.50 6.00 21.0 13.50 10.00 M6 3.00 0.16 ER32 SRK 5X60 JET2 ER32 5.00 60.0 44.50 6.00 21.0 16.30 10.00 M6 3.00 0.19 ER32 SRK 5X85 JET2 ER32 5.00 85.0 70.00 6.00 21.0 19.80 10.00 M6 3.00 0.25 ER32 SRK 6X35 JET2 ER32 6.00 35.0 25.50 6.00 24.0 14.70 11.00 M8 4.00 0.15 ER32 SRK 6X60 JET2 ER32 6.00 60.0 45.00 6.00 24.0 17.30 11.00 M8 4.00 0.19 ER32 SRK 6X85 JET2 ER32 6.00 85.0 69.50 8.00 26.0 20.80 11.00 M8 4.00 0.23 ER32 SRK 8X35 JET2 ER32 8.00 35.0 33.00 6.00 31.0 18.80 14.00 M10 5.00 0.17 ER32 SRK 8X60 JET2 ER32 8.00 60.0 45.00 6.00 31.0 20.40 14.00 M10 5.00 0.22 ER32 SRK 8X85 JET2 ER32 8.00 85.0 65.00 6.00 31.0 23.20 14.00 M10 5.00 0.29 ER32 SRK 10X35 JET2 ER32 10.00 35.0 34.00 5.00 35.0 20.80 16.00 M12 6.00 0.20 ER32 SRK 10X60 JET2 ER32 10.00 60.0 44.50 6.00 36.0 22.40 16.00 M12 6.00 0.25 ER32 SRK 10X85 JET2 ER32 10.00 85.0 49.50 6.00 36.0 23.00 16.00 M12 6.00 0.30 ER32 SRK 12X35 JET2 ER32 12.00 35.0 28.00 0.00 24.00 20.00 0.21 ER32 SRK 12X60 JET2 ER32 12.00 60.0 28.00 6.00 38.0 24.00 20.00 M14 6.00 0.29 ER32 SRK 12X85 JET2 ER32 12.00 85.0 28.00 6.00 38.0 24.00 20.00 M14 6.00 0.32 Только для твердосплавных инструментов. При установке цанги ER в патрон ER, фактическая выступающая длина патрона становится короче на 2.0 мм для цанги ER20 и на 3.0 мм для цанг ER25/ER32 (1) Размер ключа для заднего стопорного винта LBX Запасные части Обозначение ER20 SRK 3X35 JET2 SR M6X10 DIN916 ER25 SRK 3X35 JET2 SR M6X10 DIN916 ER25 SRK 4X35 JET2 SR M6X10 DIN916 ER25 SRK 6X35 JET2 SR M8X12 DIN916 ER25 SRK 8X35 JET2 SR M10X10 DIN913 ER32 SRK 3X35 JET2 SR M6X10 DIN916 ER32 SRK 3X60 JET2 SR M6X10 DIN916 ER32 SRK 4X35 JET2 SR M6X10 DIN916 ER32 SRK 4X60 JET2 SR M6X10 DIN916 ER32 SRK 4X85 JET2 SR M6X10 DIN916 ER32 SRK 5X35 JET2 SR M6X10 DIN916 ER32 SRK 5X60 JET2 SR M6X10 DIN916 ER32 SRK 5X85 JET2 SR M6X10 DIN916 ER32 SRK 6X35 JET2 SR M8X12 DIN916 ER32 SRK 6X60 JET2 SR M8X12 DIN916 ER32 SRK 6X85 JET2 SR M8X12 DIN916 ER32 SRK 8X35 JET2 SR M10X10 DIN913 ER32 SRK 8X60 JET2 SR M10X10 DIN913 ER32 SRK 8X85 JET2 SR M10X10 DIN913 ER32 SRK 10X35 JET2 SR M12X10 DIN913 ER32 SRK 10X60 JET2 SR M12X10 DIN913 ER32 SRK 10X85 JET2 SR M12X10 DIN913 ER32 SRK 12X60 JET2 SR M14X12 DIN913 ER32 SRK 12X85 JET2 SR M14X12 DIN913 1076-1077 1070-1072, 1078 bSSflkf ЦАНГОВЫЕ ПАТРОНЫ ER, SC И ПАТРОНЫ С ТЕРМОЗАЖИМОМ
