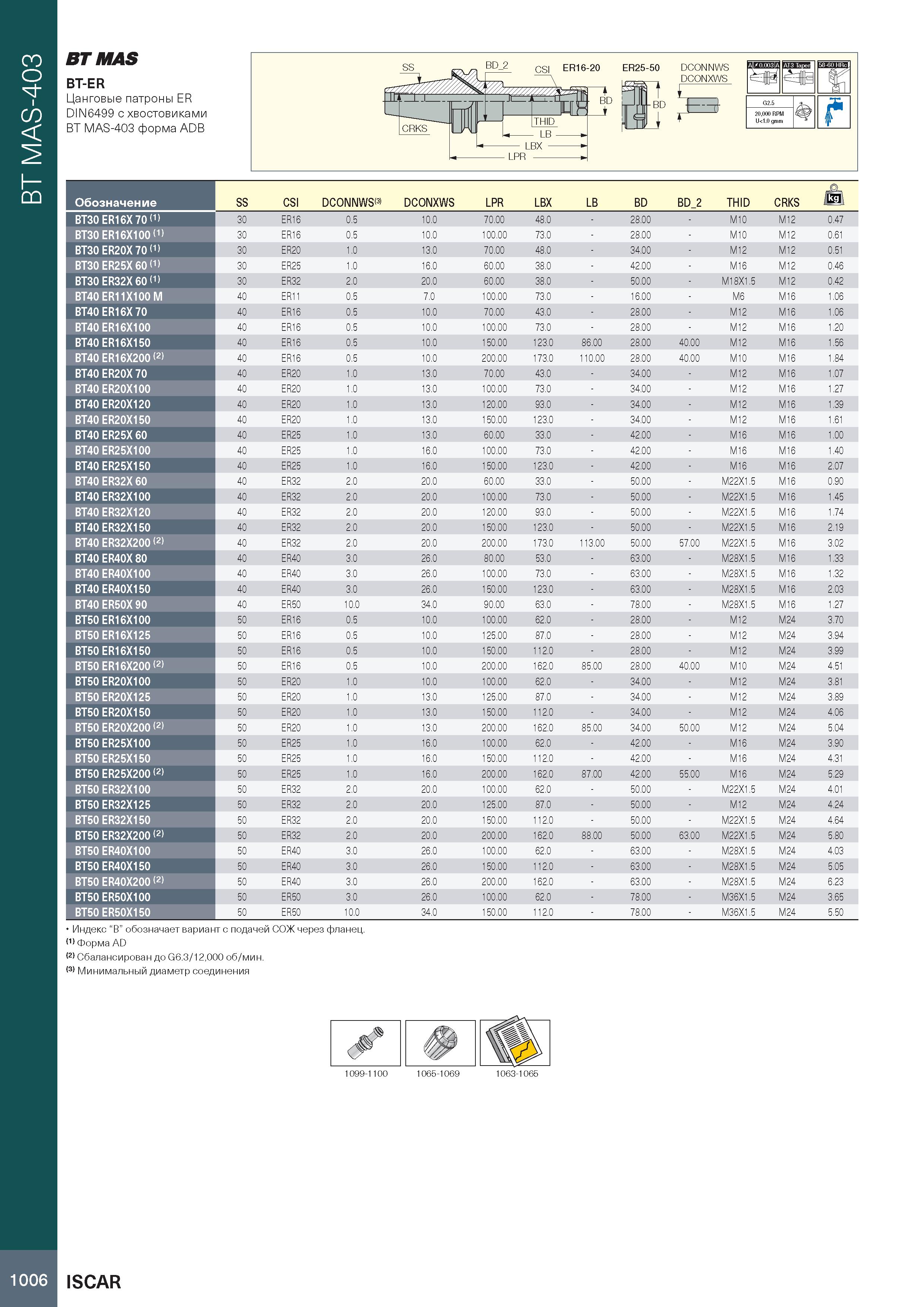

BT MAS-403 ВТ MAS BT-ER Цанговые патроны ER DIN6499 с хвостовиками BT MAS-403 форма ADB Обозначение SS CSI DCONNWS(3) DCONXWS LPR LBX LB BD BD 2 THID CRKS jkgl BT30 ER16X 70 (1) 30 ER16 0.5 10.0 70.00 48.0 28.00 M10 M12 0.47 BT30 ER16X100 (1) 30 ER16 0.5 10.0 100.00 73.0 28.00 M10 M12 0.61 BT30 ER20X 70 (1) 30 ER20 1.0 13.0 70.00 48.0 34.00 M12 M12 0.51 BT30 ER25X 60 (1) 30 ER25 1.0 16.0 60.00 38.0 42.00 M16 M12 0.46 BT30 ER32X 60 (1) 30 ER32 2.0 20.0 60.00 38.0 50.00 M18X1.5 M12 0.42 BT40 ER11X100 M 40 ER11 0.5 7.0 100.00 73.0 16.00 M6 M16 1.06 BT40 ER16X 70 40 ER16 0.5 10.0 70.00 43.0 28.00 M12 M16 1.06 BT40 ER16X100 40 ER16 0.5 10.0 100.00 73.0 28.00 M12 M16 1.20 BT40 ER16X150 40 ER16 0.5 10.0 150.00 123.0 86.00 28.00 0 О О 4 M12 M16 1.56 BT40 ER16X200 (2) 40 ER16 0.5 10.0 200.00 173.0 110.00 28.00 40.00 M10 M16 1.84 BT40 ER20X 70 40 ER20 1.0 13.0 70.00 43.0 34.00 M12 M16 1.07 BT40 ER20X100 40 ER20 1.0 13.0 100.00 73.0 34.00 M12 M16 1.27 BT40 ER20X120 40 ER20 1.0 13.0 120.00 93.0 34.00 M12 M16 1.39 BT40 ER20X150 40 ER20 1.0 13.0 150.00 123.0 34.00 M12 M16 1.61 BT40 ER25X 60 40 ER25 1.0 13.0 60.00 33.0 42.00 M16 M16 1.00 BT40 ER25X100 40 ER25 1.0 16.0 100.00 73.0 42.00 M16 M16 1.40 BT40 ER25X150 40 ER25 1.0 16.0 150.00 123.0 42.00 M16 M16 2.07 BT40 ER32X 60 40 ER32 2.0 20.0 60.00 33.0 50.00 M22X1.5 M16 0.90 BT40 ER32X100 40 ER32 2.0 20.0 100.00 73.0 50.00 M22X1.5 M16 1.45 BT40 ER32X120 40 ER32 2.0 20.0 120.00 93.0 50.00 M22X1.5 M16 1.74 BT40 ER32X150 40 ER32 2.0 20.0 150.00 123.0 50.00 M22X1.5 M16 2.19 BT40 ER32X200 (2) 40 ER32 2.0 20.0 200.00 173.0 113.00 50.00 57.00 M22X1.5 M16 3.02 BT40 ER40X 80 40 ER40 3.0 26.0 80.00 53.0 63.00 M28X1.5 M16 1.33 BT40 ER40X100 40 ER40 3.0 26.0 100.00 73.0 63.00 M28X1.5 M16 1.32 BT40 ER40X150 40 ER40 3.0 26.0 150.00 123.0 63.00 M28X1.5 M16 2.03 BT40 ER50X 90 40 ER50 10.0 34.0 90.00 63.0 78.00 M28X1.5 M16 1.27 BT50 ER16X100 50 ER16 0.5 10.0 100.00 62.0 28.00 M12 M24 3.70 BT50 ER16X125 50 ER16 0.5 10.0 125.00 87.0 28.00 M12 M24 3.94 BT50 ER16X150 50 ER16 0.5 10.0 150.00 112.0 28.00 M12 M24 3.99 BT50 ER16X200 (2) 50 ER16 0.5 10.0 200.00 162.0 85.00 28.00 40.00 M10 M24 4.51 BT50 ER20X100 50 ER20 1.0 10.0 100.00 62.0 34.00 M12 M24 3.81 BT50 ER20X125 50 ER20 1.0 13.0 125.00 87.0 34.00 M12 M24 3.89 BT50 ER20X150 50 ER20 1.0 13.0 150.00 112.0 34.00 M12 M24 4.06 BT50 ER20X200 (2) 50 ER20 1.0 13.0 200.00 162.0 85.00 34.00 50.00 M12 M24 5.04 BT50 ER25X100 50 ER25 1.0 16.0 100.00 62.0 42.00 M16 M24 3.90 BT50 ER25X150 50 ER25 1.0 16.0 150.00 112.0 42.00 M16 M24 4.31 BT50 ER25X200 (2) 50 ER25 1.0 16.0 200.00 162.0 87.00 42.00 55.00 M16 M24 5.29 BT50 ER32X100 50 ER32 2.0 20.0 100.00 62.0 50.00 M22X1.5 M24 4.01 BT50 ER32X125 50 ER32 2.0 20.0 125.00 87.0 50.00 M12 M24 4.24 BT50 ER32X150 50 ER32 2.0 20.0 150.00 112.0 50.00 M22X1.5 M24 4.64 BT50 ER32X200 (2) 50 ER32 2.0 20.0 200.00 162.0 88.00 50.00 63.00 M22X1.5 M24 5.80 BT50 ER40X100 50 ER40 3.0 26.0 100.00 62.0 63.00 M28X1.5 M24 4.03 BT50 ER40X150 50 ER40 3.0 26.0 150.00 112.0 63.00 M28X1.5 M24 5.05 BT50 ER40X200 (2) 50 ER40 3.0 26.0 200.00 162.0 63.00 M28X1.5 M24 6.23 BT50 ER50X100 50 ER50 3.0 26.0 100.00 62.0 78.00 M36X1.5 M24 3.65 BT50 ER50X150 50 ER50 10.0 34.0 150.00 112.0 78.00 M36X1.5 M24 5.50 Индекс “B” обозначает вариант с подачей СОЖ через фланец. (1) Форма AD (2) Сбалансирован до G6.3/12,000 об/мин. (3) Минимальный диаметр соединения 1099-1100 1065-1069 1063-1065 1006 ISCAR
