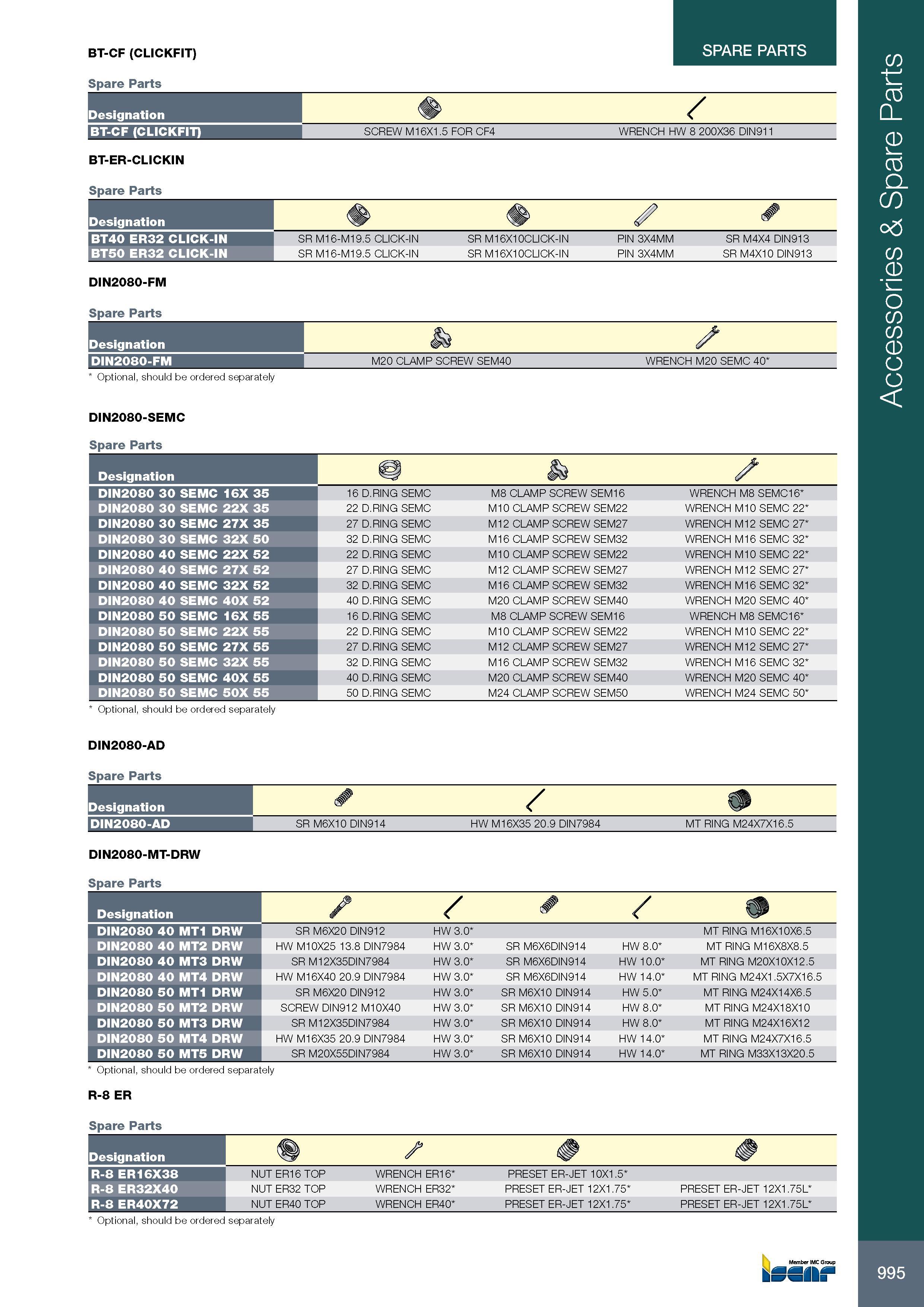

999 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.995

Каталог ISCAR 2017 Ротационный инструмент Стр. 995 0999 ENG Lab2u

SPARE PARTS -i CL 0 CP ( ) 06 co CD <5 0 o o < 995 BT-CF (CLICKFIT) Spare Parts Обозначение Designation / BT-CF (CLICKFIT) SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 BT-ER-CLICKIN Spare Parts Обозначение Designation f BT40 ER32 CLICK-IN SR M16-M19.5 CLICK-IN SR M16X10CLICK-IN PIN 3X4MM SR M4X4 DIN913 BT50 ER32 CLICK-IN SR M16-M19.5 CLICK-IN SR M16X10CLICK-IN PIN 3X4MM SR M4X10 DIN913 DIN2080-FM Spare Parts Обозначение Designation & DIN2080-FM M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40 Optional, should be ordered separately DIN2080-SEMC Spare Parts Обозначение Designation H Jfe f DIN2080 30 SEMC 16X 35 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 DIN2080 30 SEMC 22X 35 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 DIN2080 30 SEMC 27X 35 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 DIN2080 30 SEMC 32X 50 32 D.RING SEMC M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32 DIN2080 40 SEMC 22X 52 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 DIN2080 40 SEMC 27X 52 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 DIN2080 40 SEMC 32X 52 32 D.RING SEMC M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32 DIN2080 40 SEMC 40X 52 40 D.RING SEMC M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40 DIN2080 50 SEMC 16X 55 16 D.RING SEMC M8 CLAMP SCREW SEM16 WRENCH M8 SEMC16 DIN2080 50 SEMC 22X 55 22 D.RING SEMC M10 CLAMP SCREW SEM22 WRENCH M10 SEMC 22 DIN2080 50 SEMC 27X 55 27 D.RING SEMC M12 CLAMP SCREW SEM27 WRENCH M12 SEMC 27 DIN2080 50 SEMC 32X 55 32 D.RING SEMC M16 CLAMP SCREW SEM32 WRENCH M16 SEMC 32 DIN2080 50 SEMC 40X 55 40 D.RING SEMC M20 CLAMP SCREW SEM40 WRENCH M20 SEMC 40 DIN2080 50 SEMC 50X 55 50 D.RING SEMC M24 CLAMP SCREW SEM50 WRENCH M24 SEMC 50 Optional, should be ordered separately DIN2080-AD Spare Parts Обозначение Designation c / DIN2080-AD SR M6X10 DIN914 HW M16X35 20.9 DIN7984 MT RING M24X7X16.5 DIN2080-MT-DRW Spare Parts Обозначение Designation / DIN2080 40 MT1 DRW SR M6X20 DIN912 HW 3.0 MT RING M16X10X6.5 DIN2080 40 MT2 DRW HW M10X25 13.8 DIN7984 HW 3.0 SR M6X6DIN914 HW 8.0 MT RING M16X8X8.5 DIN2080 40 MT3 DRW SR M12X35DIN7984 HW 3.0 SR M6X6DIN914 HW 10.0 MT RING M20X10X12.5 DIN2080 40 MT4 DRW HW M16X40 20.9 DIN7984 HW 3.0 SR M6X6DIN914 HW 14.0 MT RING M24X1.5X7X16.5 DIN2080 50 MT1 DRW SR M6X20 DIN912 HW 3.0 SR M6X10 DIN914 HW 5.0 MT RING M24X14X6.5 DIN2080 50 MT2 DRW SCREW DIN912 M10X40 HW 3.0 SR M6X10 DIN914 HW 8.0 MT RING M24X18X10 DIN2080 50 MT3 DRW SR M12X35DIN7984 HW 3.0 SR M6X10 DIN914 HW 8.0 MT RING M24X16X12 DIN2080 50 MT4 DRW HW M16X35 20.9 DIN7984 HW 3.0 SR M6X10 DIN914 HW 14.0 MT RING M24X7X16.5 DIN2080 50 MT5 DRW SR M20X55DIN7984 HW 3.0 SR M6X10 DIN914 HW 14.0 MT RING M33X13X20.5 Optional, should be ordered separately R-8 ER Spare Parts Обозначение Designation f R-8 ER16X38 NUT ER16 TOP WRENCH ER16 PRESET ER-JET 10X1.5 R-8 ER32X40 NUT ER32 TOP WRENCH ER32 PRESET ER-JET 12X1.75 PRESET ER-JET 12X1.75L R-8 ER40X72 NUT ER40 TOP WRENCH ER40 PRESET ER-JET 12X1.75 PRESET ER-JET 12X1.75L Optional, should be ordered separately
