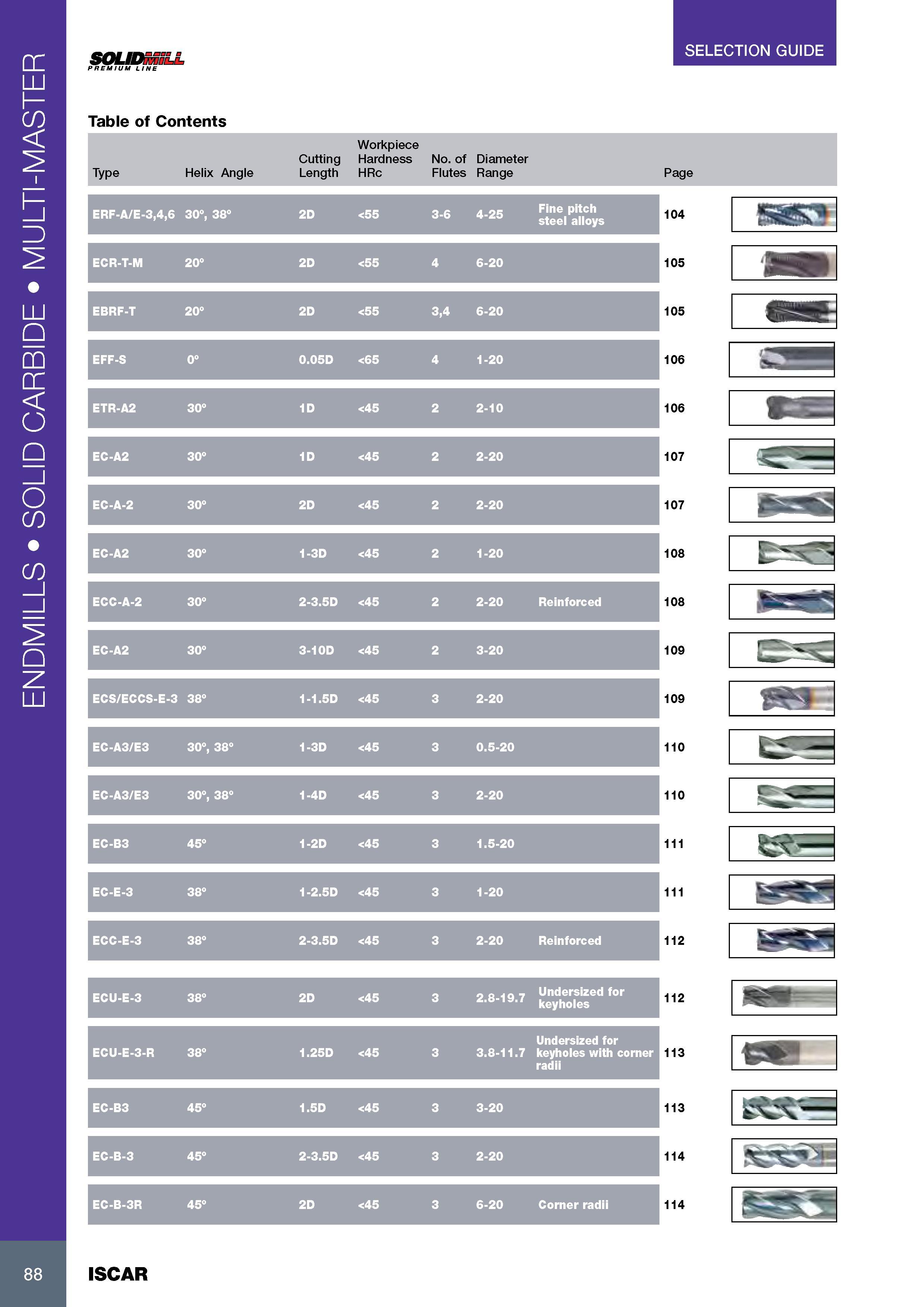

ENDMILLS SOLID CARBIDE MULTI-MASTER SELECTION GUIDE SOLIDmiLL PREMIUM LINE Table of Contents Workpiece Cutting Hardness No. of Diameter Type Helix Angle Length HRc Flutes Range Page 104 105 105 106 106 107 107 108 108 109 109 110 110 111 111 112 112 113 113 114 114 ERF-A/E-3,4,6 30°, 38° 2D <55 3-6 4-25 FtedaHoys ECR-T-M 20° 2D <55 4 6-20 EBRF-T 20° 2D <55 3,4 6-20 EFF-S 0° 0.05D <65 4 1-20 ETR-A2 30° 1D <45 2 2-10 EC-A2 30° 1D <45 2 2-20 EC-A-2 30° 2D <45 2 2-20 EC-A2 30° 1-3D <45 2 1-20 ECC-A-2 30° 2-3.5D <45 2 2-20 Reinforced EC-A2 30° 3-10D <45 3-20 ECS/ECCS-E-3 38° 1-1.5D <45 3 2-20 EC-A3/E3 30°, 38° 1-3D <45 3 0.5-20 EC-A3/E3 30°, 38° 1-4D <45 3 2-20 EC-B3 45° 1-2D <45 3 1.5-20 EC-E-3 38° 1-2.5D <45 3 1-20 ECC-E-3 38° 2-3.5D <45 3 2-20 Reinforced ECU-E-3 38° 2D <45 3 2.8-19.7 Ueyholes Undersized for ECU-E-3-R 38° 1.25D <45 3 3.8-11.7 keyholes with corner radii EC-B3 45° 1.5D <45 3-20 EC-B-3 45° 2-3.5D <45 2-20 EC-B-3R 45° 2D <45 3 6-20 Corner radii 88 ISCAR
