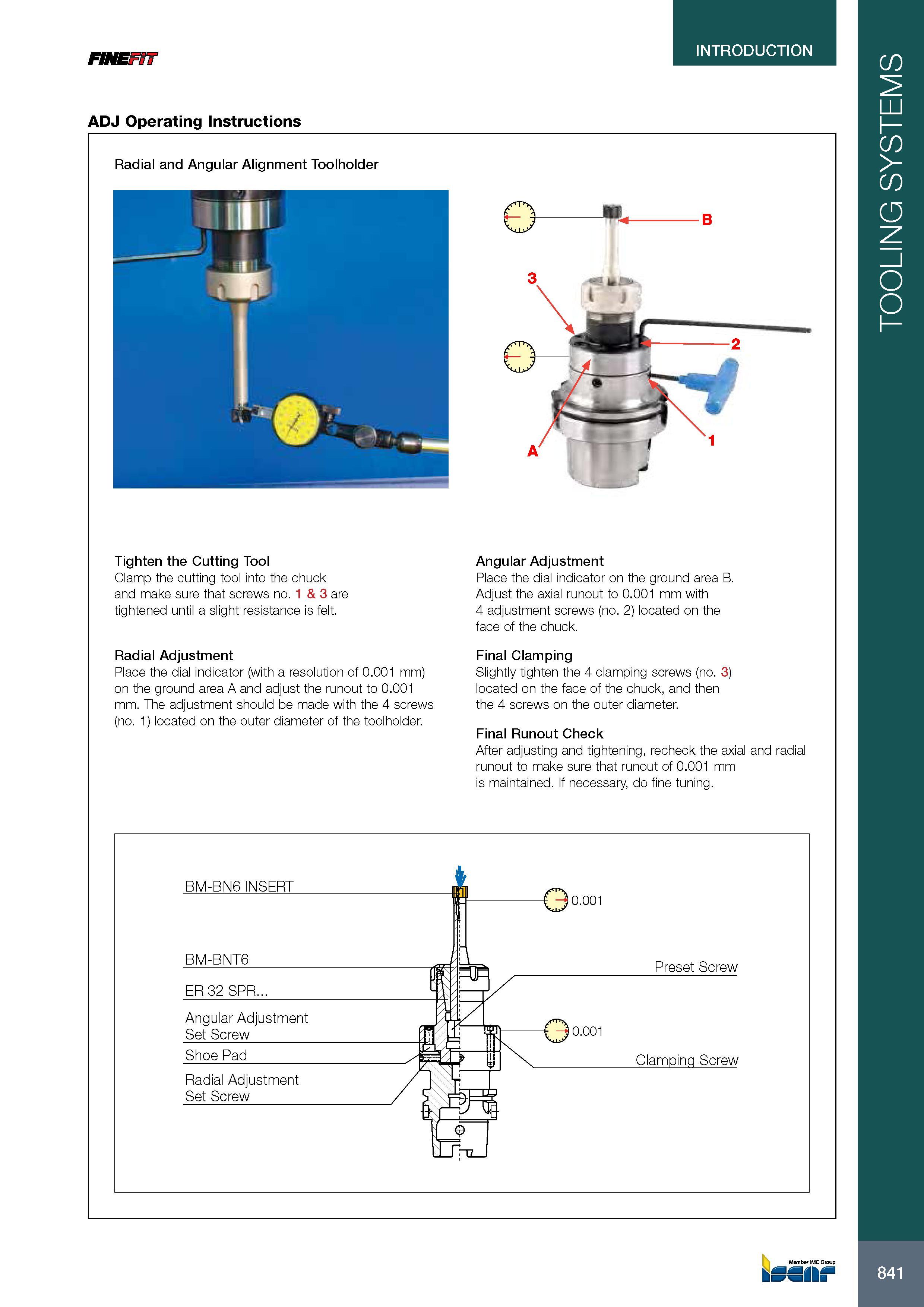

FINE INTRODUCTION ADJ Operating Instructions Radial and Angular Alignment Toolholder Tighten the Cutting Tool Clamp the cutting tool into the chuck and make sure that screws no. 1 & 3 are tightened until a slight resistance is felt. Radial Adjustment Place the dial indicator (with a resolution of 0.001 mm) on the ground area A and adjust the runout to 0.001 mm. The adjustment should be made with the 4 screws (no. 1) located on the outer diameter of the toolholder. Angular Adjustment Place the dial indicator on the ground area B. Adjust the axial runout to 0.001 mm with 4 adjustment screws (no. 2) located on the face of the chuck. Final Clamping Slightly tighten the 4 clamping screws (no. 3) located on the face of the chuck, and then the 4 screws on the outer diameter. Final Runout Check After adjusting and tightening, recheck the axial and radial runout to make sure that runout of 0.001 mm is maintained. If necessary, do fine tuning. 841 TOOLING SYSTEMS
