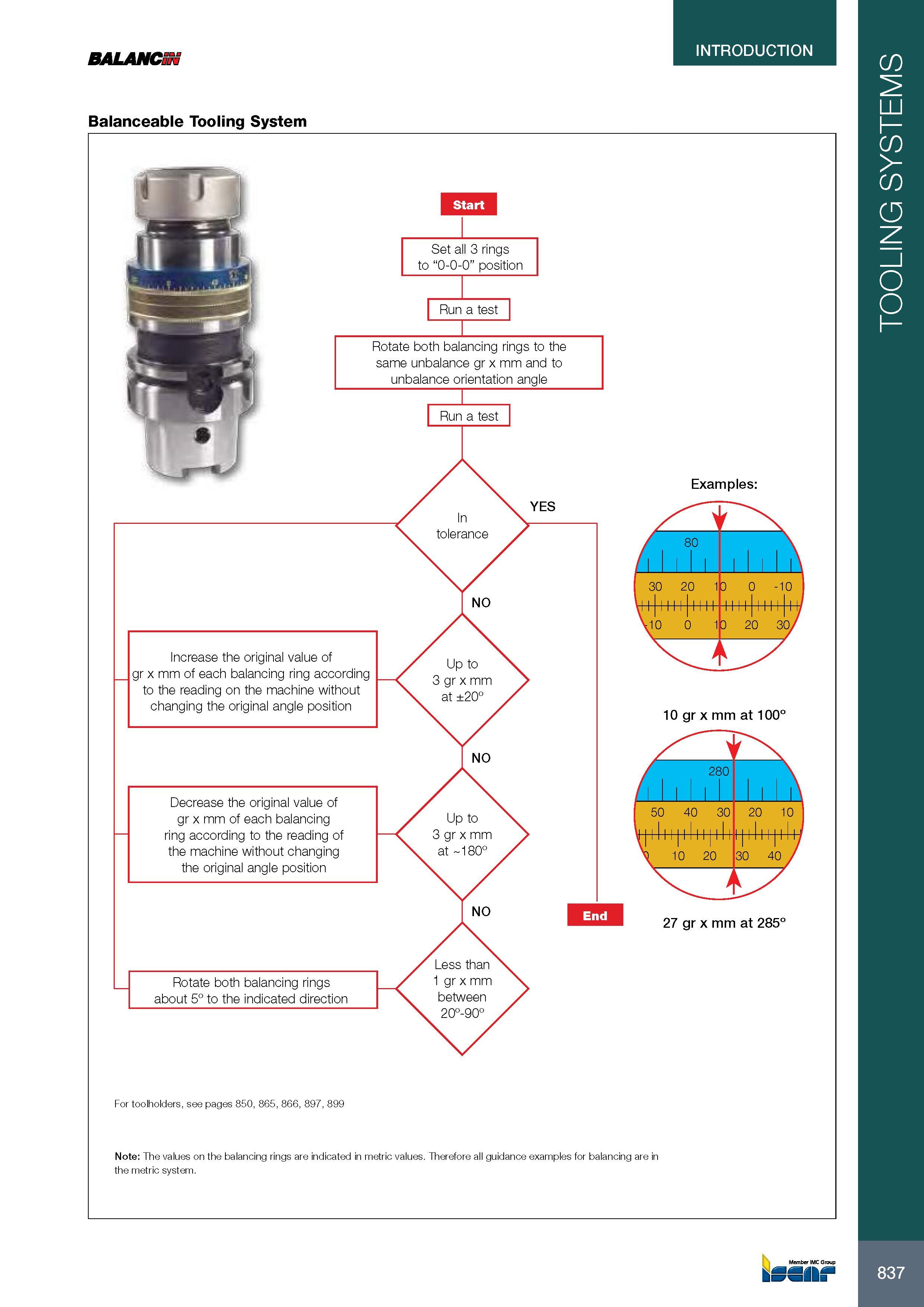

BALANCES INTRODUCTION Balanceable Tooling System Increase the original value of gr x mm of each balancing ring according to the reading on the machine without changing the original angle position Decrease the original value of gr x mm of each balancing ring according to the reading of the machine without changing the original angle position Rotate both balancing rings about 5° to the indicated direction Examples: 10 gr x mm at 100° For toolholders, see pages 850, 865, 866, 897, 899 Note: The values on the balancing rings are indicated in metric values. Therefore all guidance examples for balancing are in the metric system. Member IMC Group kSSII t TOOLING SYSTEMS
