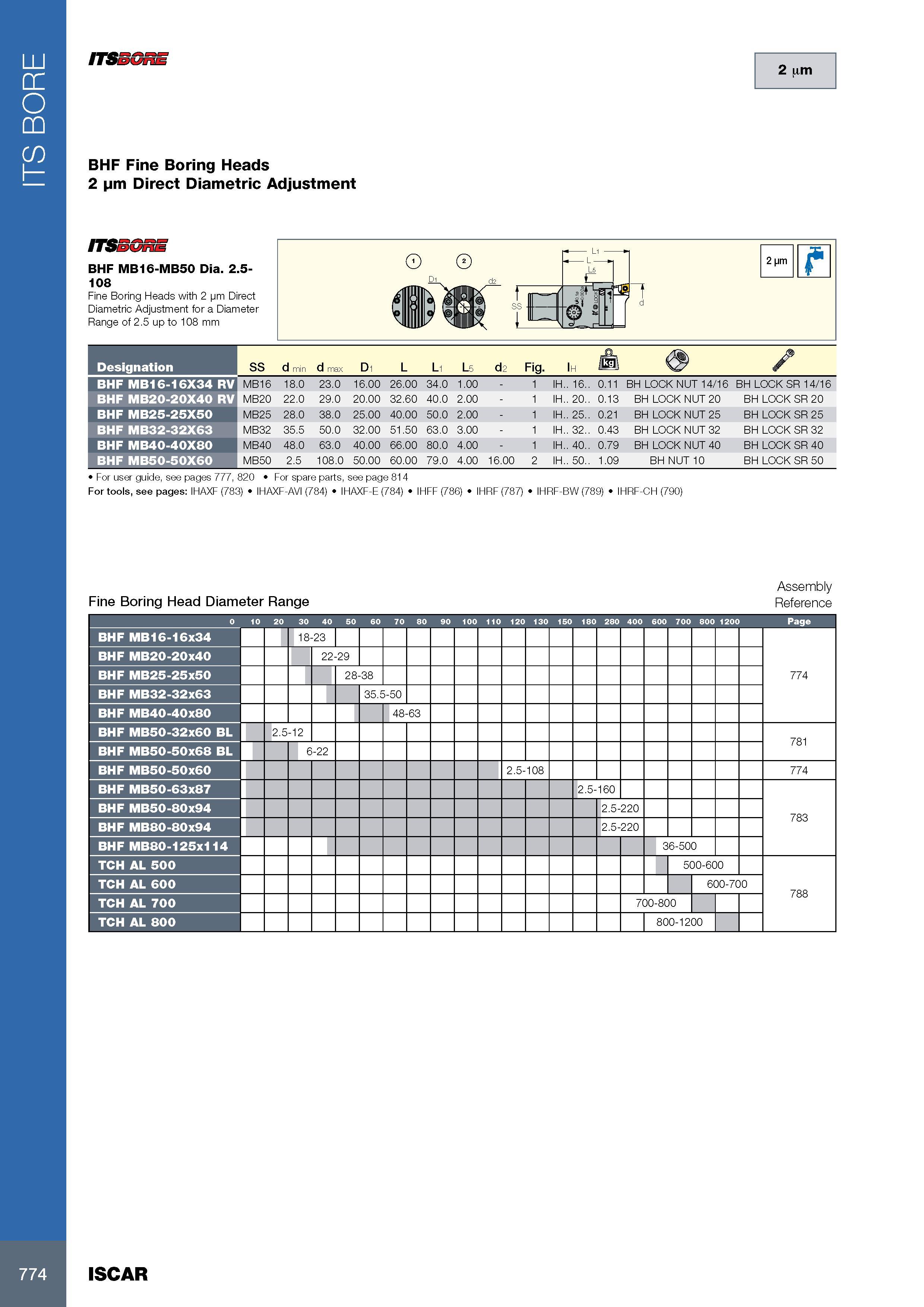

ITS BORE 774 ITSBGnE 2 urn BHF Fine Boring Heads 2 pm Direct Diametric Adjustment ITSBGnE BHF MB16-MB50 Dia. 2.5108 Fine Boring Heads with 2 pm Direct Diametric Adjustment for a Diameter Range of 2.5 up to 108 mm Обозначение Designation SS d min d max D1 L L1 L5 d2 Fig. Ih /kp / BHF MB16-16X34 RV MB16 18.0 23.0 16.00 26.00 34.0 1.00 - 1 IH.. 16.. 0.11 BH LOCK NUT 14/16 BH LOCK SR 14/16 BHF MB20-20X40 RV MB20 22.0 29.0 20.00 32.60 40.0 2.00 - 1 IH.. 20.. 0.13 BH LOCK NUT 20 BH LOCK SR 20 BHF MB25-25X50 MB25 28.0 38.0 25.00 40.00 50.0 2.00 - 1 IH.. 25.. 0.21 BH LOCK NUT 25 BH LOCK SR 25 BHF MB32-32X63 MB32 35.5 50.0 32.00 51.50 63.0 3.00 - 1 IH.. 32.. 0.43 BH LOCK NUT 32 BH LOCK SR 32 BHF MB40-40X80 MB40 48.0 63.0 40.00 66.00 80.0 4.00 - 1 IH.. 40.. 0.79 BH LOCK NUT 40 BH LOCK SR 40 BHF MB50-50X60 MB50 2.5 108.0 50.00 60.00 79.0 4.00 16.00 2 IH.. 50.. 1.09 BH NUT 10 BH LOCK SR 50 For user guide, see pages 777, 820 For spare parts, see page 814 For tools, see pages: IHAXF (783) IHAXF-AVI (784) IHAXF-E (784) IHFF (786) IHRF (787) IHRF-BW (789) IHRF-CH (790) Assembly Fine Boring Head Diameter Range Reference 0 10 20 30 40 50 60 70 80 90 100 110 120 130 150 180 280 400 600 700 800 1200 Page BHF MB16-16x34 18-23 n 774 BHF MB20-20x40 1 22-29 BHF MB25-25x50 1 28-38 BHF MB32-32x63 35.5-50 BHF MB40-40x80 48-63 BHF MB50-32x60 BL 2.5-12 781 BHF MB50-50x68 BL 6-22 BHF MB50-50x60 2.5-108 774 BHF MB50-63x87 2.5-160 783 BHF MB50-80x94 2.5-220 BHF MB80-80x94 2.5-220 BHF MB80-125x114 36-500 TCH AL 500 500-600 788 TCH AL 600 600-700 TCH AL 700 700-800 TCH AL 800 n 800-1200 ISCAR
