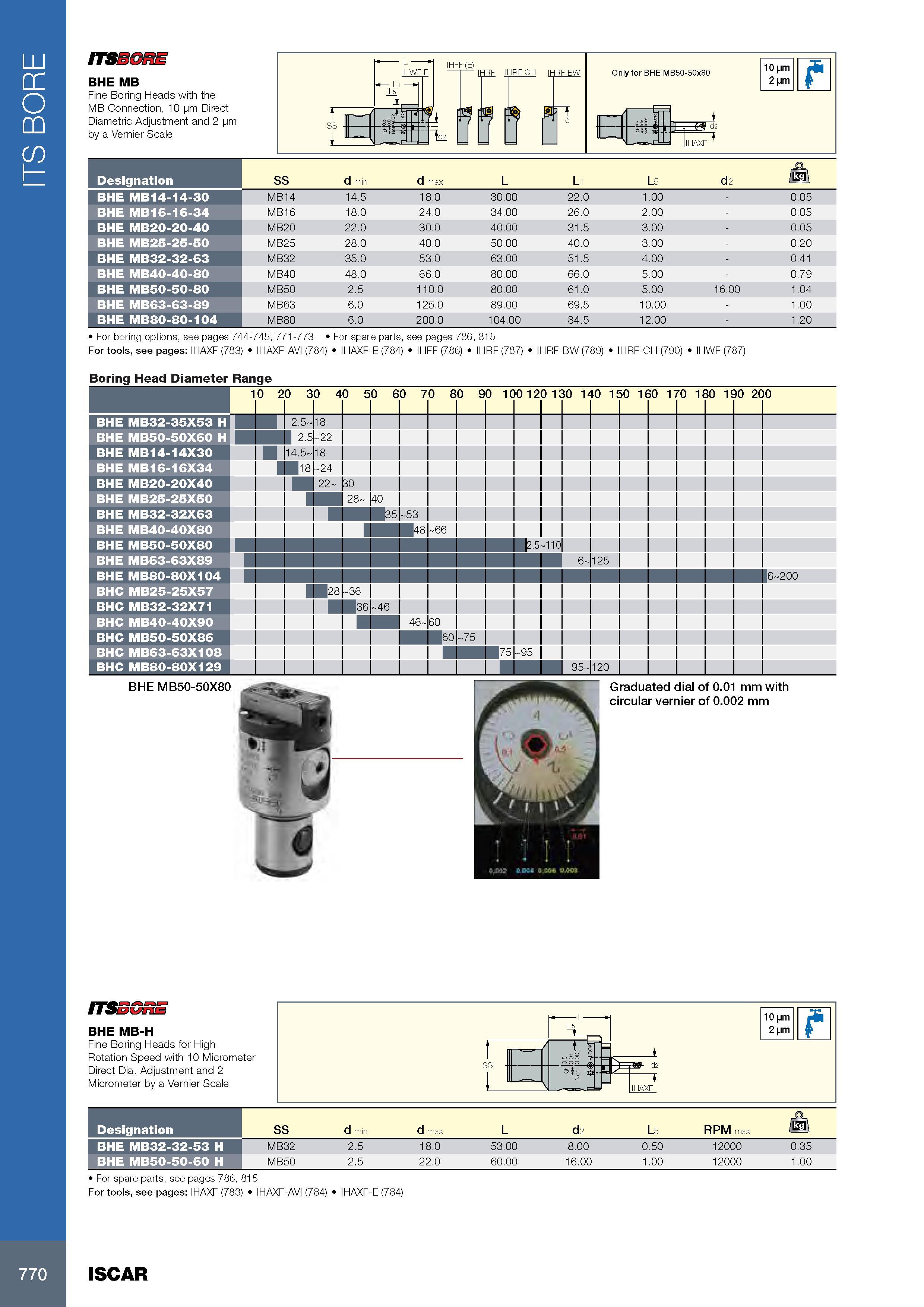

ITS BORE 770 ITSEGnE BHE MB Fine Boring Heads with the MB Connection, 10 pm Direct Diametric Adjustment and 2 pm by a Vernier Scale Обозначение Designation SS d min d max L L1 L5 d2 BHE MB14-14-30 MB14 14.5 18.0 30.00 22.0 1.00 - 0.05 BHE MB16-16-34 MB16 18.0 24.0 34.00 26.0 2.00 - 0.05 BHE MB20-20-40 MB20 22.0 30.0 40.00 31.5 3.00 - 0.05 BHE MB25-25-50 MB25 28.0 40.0 50.00 40.0 3.00 - 0.20 BHE MB32-32-63 MB32 35.0 53.0 63.00 51.5 4.00 - 0.41 BHE MB40-40-80 MB40 48.0 66.0 80.00 66.0 5.00 - 0.79 BHE MB50-50-80 MB50 2.5 110.0 80.00 61.0 5.00 16.00 1.04 BHE MB63-63-89 MB63 6.0 125.0 89.00 69.5 10.00 - 1.00 BHE MB80-80-104 MB80 6.0 200.0 104.00 84.5 12.00 - 1.20 For boring options, see pages 744-745, 771-773 For spare parts, see pages 786, 815 For tools, see pages: IHAXF (783) IHAXF-AVI (784) IHAXF-E (784) IHFF (786) IHRF (787) IHRF-BW (789) IHRF-CH (790) IHWF (787) Boring Head Diameter MB32 MB50 MB14 MB16 MB20 MB25- MB32- MB40- MB50 MB63- MB80 MB25 MB32 MB40 MB50 MB63 MB80 35X53 H 50X60 H 14X30 16X34 20X40 25X50 32X63 40X80 50X80 63X89 80X104 25X57 32X71 40X90 50X86 63X108 80X129 BHE MB50-50X80 Graduated dial of 0.01 mm with circular vernier of 0.002 mm ITSEGRE BHE MB-H Fine Boring Heads for High Rotation Speed with 10 Micrometer Direct Dia. Adjustment and 2 Micrometer by a Vernier Scale Обозначение Designation SS d min d max L d2 L5 RPM max /k BHE MB32-32-53 H MB32 2.5 18.0 53.00 8.00 0.50 12000 0.35 BHE MB50-50-60 H MB50 2.5 22.0 60.00 16.00 1.00 12000 1.00 For spare parts, see pages 786, 815 For tools, see pages: IHAXF (783) IHAXF-AVI (784) IHAXF-E (784) ISCAR Range
