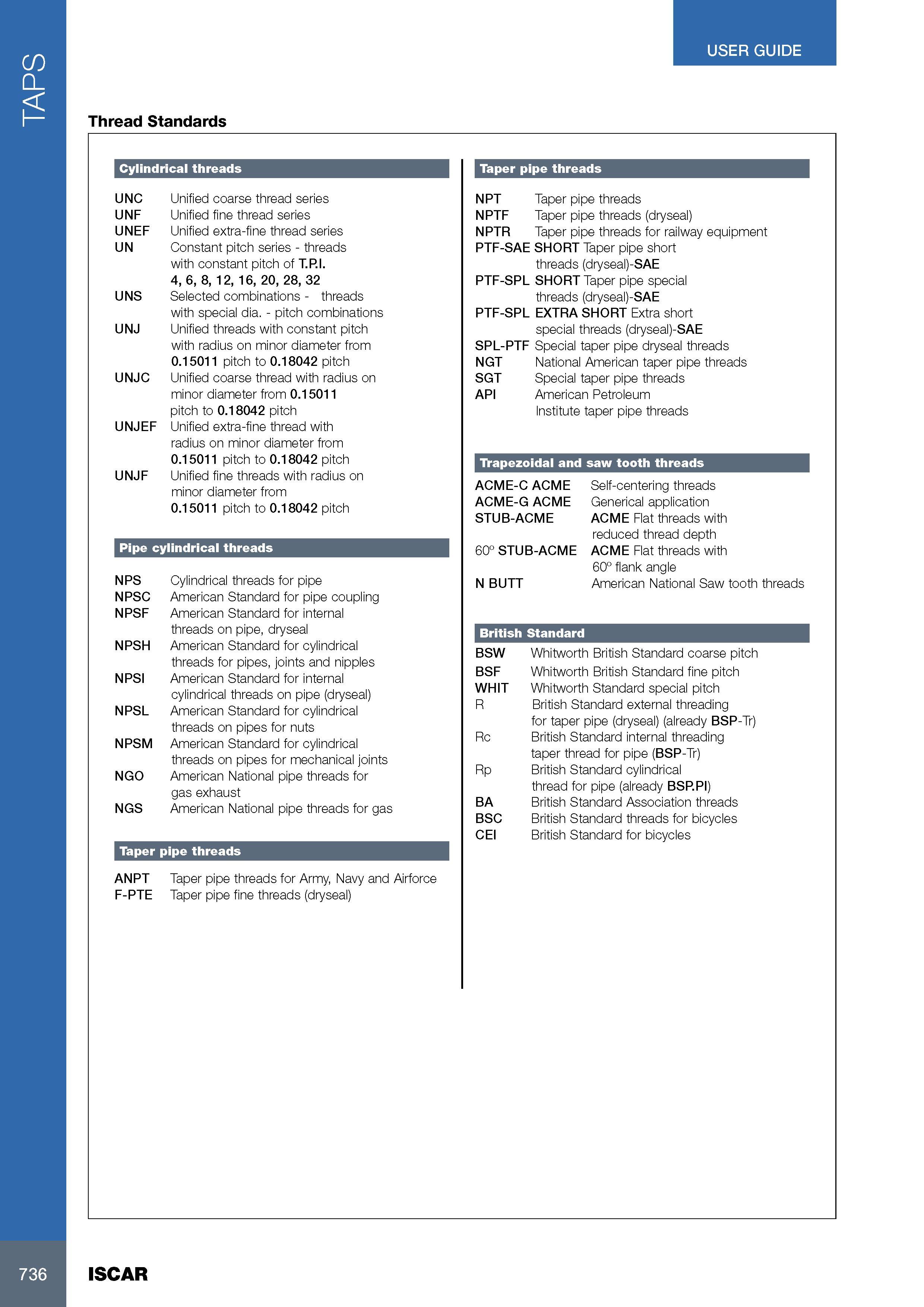

TAPS USER GUIDE Thread Standards Cylindrical threads UNC Unified coarse thread series UNF Unified fine thread series UNEF Unified extra-fine thread series UN Constant pitch series - threads with constant pitch of T.P.I. 4, 6, 8, 12, 16, 20, 28, 32 UNS Selected combinations - threads with special dia. - pitch combinations UNJ Unified threads with constant pitch with radius on minor diameter from 0.15011 pitch to 0.18042 pitch UNJC Unified coarse thread with radius on minor diameter from 0.15011 pitch to 0.18042 pitch UNJEF Unified extra-fine thread with radius on minor diameter from 0.15011 pitch to 0.18042 pitch UNJF Unified fine threads with radius on minor diameter from 0.15011 pitch to 0.18042 pitch Pipe cylindrical threads NPS Cylindrical threads for pipe NPSC American Standard for pipe coupling NPSF American Standard for internal threads on pipe, dryseal NPSH American Standard for cylindrical threads for pipes, joints and nipples NPSI American Standard for internal cylindrical threads on pipe (dryseal) NPSL American Standard for cylindrical threads on pipes for nuts NPSM American Standard for cylindrical threads on pipes for mechanical joints NGO American National pipe threads for gas exhaust NGS American National pipe threads for gas Taper pipe threads ANPT Taper pipe threads for Army, Navy and Airforce F-PTE Taper pipe fine threads (dryseal) Taper pipe threads NPT Taper pipe threads NPTF Taper pipe threads (dryseal) NPTR Taper pipe threads for railway equipment PTF-SAE SHORT Taper pipe short threads (dryseal)-SAE PTF-SPL SHORT Taper pipe special threads (dryseal)-SAE PTF-SPL EXTRA SHORT Extra short special threads (dryseal)-SAE SPL-PTF Special taper pipe dryseal threads NGT National American taper pipe threads SGT Special taper pipe threads API American Petroleum Institute taper pipe threads Trapezoidal and saw tooth threads ACME-C ACME ACME-G ACME STUB-ACME 60° STUB-ACME N BUTT Self-centering threads Generical application ACME Flat threads with reduced thread depth ACME Flat threads with 60° flank angle American National Saw tooth threads British Standard BSW Whitworth British Standard coarse pitch BSF Whitworth British Standard fine pitch WHIT Whitworth Standard special pitch R British Standard external threading for taper pipe (dryseal) (already BSP-Tr) Rc British Standard internal threading taper thread for pipe (BSP-Tr) Rp British Standard cylindrical thread for pipe (already BSP.PI) BA British Standard Association threads BSC British Standard threads for bicycles CEI British Standard for bicycles 736 ISCAR
