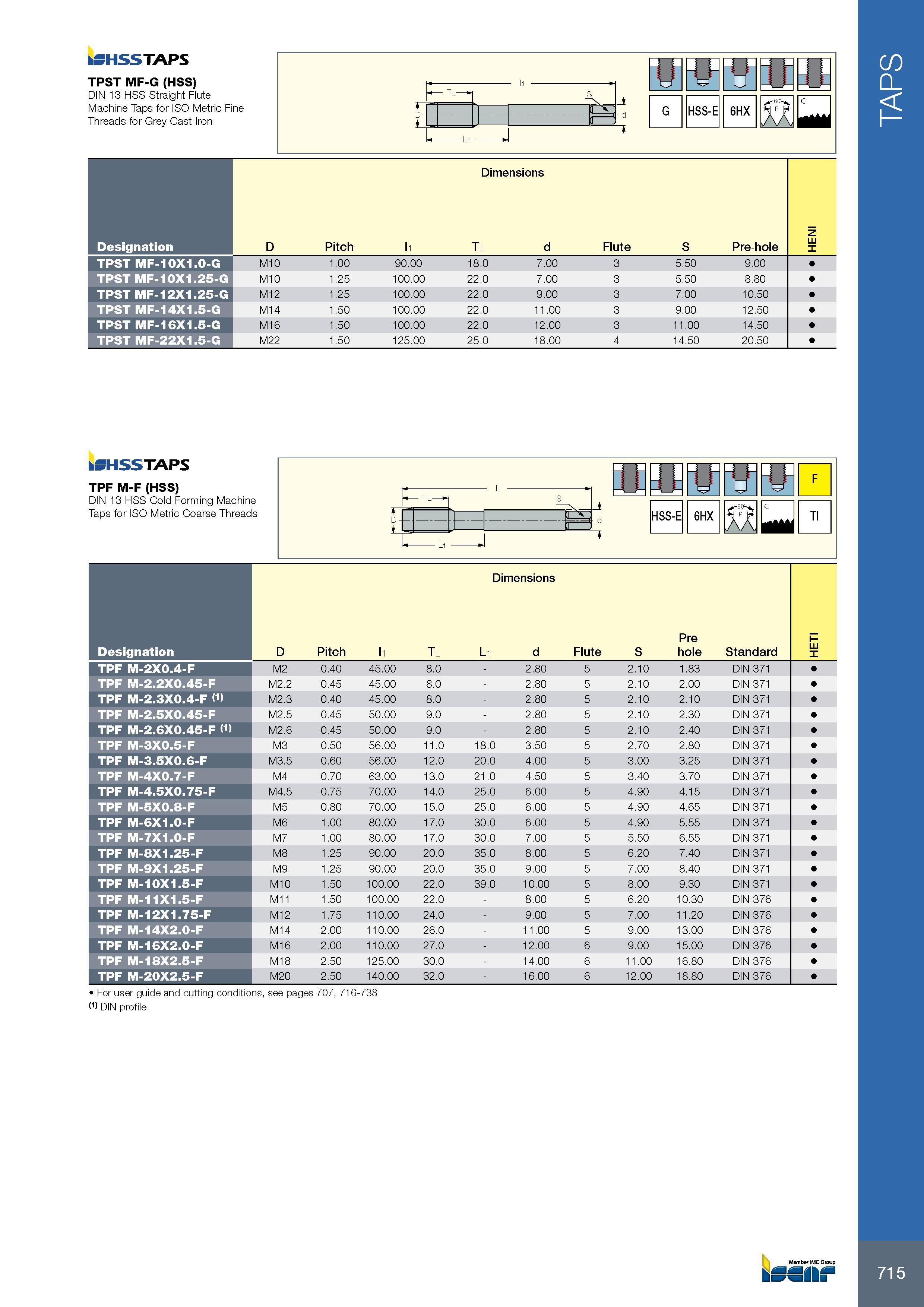

fcSHSSTAPS TPST MF-G (HSS) DIN 13 HSS Straight Flute Machine Taps for ISO Metric Fine Threads for Grey Cast Iron V t -A G HSS-E 6HX 53 C Размеры в мм Dimensions Обозначение Designation D Pitch l1 Tl d Flute S Pre-hole HENI TPST MF-10X1.0-G M10 1.00 90.00 18.0 7.00 3 5.50 9.00 TPST MF-10X1.25-G M10 1.25 100.00 22.0 7.00 3 5.50 8.80 TPST MF-12X1.25-G M12 1.25 100.00 22.0 9.00 3 7.00 10.50 TPST MF-14X1.5-G M14 1.50 100.00 22.0 11.00 3 9.00 12.50 TPST MF-16X1.5-G M16 1.50 100.00 22.0 12.00 3 11.00 14.50 TPST MF-22X1.5-G M22 1.50 125.00 25.0 18.00 4 14.50 20.50 hSHSSTAPS TPF M-F (HSS) DIN 13 HSS Cold Forming Machine Taps for ISO Metric Coarse Threads F HSS-E 6HX 56 C TI Размеры в мм Dimensions Обозначение Designation D Pitch l1 Tl L1 d Flute S Pre- hole Standard HETI TPF M-2X0.4-F M2 0.40 45.00 8.0 - 2.80 5 2.10 1.83 DIN 371 TPF M-2.2X0.45-F M2.2 0.45 45.00 8.0 - 2.80 5 2.10 2.00 DIN 371 TPF M-2.3X0.4-F (1) M2.3 0.40 45.00 8.0 - 2.80 5 2.10 2.10 DIN 371 TPF M-2.5X0.45-F M2.5 0.45 50.00 9.0 - 2.80 5 2.10 2.30 DIN 371 TPF M-2.6X0.45-F (1) M2.6 0.45 50.00 9.0 - 2.80 5 2.10 2.40 DIN 371 TPF M-3X0.5-F M3 0.50 56.00 11.0 18.0 3.50 5 2.70 2.80 DIN 371 TPF M-3.5X0.6-F M3.5 0.60 56.00 12.0 20.0 4.00 5 3.00 3.25 DIN 371 TPF M-4X0.7-F M4 0.70 63.00 13.0 21.0 4.50 5 3.40 3.70 DIN 371 TPF M-4.5X0.75-F M4.5 0.75 70.00 14.0 25.0 6.00 5 4.90 4.15 DIN 371 TPF M-5X0.8-F M5 0.80 70.00 15.0 25.0 6.00 5 4.90 4.65 DIN 371 TPF M-6X1.0-F M6 1.00 80.00 17.0 30.0 6.00 5 4.90 5.55 DIN 371 TPF M-7X1.0-F M7 1.00 80.00 17.0 30.0 7.00 5 5.50 6.55 DIN 371 TPF M-8X1.25-F M8 1.25 90.00 20.0 35.0 8.00 5 6.20 7.40 DIN 371 TPF M-9X1.25-F M9 1.25 90.00 20.0 35.0 9.00 5 7.00 8.40 DIN 371 TPF M-10X1.5-F M10 1.50 100.00 22.0 39.0 10.00 5 8.00 9.30 DIN 371 TPF M-11X1.5-F M11 1.50 100.00 22.0 - 8.00 5 6.20 10.30 DIN 376 TPF M-12X1.75-F M12 1.75 110.00 24.0 - 9.00 5 7.00 11.20 DIN 376 TPF M-14X2.0-F M14 2.00 110.00 26.0 - 11.00 5 9.00 13.00 DIN 376 TPF M-16X2.0-F M16 2.00 110.00 27.0 - 12.00 6 9.00 15.00 DIN 376 TPF M-18X2.5-F M18 2.50 125.00 30.0 - 14.00 6 11.00 16.80 DIN 376 TPF M-20X2.5-F M20 2.50 140.00 32.0 - 16.00 6 12.00 18.80 DIN 376 For user guide and cutting conditions, see pages 707, 716-738 (1) DIN profile Member IMC Group kSSII t TAPS
