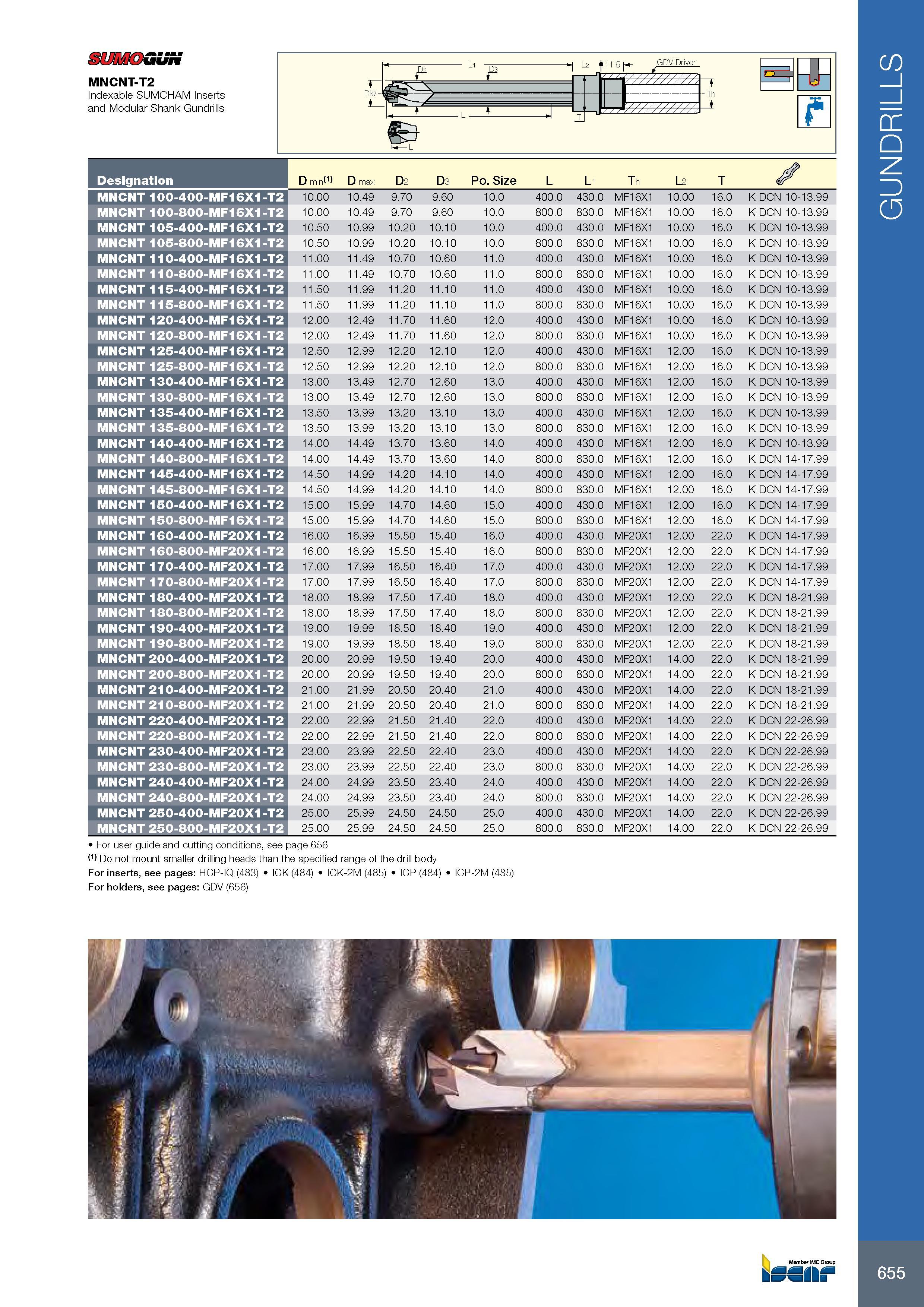

SUMOGUN MNCNT-T2 Indexable SUMCHAM Inserts and Modular Shank Gundrills t".5i- Обозначение Designation D min(1) D max D2 D3 Po. Size L L1 Th L2 T MNCNT 100-400-MF16X1-T2 10.00 10.49 9.70 9.60 10.0 400.0 430.0 MF16X1 10.00 16.0 K DCN 10-13.99 MNCNT 100-800-MF16X1-T2 10.00 10.49 9.70 9.60 10.0 800.0 830.0 MF16X1 10.00 16.0 K DCN 10-13.99 MNCNT 105-400-MF16X1-T2 10.50 10.99 10.20 10.10 10.0 400.0 430.0 MF16X1 10.00 16.0 K DCN 10-13.99 MNCNT 105-800-MF16X1-T2 10.50 10.99 10.20 10.10 10.0 800.0 830.0 MF16X1 10.00 16.0 K DCN 10-13.99 MNCNT 110-400-MF16X1-T2 11.00 11.49 10.70 10.60 11.0 400.0 430.0 MF16X1 10.00 16.0 K DCN 10-13.99 MNCNT 110-800-MF16X1-T2 11.00 11.49 10.70 10.60 11.0 800.0 830.0 MF16X1 10.00 16.0 K DCN 10-13.99 MNCNT 115-400-MF16X1-T2 11.50 11.99 11.20 11.10 11.0 400.0 430.0 MF16X1 10.00 16.0 K DCN 10-13.99 MNCNT 115-800-MF16X1-T2 11.50 11.99 11.20 11.10 11.0 800.0 830.0 MF16X1 10.00 16.0 K DCN 10-13.99 MNCNT 120-400-MF16X1-T2 12.00 12.49 11.70 11.60 12.0 400.0 430.0 MF16X1 10.00 16.0 K DCN 10-13.99 MNCNT 120-800-MF16X1-T2 12.00 12.49 11.70 11.60 12.0 800.0 830.0 MF16X1 10.00 16.0 K DCN 10-13.99 MNCNT 125-400-MF16X1-T2 12.50 12.99 12.20 12.10 12.0 400.0 430.0 MF16X1 12.00 16.0 K DCN 10-13.99 MNCNT 125-800-MF16X1-T2 12.50 12.99 12.20 12.10 12.0 800.0 830.0 MF16X1 12.00 16.0 K DCN 10-13.99 MNCNT 130-400-MF16X1-T2 13.00 13.49 12.70 12.60 13.0 400.0 430.0 MF16X1 12.00 16.0 K DCN 10-13.99 MNCNT 130-800-MF16X1-T2 13.00 13.49 12.70 12.60 13.0 800.0 830.0 MF16X1 12.00 16.0 K DCN 10-13.99 MNCNT 135-400-MF16X1-T2 13.50 13.99 13.20 13.10 13.0 400.0 430.0 MF16X1 12.00 16.0 K DCN 10-13.99 MNCNT 135-800-MF16X1-T2 13.50 13.99 13.20 13.10 13.0 800.0 830.0 MF16X1 12.00 16.0 K DCN 10-13.99 MNCNT 140-400-MF16X1-T2 14.00 14.49 13.70 13.60 14.0 400.0 430.0 MF16X1 12.00 16.0 K DCN 10-13.99 MNCNT 140-800-MF16X1-T2 14.00 14.49 13.70 13.60 14.0 800.0 830.0 MF16X1 12.00 16.0 K DCN 14-17.99 MNCNT 145-400-MF16X1-T2 14.50 14.99 14.20 14.10 14.0 400.0 430.0 MF16X1 12.00 16.0 K DCN 14-17.99 MNCNT 145-800-MF16X1-T2 14.50 14.99 14.20 14.10 14.0 800.0 830.0 MF16X1 12.00 16.0 K DCN 14-17.99 MNCNT 150-400-MF16X1-T2 15.00 15.99 14.70 14.60 15.0 400.0 430.0 MF16X1 12.00 16.0 K DCN 14-17.99 MNCNT 150-800-MF16X1-T2 15.00 15.99 14.70 14.60 15.0 800.0 830.0 MF16X1 12.00 16.0 K DCN 14-17.99 MNCNT 160-400-MF20X1-T2 16.00 16.99 15.50 15.40 16.0 400.0 430.0 MF20X1 12.00 22.0 K DCN 14-17.99 MNCNT 160-800-MF20X1-T2 16.00 16.99 15.50 15.40 16.0 800.0 830.0 MF20X1 12.00 22.0 K DCN 14-17.99 MNCNT 170-400-MF20X1-T2 17.00 17.99 16.50 16.40 17.0 400.0 430.0 MF20X1 12.00 22.0 K DCN 14-17.99 MNCNT 170-800-MF20X1-T2 17.00 17.99 16.50 16.40 17.0 800.0 830.0 MF20X1 12.00 22.0 K DCN 14-17.99 MNCNT 180-400-MF20X1-T2 18.00 18.99 17.50 17.40 18.0 400.0 430.0 MF20X1 12.00 22.0 K DCN 18-21.99 MNCNT 180-800-MF20X1-T2 18.00 18.99 17.50 17.40 18.0 800.0 830.0 MF20X1 12.00 22.0 K DCN 18-21.99 MNCNT 190-400-MF20X1-T2 19.00 19.99 18.50 18.40 19.0 400.0 430.0 MF20X1 12.00 22.0 K DCN 18-21.99 MNCNT 190-800-MF20X1-T2 19.00 19.99 18.50 18.40 19.0 800.0 830.0 MF20X1 12.00 22.0 K DCN 18-21.99 MNCNT 200-400-MF20X1-T2 20.00 20.99 19.50 19.40 20.0 400.0 430.0 MF20X1 14.00 22.0 K DCN 18-21.99 MNCNT 200-800-MF20X1-T2 20.00 20.99 19.50 19.40 20.0 800.0 830.0 MF20X1 14.00 22.0 K DCN 18-21.99 MNCNT 210-400-MF20X1-T2 21.00 21.99 20.50 20.40 21.0 400.0 430.0 MF20X1 14.00 22.0 K DCN 18-21.99 MNCNT 210-800-MF20X1-T2 21.00 21.99 20.50 20.40 21.0 800.0 830.0 MF20X1 14.00 22.0 K DCN 18-21.99 MNCNT 220-400-MF20X1-T2 22.00 22.99 21.50 21.40 22.0 400.0 430.0 MF20X1 14.00 22.0 K DCN 22-26.99 MNCNT 220-800-MF20X1-T2 22.00 22.99 21.50 21.40 22.0 800.0 830.0 MF20X1 14.00 22.0 K DCN 22-26.99 MNCNT 230-400-MF20X1-T2 23.00 23.99 22.50 22.40 23.0 400.0 430.0 MF20X1 14.00 22.0 K DCN 22-26.99 MNCNT 230-800-MF20X1-T2 23.00 23.99 22.50 22.40 23.0 800.0 830.0 MF20X1 14.00 22.0 K DCN 22-26.99 MNCNT 240-400-MF20X1-T2 24.00 24.99 23.50 23.40 24.0 400.0 430.0 MF20X1 14.00 22.0 K DCN 22-26.99 MNCNT 240-800-MF20X1-T2 24.00 24.99 23.50 23.40 24.0 800.0 830.0 MF20X1 14.00 22.0 K DCN 22-26.99 MNCNT 250-400-MF20X1-T2 25.00 25.99 24.50 24.50 25.0 400.0 430.0 MF20X1 14.00 22.0 K DCN 22-26.99 MNCNT 250-800-MF20X1-T2 25.00 25.99 24.50 24.50 25.0 800.0 830.0 MF20X1 14.00 22.0 K DCN 22-26.99 For user guide and cutting conditions, see page 656 (1) Do not mount smaller drilling heads than the specified range of the drill body For inserts, see pages: HCP-IQ (483) ICK (484) ICK-2M (485) ICP (484) ICP-2M (485) For holders, see pages: GDV (656) 655 GUNDRILLS
