629 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.625

Каталог ISCAR 2017 Ротационный инструмент Стр. 625 0629 ENG Lab2u

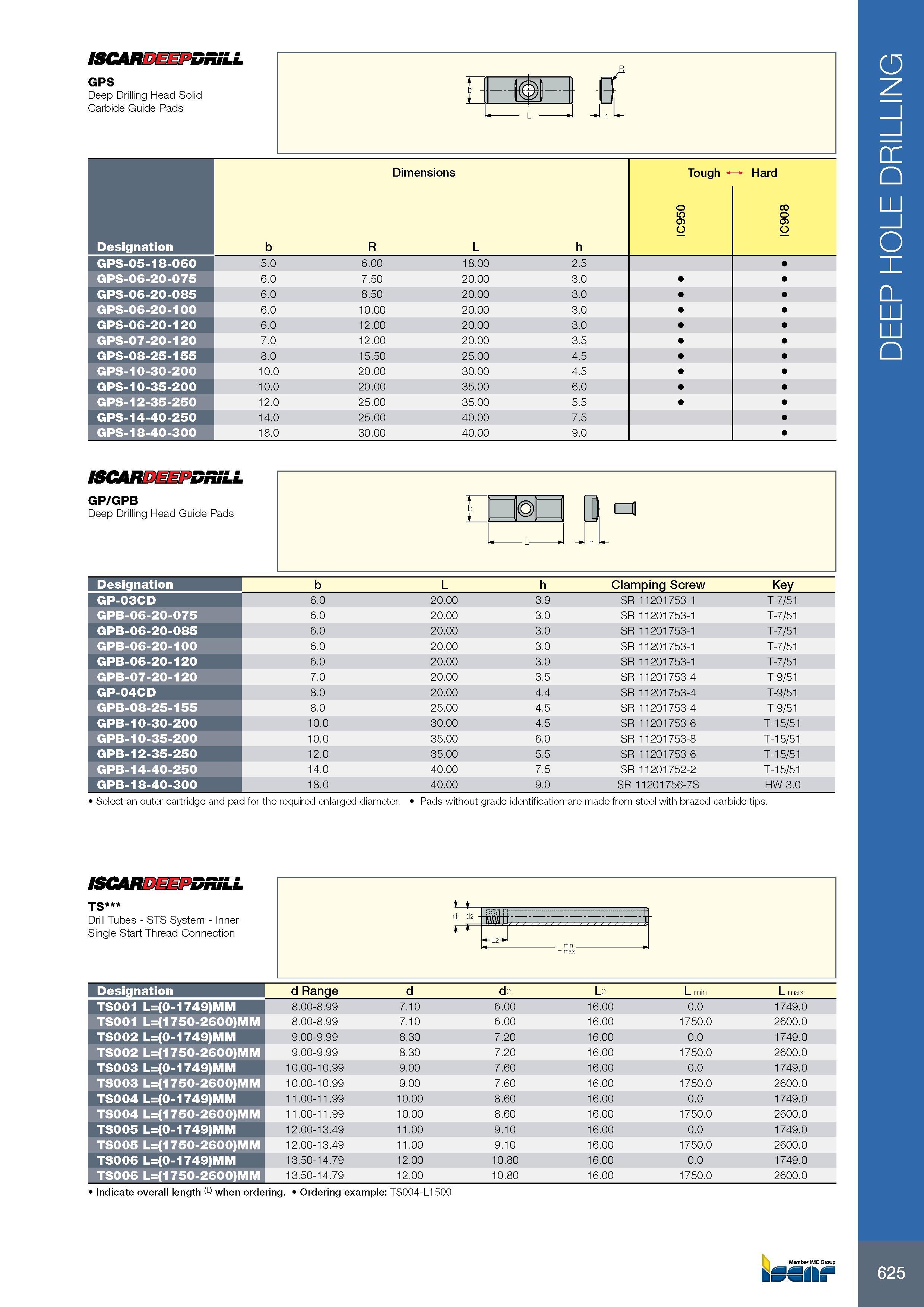

625 ISCARDEEPDRiLL GPS Deep Drilling Head Solid Carbide Guide Pads R t b - nf M JhL Размеры в мм Dimensions Tough Hard Обозначение Designation b R L h IC950 IC908 GPS-05-18-060 5.0 6.00 18.00 2.5 GPS-06-20-075 6.0 7.50 20.00 3.0 GPS-06-20-085 6.0 8.50 20.00 3.0 GPS-06-20-100 6.0 10.00 20.00 3.0 GPS-06-20-120 6.0 12.00 20.00 3.0 GPS-07-20-120 7.0 12.00 20.00 3.5 GPS-08-25-155 8.0 15.50 25.00 4.5 GPS-10-30-200 10.0 20.00 30.00 4.5 GPS-10-35-200 10.0 20.00 35.00 6.0 GPS-12-35-250 12.0 25.00 35.00 5.5 GPS-14-40-250 14.0 25.00 40.00 7.5 GPS-18-40-300 18.0 30.00 40.00 9.0 ISCARDEEPDRiLL GP/GPB Deep Drilling Head Guide Pads Обозначение Designation b L h Clamping Screw Key GP-03CD 6.0 20.00 3.9 SR 11201753-1 T-7/51 GPB-06-20-075 6.0 20.00 3.0 SR 11201753-1 T-7/51 GPB-06-20-085 6.0 20.00 3.0 SR 11201753-1 T-7/51 GPB-06-20-100 6.0 20.00 3.0 SR 11201753-1 T-7/51 GPB-06-20-120 6.0 20.00 3.0 SR 11201753-1 T-7/51 GPB-07-20-120 7.0 20.00 3.5 SR 11201753-4 T-9/51 GP-04CD 8.0 20.00 4.4 SR 11201753-4 T-9/51 GPB-08-25-155 8.0 25.00 4.5 SR 11201753-4 T-9/51 GPB-10-30-200 10.0 30.00 4.5 SR 11201753-6 T-15/51 GPB-10-35-200 10.0 35.00 6.0 SR 11201753-8 T-15/51 GPB-12-35-250 12.0 35.00 5.5 SR 11201753-6 T-15/51 GPB-14-40-250 14.0 40.00 7.5 SR 11201752-2 T-15/51 GPB-18-40-300 18.0 40.00 9.0 SR 11201756-7S HW 3.0 Select an outer cartridge and pad for the required enlarged diameter. Pads without grade identification are made from steel with brazed carbide tips. ISCARDEEPDRiLL TS Drill Tubes - STS System - Inner Single Start Thread Connection t t d d2 -L2-J L " Обозначение Designation d Range d d2 L2 L min L max TS001 L=(0-1749)MM 8.00-8.99 7.10 6.00 16.00 0.0 1749.0 TS001 L=(1750-2600)MM 8.00-8.99 7.10 6.00 16.00 1750.0 2600.0 TS002 L=(0-1749)MM 9.00-9.99 8.30 7.20 16.00 0.0 1749.0 TS002 L=(1750-2600)MM 9.00-9.99 8.30 7.20 16.00 1750.0 2600.0 TS003 L=(0-1749)MM 10.00-10.99 9.00 7.60 16.00 0.0 1749.0 TS003 L=(1750-2600)MM 10.00-10.99 9.00 7.60 16.00 1750.0 2600.0 TS004 L=(0-1749)MM 11.00-11.99 10.00 8.60 16.00 0.0 1749.0 TS004 L=(1750-2600)MM 11.00-11.99 10.00 8.60 16.00 1750.0 2600.0 TS005 L=(0-1749)MM 12.00-13.49 11.00 9.10 16.00 0.0 1749.0 TS005 L=(1750-2600)MM 12.00-13.49 11.00 9.10 16.00 1750.0 2600.0 TS006 L=(0-1749)MM 13.50-14.79 12.00 10.80 16.00 0.0 1749.0 TS006 L=(1750-2600)MM 13.50-14.79 12.00 10.80 16.00 1750.0 2600.0 Indicate overall length (L) when ordering. Ordering example: TS004-L1500 DEEP HOLE DRILLING
