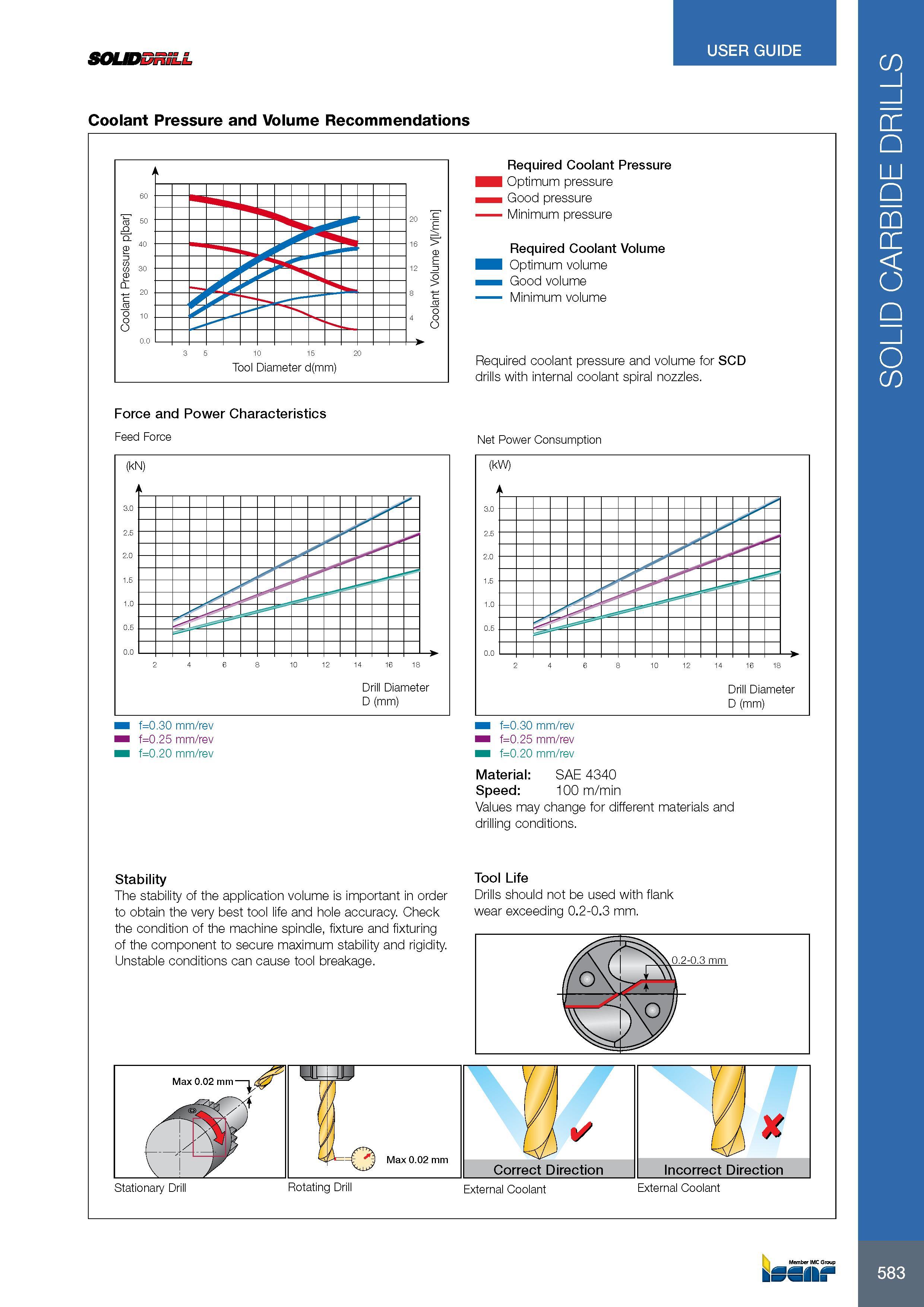

SOUDDniLL USER GUIDE Coolant Pressure and Volume Recommendations Force and Power Characteristics Feed Force f=0.25 mm/rev f=0.20 mm/rev Stability The stability of the application volume is important in order to obtain the very best tool life and hole accuracy. Check the condition of the machine spindle, fixture and fixturing of the component to secure maximum stability and rigidity. Unstable conditions can cause tool breakage. Required Coolant Pressure Optimum pressure Good pressure Minimum pressure Required Coolant Volume Optimum volume Good volume Minimum volume Required coolant pressure and volume for SCD drills with internal coolant spiral nozzles. Net Power Consumption f=0.25 mm/rev M f=0.20 mm/rev Material: SAE 4340 Speed: 100 m/min Values may change for different materials and drilling conditions. Tool Life Drills should not be used with flank wear exceeding 0.2-0.3 mm. Member IMC Group kSSII t SOLID CARBIDE DRILLS
