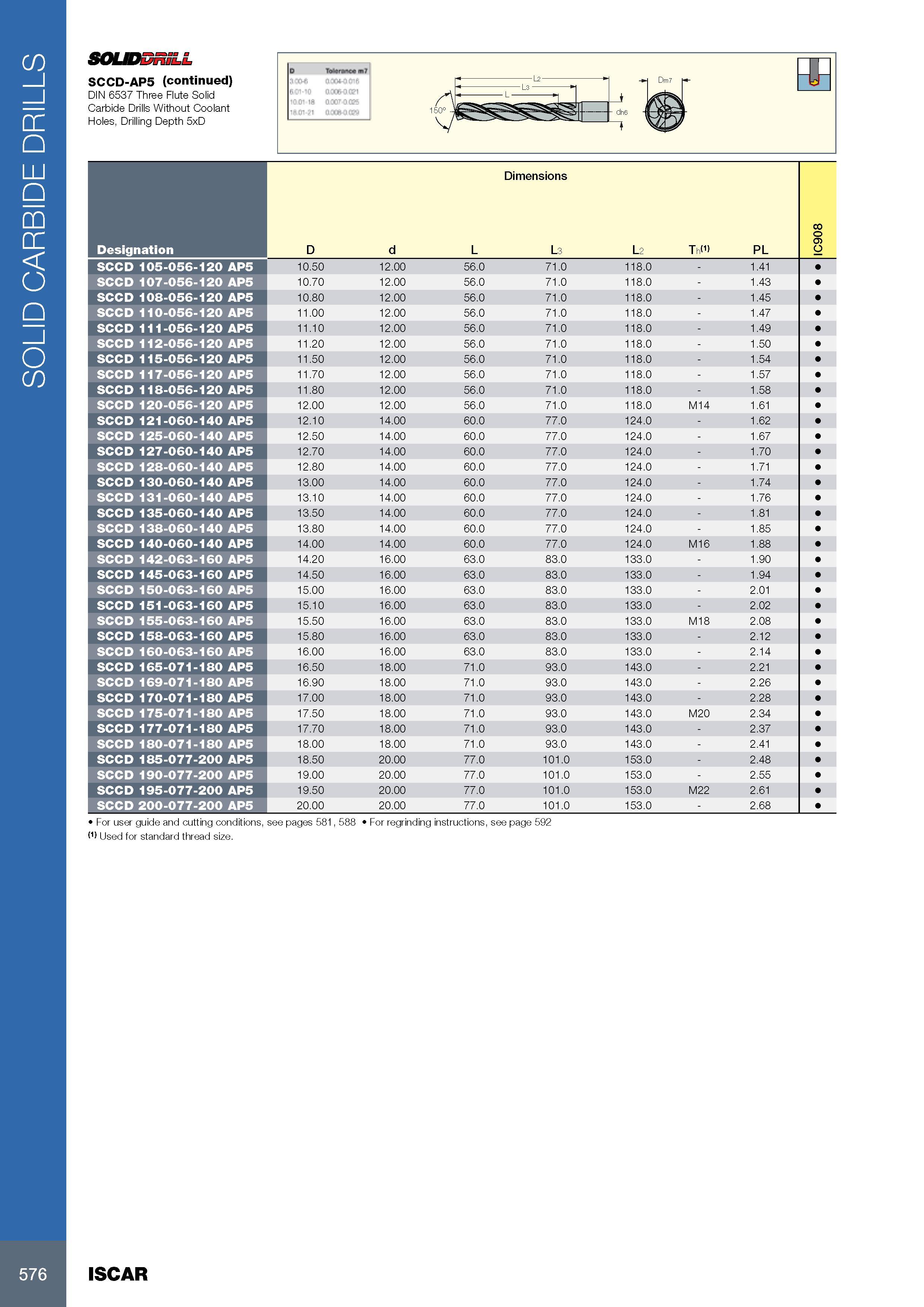

SOLID CARBIDE DRILLS SOUD SCCD-AP5 (continued) DIN 6537 Three Flute Solid Carbide Drills Without Coolant Holes, Drilling Depth 5xD Размеры в мм Dimensions Обозначение Designation D d L L3 L2 Th(1) PL IC908 SCCD 105-056-120 AP5 10.50 12.00 56.0 71.0 118.0 - 1.41 SCCD 107-056-120 AP5 10.70 12.00 56.0 71.0 118.0 - 1.43 SCCD 108-056-120 AP5 10.80 12.00 56.0 71.0 118.0 - 1.45 SCCD 110-056-120 AP5 11.00 12.00 56.0 71.0 118.0 - 1.47 SCCD 111-056-120 AP5 11.10 12.00 56.0 71.0 118.0 - 1.49 SCCD 112-056-120 AP5 11.20 12.00 56.0 71.0 118.0 - 1.50 SCCD 115-056-120 AP5 11.50 12.00 56.0 71.0 118.0 - 1.54 SCCD 117-056-120 AP5 11.70 12.00 56.0 71.0 118.0 - 1.57 SCCD 118-056-120 AP5 11.80 12.00 56.0 71.0 118.0 - 1.58 SCCD 120-056-120 AP5 12.00 12.00 56.0 71.0 118.0 M14 1.61 SCCD 121-060-140 AP5 12.10 14.00 60.0 77.0 124.0 - 1.62 SCCD 125-060-140 AP5 12.50 14.00 60.0 77.0 124.0 - 1.67 SCCD 127-060-140 AP5 12.70 14.00 60.0 77.0 124.0 - 1.70 SCCD 128-060-140 AP5 12.80 14.00 60.0 77.0 124.0 - 1.71 SCCD 130-060-140 AP5 13.00 14.00 60.0 77.0 124.0 - 1.74 SCCD 131-060-140 AP5 13.10 14.00 60.0 77.0 124.0 - 1.76 SCCD 135-060-140 AP5 13.50 14.00 60.0 77.0 124.0 - 1.81 SCCD 138-060-140 AP5 13.80 14.00 60.0 77.0 124.0 - 1.85 SCCD 140-060-140 AP5 14.00 14.00 60.0 77.0 124.0 M16 1.88 SCCD 142-063-160 AP5 14.20 16.00 63.0 83.0 133.0 - 1.90 SCCD 145-063-160 AP5 14.50 16.00 63.0 83.0 133.0 - 1.94 SCCD 150-063-160 AP5 15.00 16.00 63.0 83.0 133.0 - 2.01 SCCD 151-063-160 AP5 15.10 16.00 63.0 83.0 133.0 - 2.02 SCCD 155-063-160 AP5 15.50 16.00 63.0 83.0 133.0 M18 2.08 SCCD 158-063-160 AP5 15.80 16.00 63.0 83.0 133.0 - 2.12 SCCD 160-063-160 AP5 16.00 16.00 63.0 83.0 133.0 - 2.14 SCCD 165-071-180 AP5 16.50 18.00 71.0 93.0 143.0 - 2.21 SCCD 169-071-180 AP5 16.90 18.00 71.0 93.0 143.0 - 2.26 SCCD 170-071-180 AP5 17.00 18.00 71.0 93.0 143.0 - 2.28 SCCD 175-071-180 AP5 17.50 18.00 71.0 93.0 143.0 M20 2.34 SCCD 177-071-180 AP5 17.70 18.00 71.0 93.0 143.0 - 2.37 SCCD 180-071-180 AP5 18.00 18.00 71.0 93.0 143.0 - 2.41 SCCD 185-077-200 AP5 18.50 20.00 77.0 101.0 153.0 - 2.48 SCCD 190-077-200 AP5 19.00 20.00 77.0 101.0 153.0 - 2.55 SCCD 195-077-200 AP5 19.50 20.00 77.0 101.0 153.0 M22 2.61 SCCD 200-077-200 AP5 20.00 20.00 77.0 101.0 153.0 - 2.68 For user guide and cutting conditions, see pages 581, 588 For regrinding instructions, see page 592 (1) Used for standard thread size. 576 ISCAR
