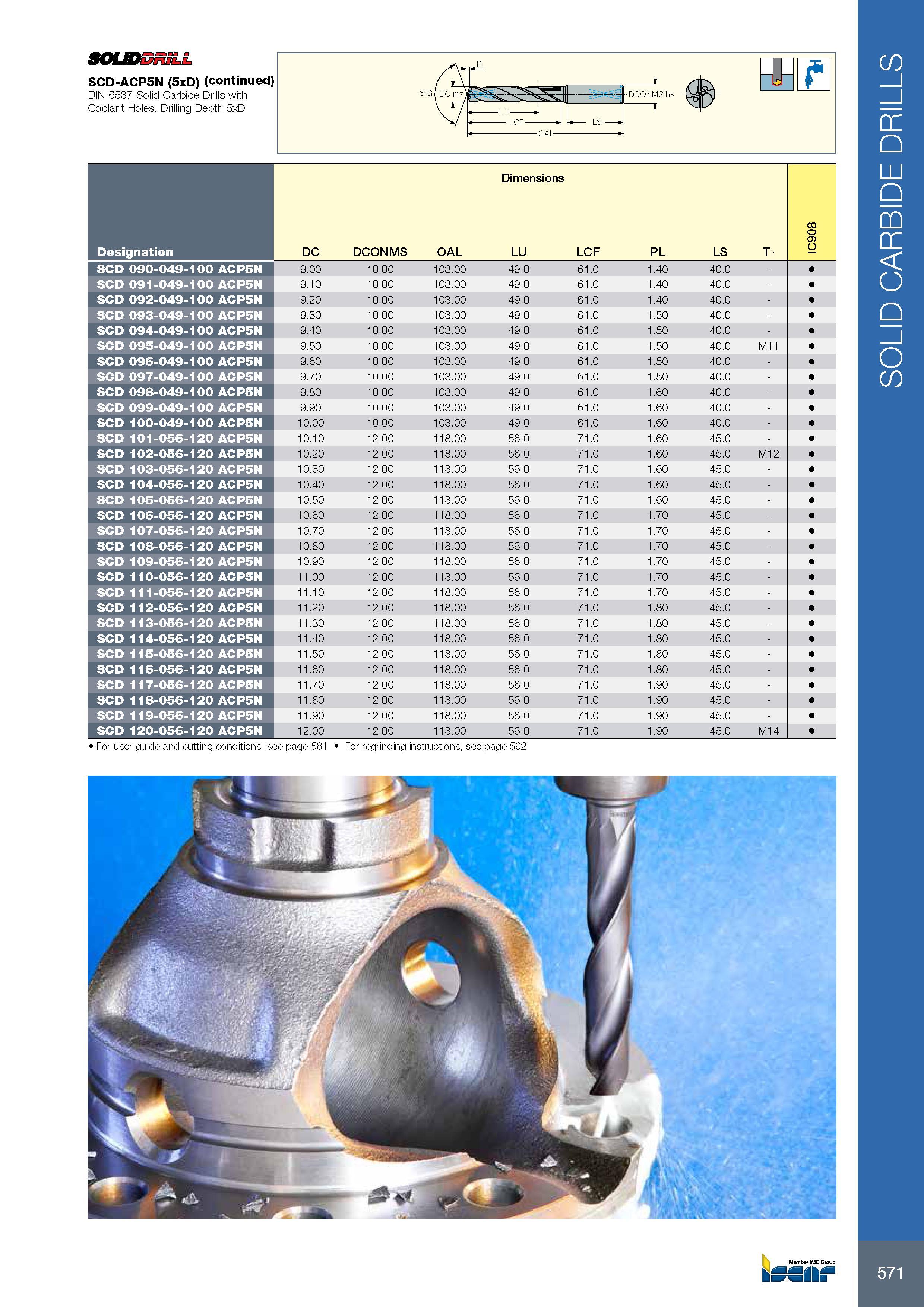

571 SOLIDDRILL SCD-ACP5N (5xD) (continued) DIN 6537 Solid Carbide Drills with Coolant Holes, Drilling Depth 5xD Размеры в мм Dimensions Обозначение Designation DC DCONMS OAL LU LCF PL LS Th IC908 SCD 090-049-100 ACP5N 9.00 10.00 103.00 49.0 61.0 1.40 40.0 - SCD 091-049-100 ACP5N 9.10 10.00 103.00 49.0 61.0 1.40 40.0 - SCD 092-049-100 ACP5N 9.20 10.00 103.00 49.0 61.0 1.40 40.0 - SCD 093-049-100 ACP5N 9.30 10.00 103.00 49.0 61.0 1.50 40.0 - SCD 094-049-100 ACP5N 9.40 10.00 103.00 49.0 61.0 1.50 40.0 - SCD 095-049-100 ACP5N 9.50 10.00 103.00 49.0 61.0 1.50 40.0 M11 SCD 096-049-100 ACP5N 9.60 10.00 103.00 49.0 61.0 1.50 40.0 - SCD 097-049-100 ACP5N 9.70 10.00 103.00 49.0 61.0 1.50 40.0 - SCD 098-049-100 ACP5N 9.80 10.00 103.00 49.0 61.0 1.60 40.0 - SCD 099-049-100 ACP5N 9.90 10.00 103.00 49.0 61.0 1.60 40.0 - SCD 100-049-100 ACP5N 10.00 10.00 103.00 49.0 61.0 1.60 40.0 - SCD 101-056-120 ACP5N 10.10 12.00 118.00 56.0 71.0 1.60 45.0 - SCD 102-056-120 ACP5N 10.20 12.00 118.00 56.0 71.0 1.60 45.0 M12 SCD 103-056-120 ACP5N 10.30 12.00 118.00 56.0 71.0 1.60 45.0 - SCD 104-056-120 ACP5N 10.40 12.00 118.00 56.0 71.0 1.60 45.0 - SCD 105-056-120 ACP5N 10.50 12.00 118.00 56.0 71.0 1.60 45.0 - SCD 106-056-120 ACP5N 10.60 12.00 118.00 56.0 71.0 1.70 45.0 - SCD 107-056-120 ACP5N 10.70 12.00 118.00 56.0 71.0 1.70 45.0 - SCD 108-056-120 ACP5N 10.80 12.00 118.00 56.0 71.0 1.70 45.0 - SCD 109-056-120 ACP5N 10.90 12.00 118.00 56.0 71.0 1.70 45.0 - SCD 110-056-120 ACP5N 11.00 12.00 118.00 56.0 71.0 1.70 45.0 - SCD 111-056-120 ACP5N 11.10 12.00 118.00 56.0 71.0 1.70 45.0 - SCD 112-056-120 ACP5N 11.20 12.00 118.00 56.0 71.0 1.80 45.0 - SCD 113-056-120 ACP5N 11.30 12.00 118.00 56.0 71.0 1.80 45.0 - SCD 114-056-120 ACP5N 11.40 12.00 118.00 56.0 71.0 1.80 45.0 - SCD 115-056-120 ACP5N 11.50 12.00 118.00 56.0 71.0 1.80 45.0 - SCD 116-056-120 ACP5N 11.60 12.00 118.00 56.0 71.0 1.80 45.0 - SCD 117-056-120 ACP5N 11.70 12.00 118.00 56.0 71.0 1.90 45.0 - SCD 118-056-120 ACP5N 11.80 12.00 118.00 56.0 71.0 1.90 45.0 - SCD 119-056-120 ACP5N 11.90 12.00 118.00 56.0 71.0 1.90 45.0 - SCD 120-056-120 ACP5N 12.00 12.00 118.00 56.0 71.0 1.90 45.0 M14 For user guide and cutting conditions, see page 581 For regrinding instructions, see page 592 SOLID CARBIDE DRILLS
