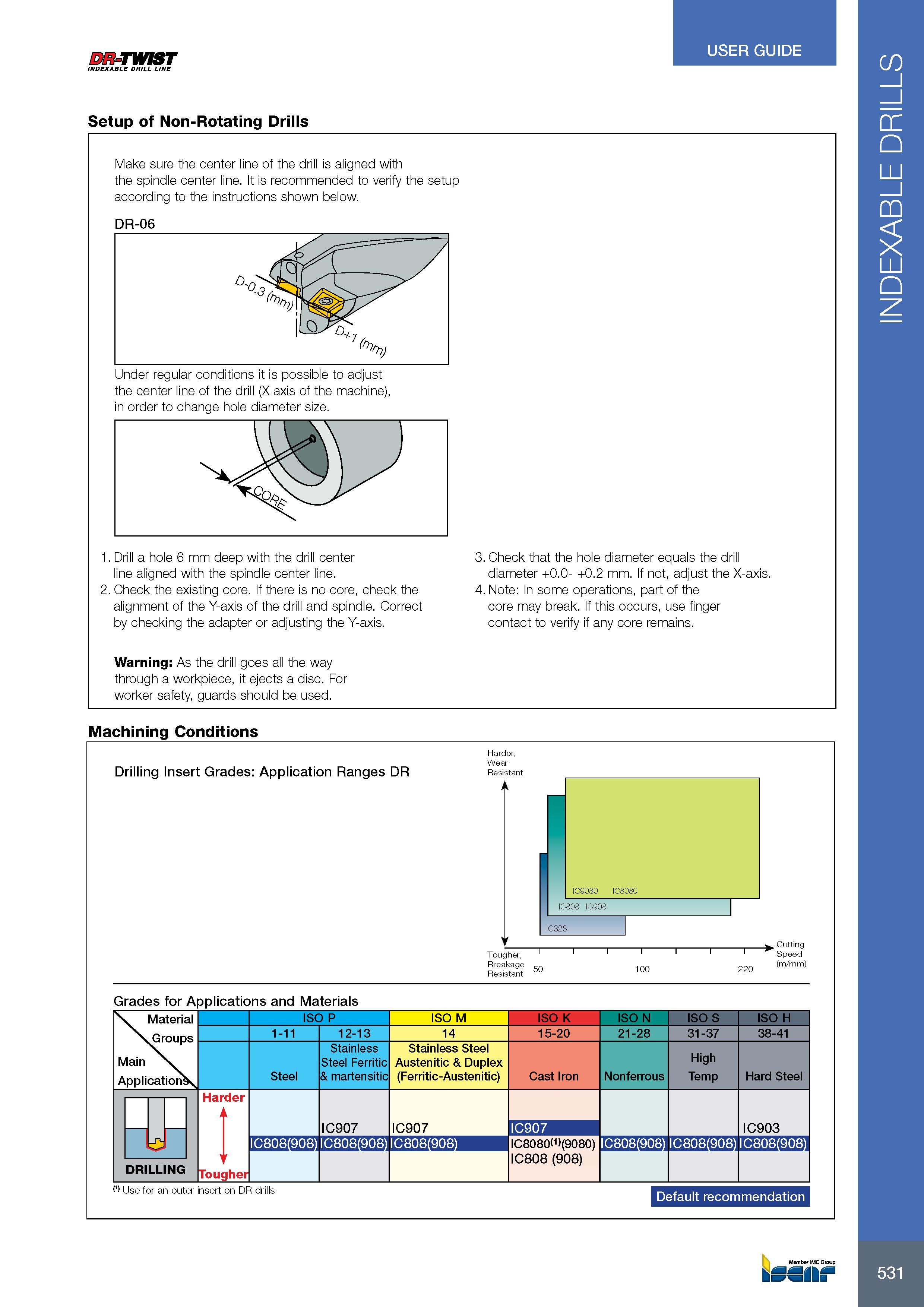

DR-TWIST INDEXABLE DRILL LINE Setup of Non-Rotating Drills USER GUIDE Make sure the center line of the drill is aligned with the spindle center line. It is recommended to verify the setup according to the instructions shown below. DR-06 Under regular conditions it is possible to adjust the center line of the drill (X axis of the machine), in order to change hole diameter size. 3. Check that the hole diameter equals the drill diameter +0.0- +0.2 mm. If not, adjust the X-axis. 4. Note: In some operations, part of the core may break. If this occurs, use finger contact to verify if any core remains. Warning: As the drill goes all the way through a workpiece, it ejects a disc. For worker safety, guards should be used. 1. Drill a hole 6 mm deep with the drill center line aligned with the spindle center line. 2. Check the existing core. If there is no core, check the alignment of the Y-axis of the drill and spindle. Correct by checking the adapter or adjusting the Y-axis. Machining Conditions Drilling Insert Grades: Application Ranges DR Harder, Wear Resistant Grades for Applications and Materials Material \Groups Main N. Application ISO P ISO M ISO K ISO N ISO S ISO H 1-11 12-13 14 15-20 21-28 31-37 38-41 Steel Stainless Steel Ferritic & martensitic Stainless Steel Austenitic & Duplex (Ferritic-Austenitic) Cast Iron Nonferrous High Temp Hard Steel Harder A i r Tougher IC907 IC907 IC907 IC903 n p- n IC808(908) IC808(908) IC808(908) IC8080<1>(9080) IC808 (908) 8) 0 (9 8( 0 8 o IC808(908) IC808(908) i DRILLING (1) Use for an outer insert on DR drills Default recommendation 531 INDEXABLE DRILLS
