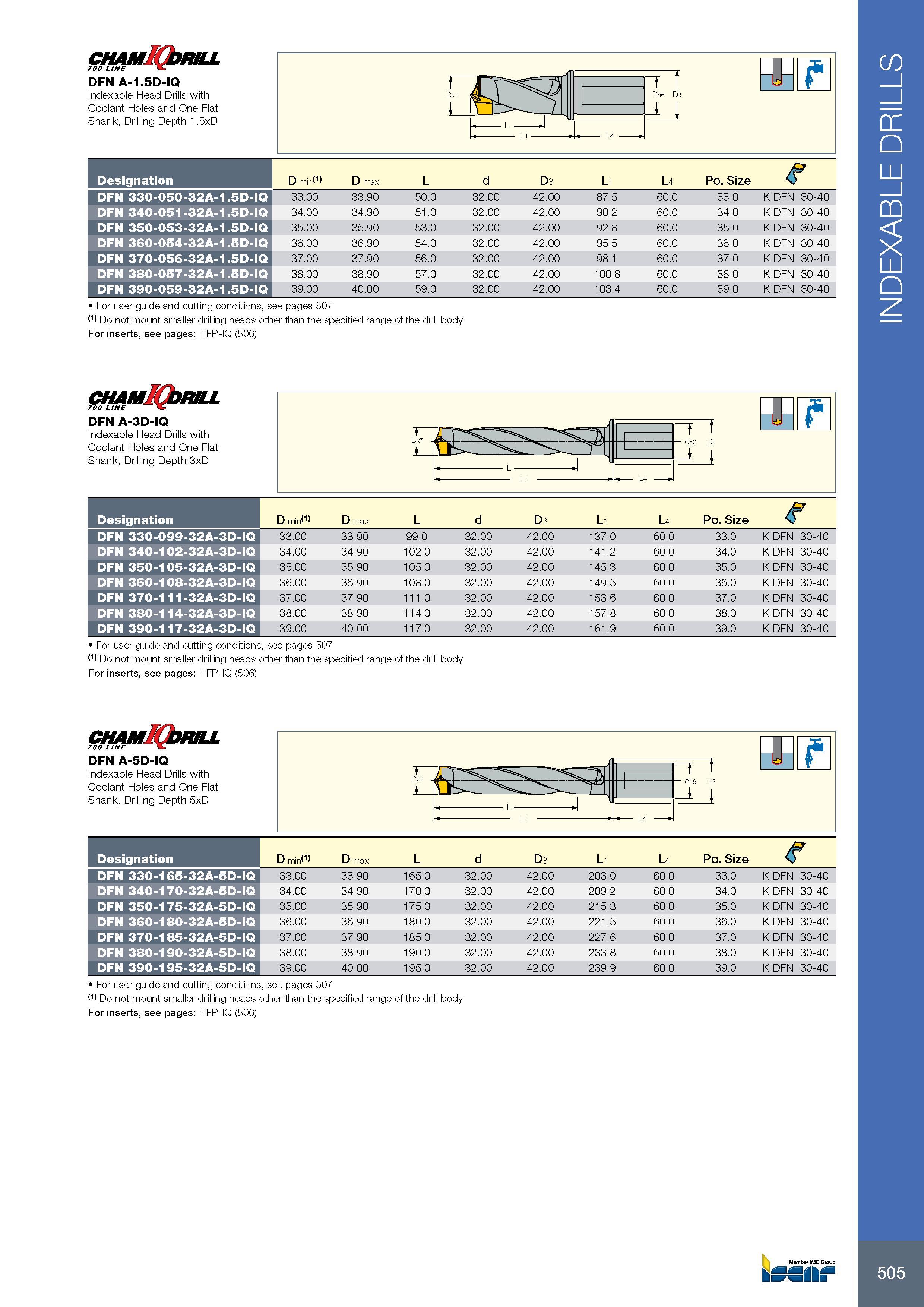

509 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.505

Каталог ISCAR 2017 Ротационный инструмент Стр. 505 0509 ENG Lab2u

chamIQ>r/ll 700 LINE DFN A-1.5D-IQ Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 1.5xD Обозначение Designation D min(1) D max L d D3 L1 L4 Po. Size t DFN 330-050-32A-1.5D-IQ 33.00 33.90 50.0 32.00 42.00 87.5 60.0 33.0 K DFN 30-40 DFN 340-051-32A-1.5D-IQ 34.00 34.90 51.0 32.00 42.00 90.2 60.0 34.0 K DFN 30-40 DFN 350-053-32A-1.5D-IQ 35.00 35.90 53.0 32.00 42.00 92.8 60.0 35.0 K DFN 30-40 DFN 360-054-32A-1.5D-IQ 36.00 36.90 54.0 32.00 42.00 95.5 60.0 36.0 K DFN 30-40 DFN 370-056-32A-1.5D-IQ 37.00 37.90 56.0 32.00 42.00 98.1 60.0 37.0 K DFN 30-40 DFN 380-057-32A-1.5D-IQ 38.00 38.90 57.0 32.00 42.00 100.8 60.0 38.0 K DFN 30-40 DFN 390-059-32A-1.5D-IQ 39.00 40.00 59.0 32.00 42.00 103.4 60.0 39.0 K DFN 30-40 For user guide and cutting conditions, see pages 507 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: HFP-IQ (506) 700 LINE DFN A-3D-IQ Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 3xD Обозначение Designation D min(1) D max L d D3 L1 L4 Po. Size DFN 330-099-32A-3D-IQ 33.00 33.90 99.0 32.00 42.00 137.0 60.0 33.0 K DFN 30-40 DFN 340-102-32A-3D-IQ 34.00 34.90 102.0 32.00 42.00 141.2 60.0 34.0 K DFN 30-40 DFN 350-105-32A-3D-IQ 35.00 35.90 105.0 32.00 42.00 145.3 60.0 35.0 K DFN 30-40 DFN 360-108-32A-3D-IQ 36.00 36.90 108.0 32.00 42.00 149.5 60.0 36.0 K DFN 30-40 DFN 370-111-32A-3D-IQ 37.00 37.90 111.0 32.00 42.00 153.6 60.0 37.0 K DFN 30-40 DFN 380-114-32A-3D-IQ 38.00 38.90 114.0 32.00 42.00 157.8 60.0 38.0 K DFN 30-40 DFN 390-117-32A-3D-IQ 39.00 40.00 117.0 32.00 42.00 161.9 60.0 39.0 K DFN 30-40 For user guide and cutting conditions, see pages 507 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: HFP-IQ (506) 700 LINE DFN A-5D-IQ Indexable Head Drills with Coolant Holes and One Flat Shank, Drilling Depth 5xD Обозначение Designation D min(1) D max L d D3 L1 L4 Po. Size DFN 330-165-32A-5D-IQ 33.00 33.90 165.0 32.00 42.00 203.0 60.0 33.0 K DFN 30-40 DFN 340-170-32A-5D-IQ 34.00 34.90 170.0 32.00 42.00 209.2 60.0 34.0 K DFN 30-40 DFN 350-175-32A-5D-IQ 35.00 35.90 175.0 32.00 42.00 215.3 60.0 35.0 K DFN 30-40 DFN 360-180-32A-5D-IQ 36.00 36.90 180.0 32.00 42.00 221.5 60.0 36.0 K DFN 30-40 DFN 370-185-32A-5D-IQ 37.00 37.90 185.0 32.00 42.00 227.6 60.0 37.0 K DFN 30-40 DFN 380-190-32A-5D-IQ 38.00 38.90 190.0 32.00 42.00 233.8 60.0 38.0 K DFN 30-40 DFN 390-195-32A-5D-IQ 39.00 40.00 195.0 32.00 42.00 239.9 60.0 39.0 K DFN 30-40 For user guide and cutting conditions, see pages 507 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: HFP-IQ (506) 505 INDEXABLE DRILLS
