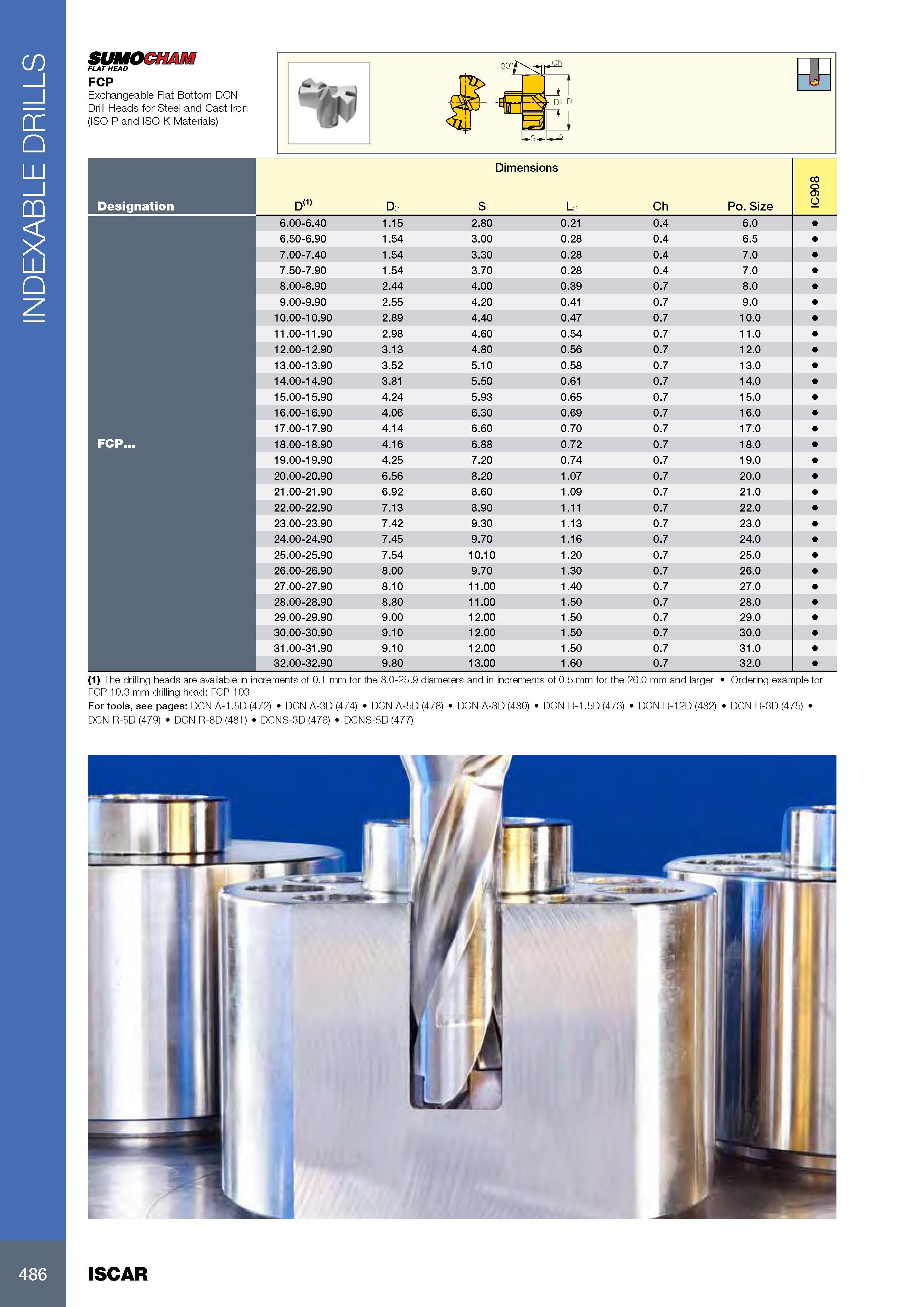

INDEXABLE DRILLS 486 SUMOCHAM FLAT HEAD FCP Exchangeable Flat Bottom DCN Drill Heads for Steel and Cast Iron (ISO P and ISO K Materials) Обозначение Designation D(1) D2 Размеры в мм Dimensions S L6 Ch Po. Size IC908 6.00-6.40 1.15 2.80 0.21 0.4 6.0 6.50-6.90 1.54 3.00 0.28 0.4 6.5 7.00-7.40 1.54 3.30 0.28 0.4 7.0 7.50-7.90 1.54 3.70 0.28 0.4 7.0 8.00-8.90 2.44 4.00 0.39 0.7 8.0 9.00-9.90 2.55 4.20 0.41 0.7 9.0 10.00-10.90 2.89 4.40 0.47 0.7 10.0 11.00-11.90 2.98 4.60 0.54 0.7 11.0 12.00-12.90 3.13 4.80 0.56 0.7 12.0 13.00-13.90 3.52 5.10 0.58 0.7 13.0 14.00-14.90 3.81 5.50 0.61 0.7 14.0 15.00-15.90 4.24 5.93 0.65 0.7 15.0 16.00-16.90 4.06 6.30 0.69 0.7 16.0 17.00-17.90 4.14 6.60 0.70 0.7 17.0 18.00-18.90 4.16 6.88 0.72 0.7 18.0 19.00-19.90 4.25 7.20 0.74 0.7 19.0 20.00-20.90 6.56 8.20 1.07 0.7 20.0 21.00-21.90 6.92 8.60 1.09 0.7 21.0 22.00-22.90 7.13 8.90 1.11 0.7 22.0 23.00-23.90 7.42 9.30 1.13 0.7 23.0 24.00-24.90 7.45 9.70 1.16 0.7 24.0 25.00-25.90 7.54 10.10 1.20 0.7 25.0 26.00-26.90 8.00 9.70 1.30 0.7 26.0 27.00-27.90 8.10 11.00 1.40 0.7 27.0 28.00-28.90 8.80 11.00 1.50 0.7 28.0 29.00-29.90 9.00 12.00 1.50 0.7 29.0 30.00-30.90 9.10 12.00 1.50 0.7 30.0 31.00-31.90 9.10 12.00 1.50 0.7 31.0 32.00-32.90 9.80 13.00 1.60 0.7 32.0 (i) The drilling heads are available in increments of 0.1 mm for the 8.0-25.9 FCP 10.3 mm drilling head: FCP 103 For tools, see pages: DCN A-1.5D (472) DCN A-3D (474) DCN A-5D DCN R-5D (479) DCN R-8D (481) DCNS-3D (476) DCNS-5D (477) diameters and in increments of 0.5 mm for the 26.0 mm and larger Ordering example for (478) DCN A-8D (480) DCN R-1.5D (473) DCN R-12D (482) DCN R-3D (475) ISCAR
