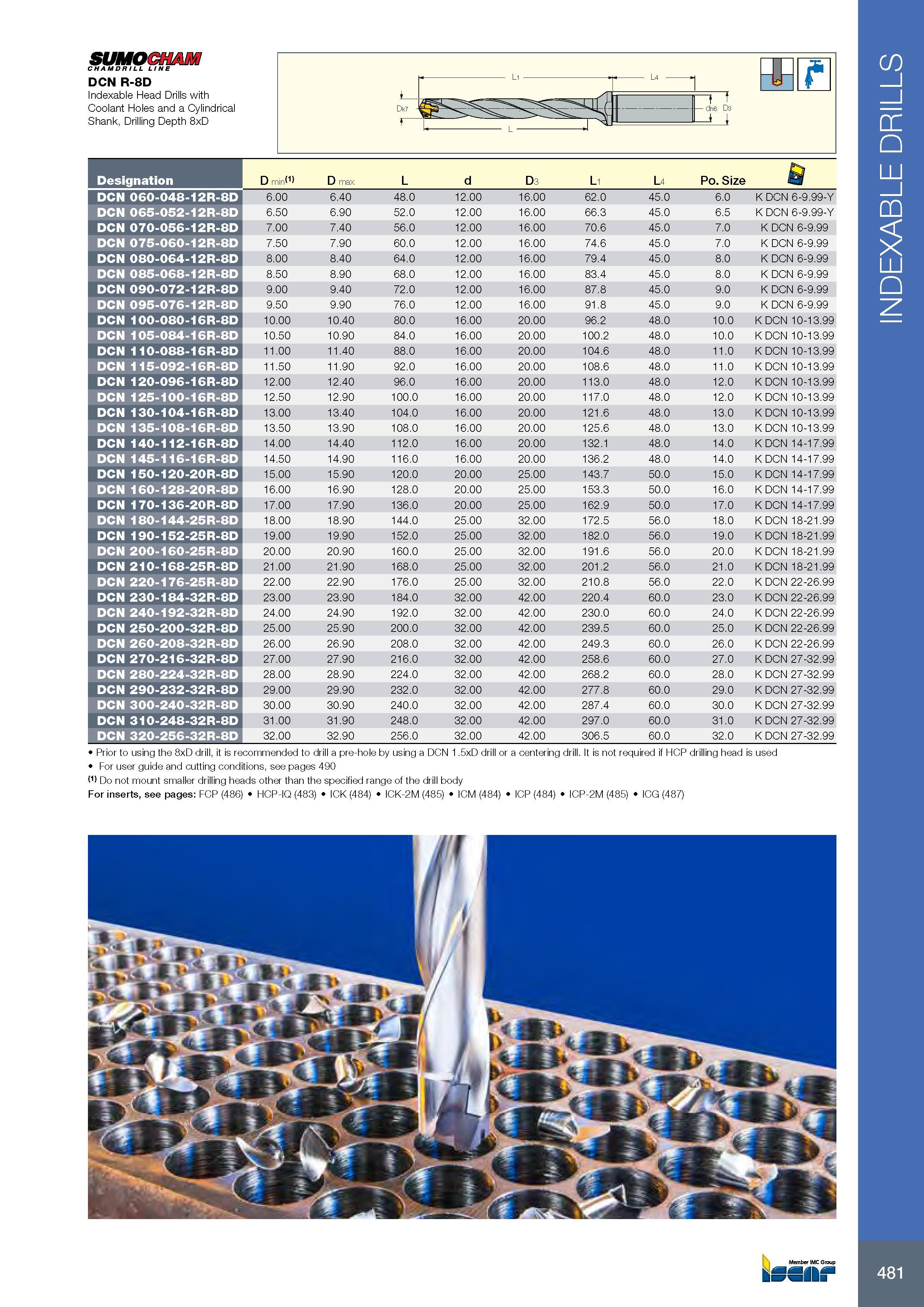

SUMOCHAM CHAMDR ILL LINE DCN R-8D Indexable Head Drills with Coolant Holes and a Cylindrical Shank, Drilling Depth 8xD i t - dh6 D3 Обозначение Designation D min(1) D max L d D3 L1 L4 Po. Size g DCN 060-048-12R-8D 6.00 6.40 48.0 12.00 16.00 62.0 45.0 6.0 K DCN 6-9.99-Y DCN 065-052-12R-8D 6.50 6.90 52.0 12.00 16.00 66.3 45.0 6.5 K DCN 6-9.99-Y DCN 070-056-12R-8D 7.00 7.40 56.0 12.00 16.00 70.6 45.0 7.0 K DCN 6-9.99 DCN 075-060-12R-8D 7.50 7.90 60.0 12.00 16.00 74.6 45.0 7.0 K DCN 6-9.99 DCN 080-064-12R-8D 8.00 8.40 64.0 12.00 16.00 79.4 45.0 8.0 K DCN 6-9.99 DCN 085-068-12R-8D 8.50 8.90 68.0 12.00 16.00 83.4 45.0 8.0 K DCN 6-9.99 DCN 090-072-12R-8D 9.00 9.40 72.0 12.00 16.00 87.8 45.0 9.0 K DCN 6-9.99 DCN 095-076-12R-8D 9.50 9.90 76.0 12.00 16.00 91.8 45.0 9.0 K DCN 6-9.99 DCN 100-080-16R-8D 10.00 10.40 80.0 16.00 20.00 96.2 48.0 10.0 K DCN 10-13.99 DCN 105-084-16R-8D 10.50 10.90 84.0 16.00 20.00 100.2 48.0 10.0 K DCN 10-13.99 DCN 110-088-16R-8D 11.00 11.40 88.0 16.00 20.00 104.6 48.0 11.0 K DCN 10-13.99 DCN 115-092-16R-8D 11.50 11.90 92.0 16.00 20.00 108.6 48.0 11.0 K DCN 10-13.99 DCN 120-096-16R-8D 12.00 12.40 96.0 16.00 20.00 113.0 48.0 12.0 K DCN 10-13.99 DCN 125-100-16R-8D 12.50 12.90 100.0 16.00 20.00 117.0 48.0 12.0 K DCN 10-13.99 DCN 130-104-16R-8D 13.00 13.40 104.0 16.00 20.00 121.6 48.0 13.0 K DCN 10-13.99 DCN 135-108-16R-8D 13.50 13.90 108.0 16.00 20.00 125.6 48.0 13.0 K DCN 10-13.99 DCN 140-112-16R-8D 14.00 14.40 112.0 16.00 20.00 132.1 48.0 14.0 K DCN 14-17.99 DCN 145-116-16R-8D 14.50 14.90 116.0 16.00 20.00 136.2 48.0 14.0 K DCN 14-17.99 DCN 150-120-20R-8D 15.00 15.90 120.0 20.00 25.00 143.7 50.0 15.0 K DCN 14-17.99 DCN 160-128-20R-8D 16.00 16.90 128.0 20.00 25.00 153.3 50.0 16.0 K DCN 14-17.99 DCN 170-136-20R-8D 17.00 17.90 136.0 20.00 25.00 162.9 50.0 17.0 K DCN 14-17.99 DCN 180-144-25R-8D 18.00 18.90 144.0 25.00 32.00 172.5 56.0 18.0 K DCN 18-21.99 DCN 190-152-25R-8D 19.00 19.90 152.0 25.00 32.00 182.0 56.0 19.0 K DCN 18-21.99 DCN 200-160-25R-8D 20.00 20.90 160.0 25.00 32.00 191.6 56.0 20.0 K DCN 18-21.99 DCN 210-168-25R-8D 21.00 21.90 168.0 25.00 32.00 201.2 56.0 21.0 K DCN 18-21.99 DCN 220-176-25R-8D 22.00 22.90 176.0 25.00 32.00 210.8 56.0 22.0 K DCN 22-26.99 DCN 230-184-32R-8D 23.00 23.90 184.0 32.00 42.00 220.4 60.0 23.0 K DCN 22-26.99 DCN 240-192-32R-8D 24.00 24.90 192.0 32.00 42.00 230.0 60.0 24.0 K DCN 22-26.99 DCN 250-200-32R-8D 25.00 25.90 200.0 32.00 42.00 239.5 60.0 25.0 K DCN 22-26.99 DCN 260-208-32R-8D 26.00 26.90 208.0 32.00 42.00 249.3 60.0 26.0 K DCN 22-26.99 DCN 270-216-32R-8D 27.00 27.90 216.0 32.00 42.00 258.6 60.0 27.0 K DCN 27-32.99 DCN 280-224-32R-8D 28.00 28.90 224.0 32.00 42.00 268.2 60.0 28.0 K DCN 27-32.99 DCN 290-232-32R-8D 29.00 29.90 232.0 32.00 42.00 277.8 60.0 29.0 K DCN 27-32.99 DCN 300-240-32R-8D 30.00 30.90 240.0 32.00 42.00 287.4 60.0 30.0 K DCN 27-32.99 DCN 310-248-32R-8D 31.00 31.90 248.0 32.00 42.00 297.0 60.0 31.0 K DCN 27-32.99 DCN 320-256-32R-8D 32.00 32.90 256.0 32.00 42.00 306.5 60.0 32.0 K DCN 27-32.99 Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. It is not required if HCP drilling head is used For user guide and cutting conditions, see pages 490 (1) Do not mount smaller drilling heads other than the specified range of the drill body For inserts, see pages: FCP (486) HCP-IQ (483) ICK (484) ICK-2M (485) ICM (484) ICP (484) ICP-2M (485) ICG (487) L INDEXABLE DRILLS
