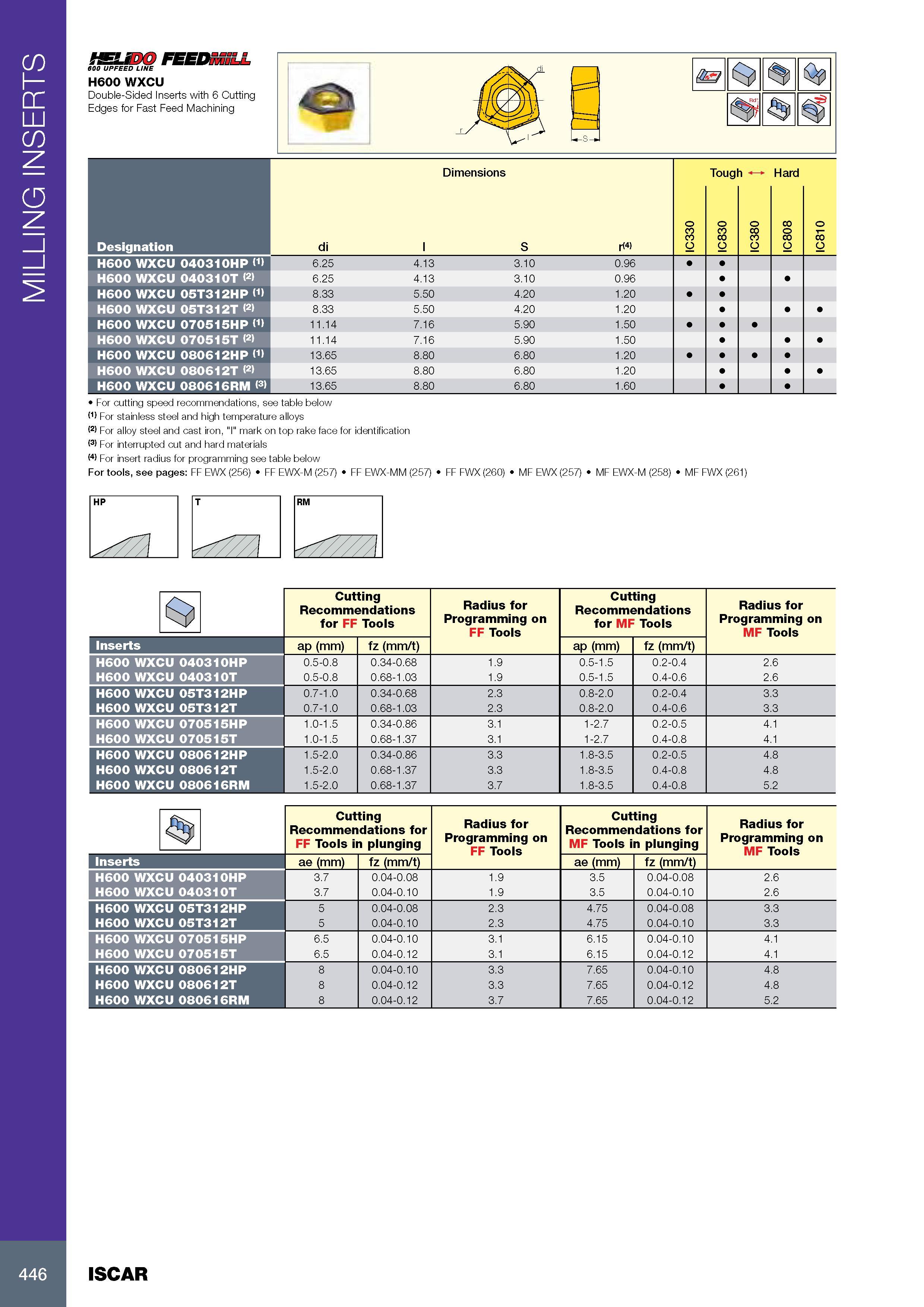

450 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.446

Каталог ISCAR 2017 Ротационный инструмент Стр. 446 0450 ENG Lab2u

MILLING INSERTS Размеры в мм Dimensions Tough Hard Обозначение Designation di l S r(4) IC330 IC830 IC380 IC808 IC810 H600 WXCU 040310HP <1) 6.25 4.13 3.10 0.96 H600 WXCU 040310T <2) 6.25 4.13 3.10 0.96 H600 WXCU 05T312HP <1) 8.33 5.50 4.20 1.20 H600 WXCU 05T312T <2) 8.33 5.50 4.20 1.20 H600 WXCU 070515HP <1) 11.14 7.16 5.90 1.50 H600 WXCU 070515T <2) 11.14 7.16 5.90 1.50 H600 WXCU 080612HP <1) 13.65 8.80 6.80 1.20 H600 WXCU 080612T <2) 13.65 8.80 6.80 1.20 H600 WXCU 080616RM <3) 13.65 8.80 6.80 1.60 For cutting speed recommendations, see table below (1) For stainless steel and high temperature alloys (2) For alloy steel and cast iron, "I" mark on top rake face for identification (3) For interrupted cut and hard materials (4) For insert radius for programming see table below For tools, see pages: FF EWX (256) FF EWX-M (257) FF EWX-MM (257) FF FWX (260) MF EWX (257) MF EWX-M (258) MF FWX (261) HP T RM rf7/ Cutting Recommendations for FF Tools Radius for Programming on FF Tools Cutting Recommendations for MF Tools Radius for Programming on MF Tools Inserts Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) Глубина резания в мм ap (mm) Подача на зуб fz (mm/t) H600 WXCU 040310HP 0.5-0.8 0.34-0.68 1.9 0.5-1.5 0.2-0.4 2.6 H600 WXCU 040310T 0.5-0.8 0.68-1.03 1.9 0.5-1.5 0.4-0.6 2.6 H600 WXCU 05T312HP 0.7-1.0 0.34-0.68 2.3 0.8-2.0 0.2-0.4 3.3 H600 WXCU 05T312T 0.7-1.0 0.68-1.03 2.3 0.8-2.0 0.4-0.6 3.3 H600 WXCU 070515HP 1.0-1.5 0.34-0.86 3.1 1-2.7 0.2-0.5 4.1 H600 WXCU 070515T 1.0-1.5 0.68-1.37 3.1 1-2.7 0.4-0.8 4.1 H600 WXCU 080612HP 1.5-2.0 0.34-0.86 3.3 1.8-3.5 0.2-0.5 4.8 H600 WXCU 080612T 1.5-2.0 0.68-1.37 3.3 1.8-3.5 0.4-0.8 4.8 H600 WXCU 080616RM 1.5-2.0 0.68-1.37 3.7 1.8-3.5 0.4-0.8 5.2 Cutting Recommendations for FF Tools in plunging Radius for Programming on FF Tools Cutting Recommendations for MF Tools in plunging Radius for Programming on MF Tools Inserts ae (mm) Подача на зуб fz (mm/t) ae (mm) Подача на зуб fz (mm/t) H600 WXCU 040310HP 3.7 0.04-0.08 1.9 3.5 0.04-0.08 2.6 H600 WXCU 040310T 3.7 0.04-0.10 1.9 3.5 0.04-0.10 2.6 H600 WXCU 05T312HP 5 0.04-0.08 2.3 4.75 0.04-0.08 3.3 H600 WXCU 05T312T 5 0.04-0.10 2.3 4.75 0.04-0.10 3.3 H600 WXCU 070515HP 6.5 0.04-0.10 3.1 6.15 0.04-0.10 4.1 H600 WXCU 070515T 6.5 0.04-0.12 3.1 6.15 0.04-0.12 4.1 H600 WXCU 080612HP 8 0.04-0.10 3.3 7.65 0.04-0.10 4.8 H600 WXCU 080612T 8 0.04-0.12 3.3 7.65 0.04-0.12 4.8 H600 WXCU 080616RM 8 0.04-0.12 3.7 7.65 0.04-0.12 5.2 446 ISCAR
