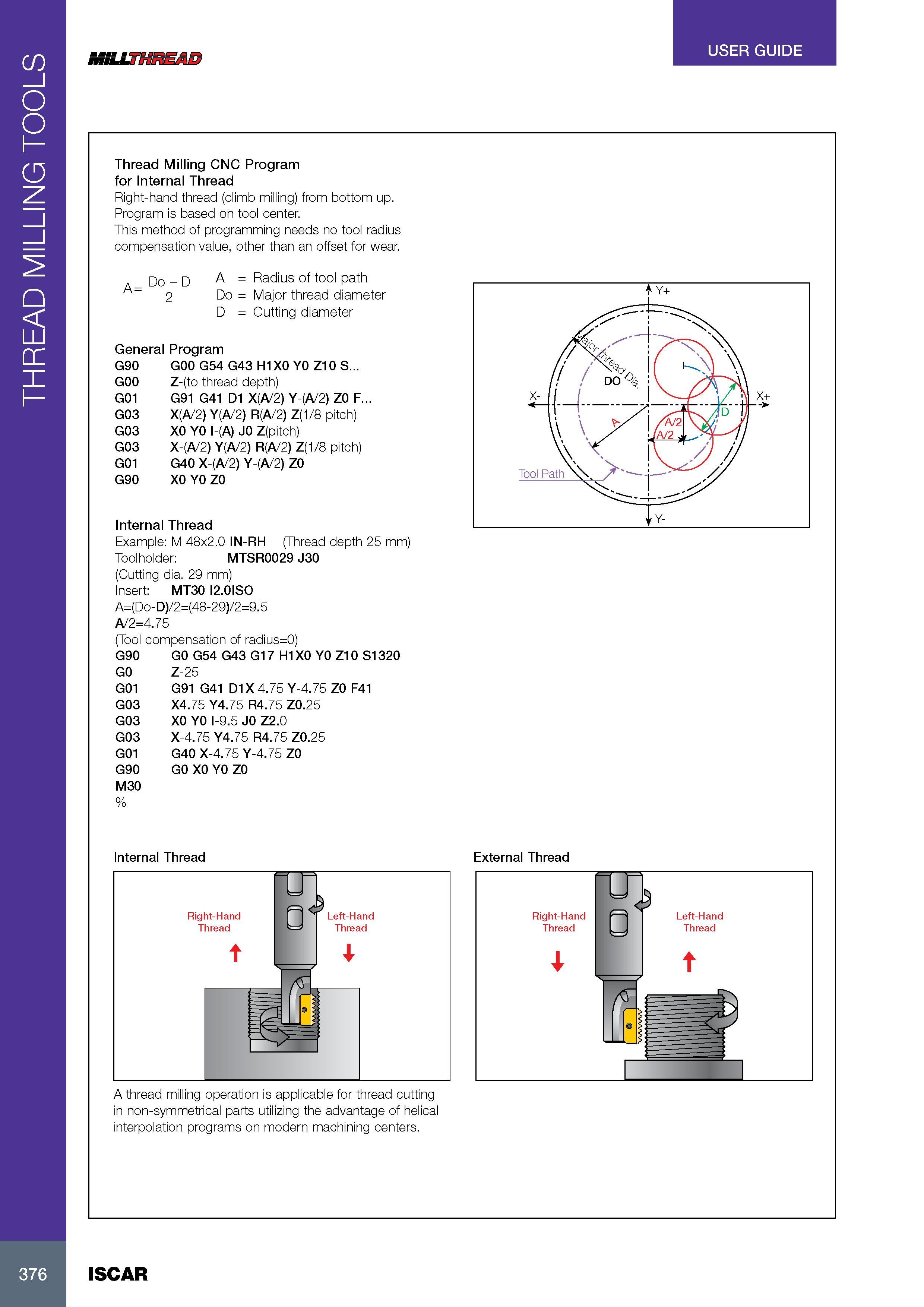

THREAD MILLING TOOLS USER GUIDE iniuf nr Thread Milling CNC Program for Internal Thread Right-hand thread (climb milling) from bottom up. Program is based on tool center. This method of programming needs no tool radius compensation value, other than an offset for wear. A= Do - D 2 A = Radius of tool path Do = Major thread diameter D = Cutting diameter General Program G90 G00 G54 G43 H1X0 Y0 Z10 S... G00 Z-(to thread depth) G01 G91 G41 D1 X(A/2) Y-(A/2) Z0 F. G03 X(A/2) Y(A/2) R(A/2) Z(1/8 pitch) G03 X0 Y0 I-(A) J0 Z(pitch) G03 X-(A/2) Y(A/2) R(A/2) Z(1/8 pitch) G01 G40 X-(A/2) Y-(A/2) Z0 G90 X0 Y0 Z0 Internal Thread Example: M 48x2.0 IN-RH (Thread depth 25 mm) Toolholder: MTSR0029 J30 (Cutting dia. 29 mm) Insert: MT30 I2.0ISO A=(Do .5 9. = /2 9) -2 8- (4 =( /2 D) A/2=4. 75 (Tool compensation of radius=0) G90 Z1 0 Y 0 1X H1 7 G1 3 4 G 4 5 G 0 G G0 Z-25 G01 G91 G41 D1X 4.75 Y-4.75 Z0 G03 X4.75 Y4.75 R4.75 Z0.25 G03 X0 Y0 I-9.5 J0 Z2.0 G03 X-4.75 Y4.75 R4.75 Z0.25 G01 G40 X-4.75 Y-4.75 Z0 G90 G0 X0 Y0 Z0 M30 % Internal Thread A thread milling operation is applicable for thread cutting in non-symmetrical parts utilizing the advantage of helical interpolation programs on modern machining centers. 376 ISCAR
