334 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.330

Каталог ISCAR 2017 Ротационный инструмент Стр. 330 0334 ENG Lab2u

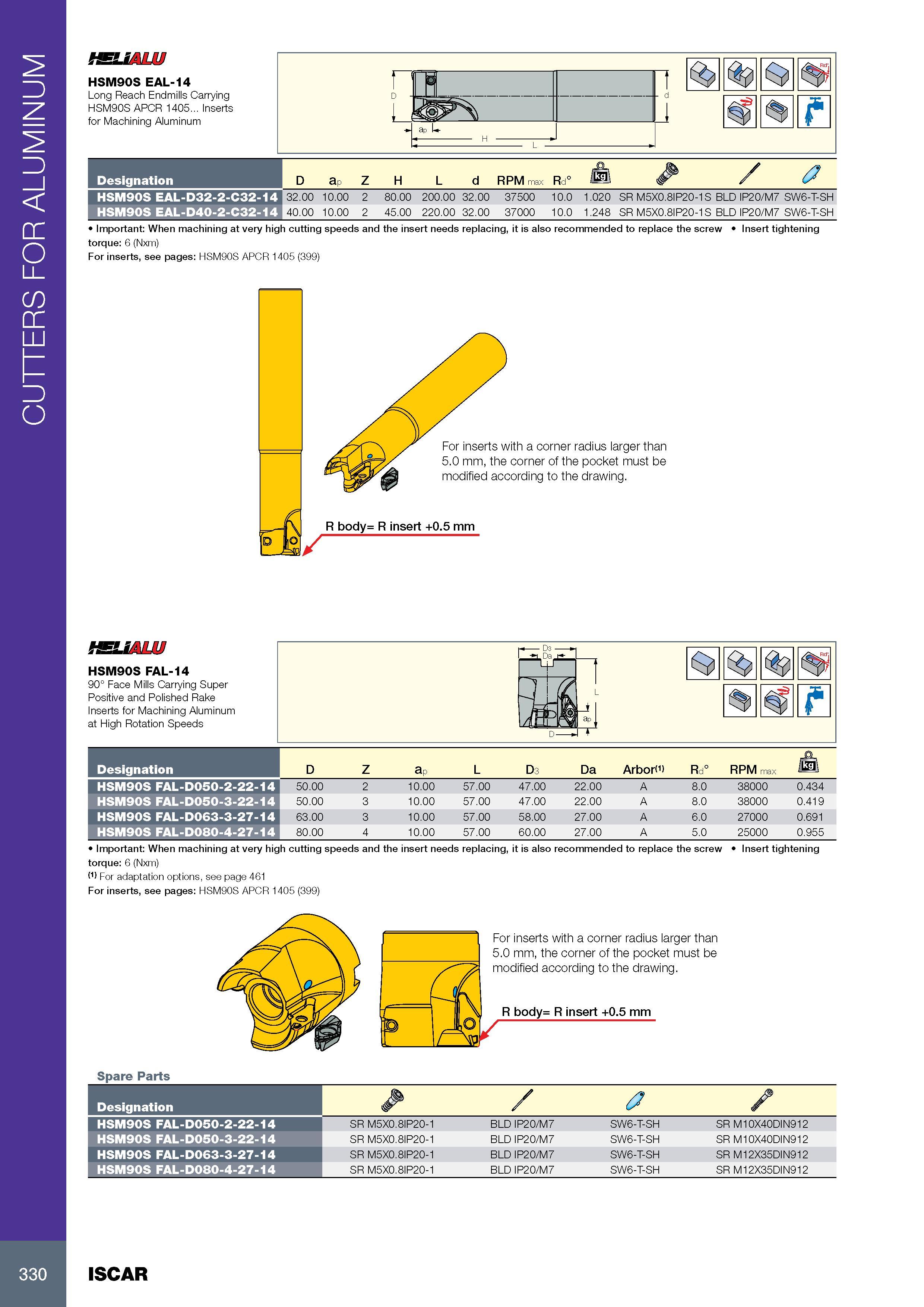

CUTTERS FOR ALUMINUM SSUALU HSM90S EAL-14 Long Reach Endmills Carrying HSM9OS APCR 1405... Inserts for Machining Aluminum Обозначение Designation D ap Z H L d RPM max R Q. O / 0 HSM90S EAL-D32-2-C32-14 32.OO 1O.OO 2 8O.OO 2OO.OO 32.OO 375OO 1O.O 1.O2O SR M5XO.8IP2O-1S BLD IP2O/M7 SW6-T-SH HSM90S EAL-D40-2-C32-14 4O.OO 1O.OO 2 45.OO 22O.OO 32.OO 37OOO 1O.O 1.248 SR M5XO.8IP2O-1S BLD IP2O/M7 SW6-T-SH Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screw Insert tightening torque: 6 (Nxm) For inserts, see pages: HSM9OS APCR 14O5 (399) fSLiALU HSM90S FAL-14 9O° Face Mills Carrying Super Positive and Polished Rake Inserts for Machining Aluminum at High Rotation Speeds D Z ap L D3 Da ArborW Rd° RPM max 50.00 2 1O.OO 57.OO 47.OO 22.OO A 8.0 38000 O.434 50.00 3 1O.OO 57.OO 47.OO 22.OO A 8.O 38OOO O.419 63.00 3 1O.OO 57.OO 58.OO 27.OO A 6.O 27OOO O.691 80.0 0 4 1O.OO 57.OO 6O.OO 27.OO A 5.O 25OOO O.955 Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screw Insert tightening torque: 6 (Nxm) (1) For adaptation options, see page 461 For inserts, see pages: HSM9OS APCR 14O5 (399) Обозначение Designation HSM90S FAL-D050-2-22-14 HSM90S FAL-D050-3-22-14 HSM90S FAL-D063-3-27-14 HSM90S FAL-D080-4-27-14 I For inserts with a corner radius larger than 5.0 mm, the corner of the pocket must be modified according to the drawing. R body= R insert +0.5 mm Spare Parts Обозначение Designation HSM90S FAL-D050-2-22-14 SR M5XO.8IP2O-1 BLD IP2O/M7 SW6-T-SH SR M1OX4ODIN912 HSM90S FAL-D050-3-22-14 SR M5XO.8IP2O-1 BLD IP2O/M7 SW6-T-SH SR M1OX4ODIN912 HSM90S FAL-D063-3-27-14 SR M5XO.8IP2O-1 BLD IP2O/M7 SW6-T-SH SR M12X35DIN912 HSM90S FAL-D080-4-27-14 SR M5XO.8IP2O-1 BLD IP2O/M7 SW6-T-SH SR M12X35DIN912 330 ISCAR
