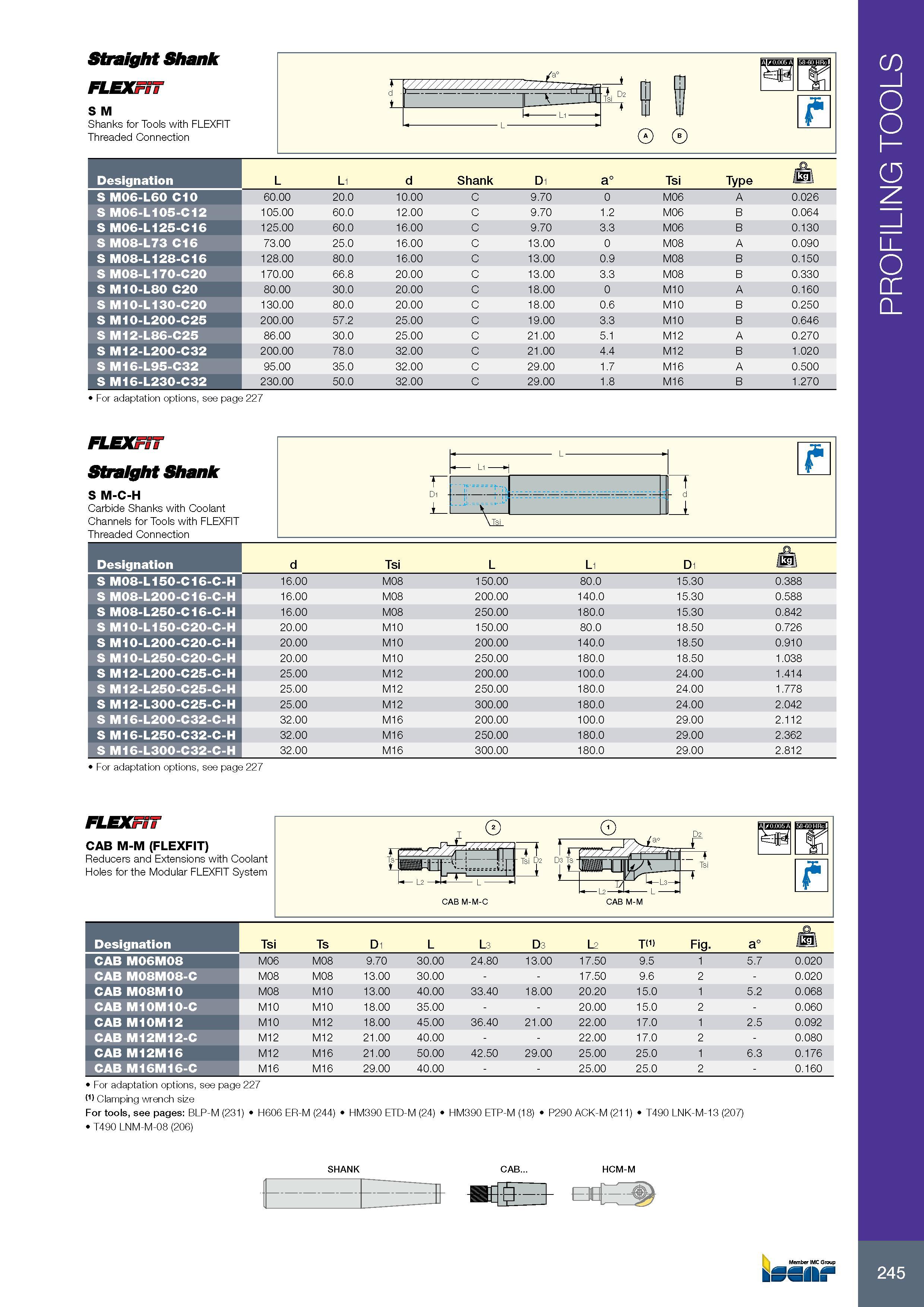

249 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.245

Каталог ISCAR 2017 Ротационный инструмент Стр. 245 0249 ENG Lab2u

Straight Shank FLEXFiT S M Shanks for Tools with FLEXFIT Threaded Connection Обозначение Designation L L1 d Shank D1 a° Tsi Type jPl /k l\ S M06-L60 C10 60.00 20.0 10.00 C 9.70 0 M06 A 0.026 S M06-L105-C12 105.00 60.0 12.00 C 9.70 1.2 M06 B 0.064 S M06-L125-C16 125.00 60.0 16.00 C 9.70 3.3 M06 B 0.130 S M08-L73 C16 73.00 25.0 16.00 C 13.00 0 M08 A 0.090 S M08-L128-C16 128.00 80.0 16.00 C 13.00 0.9 M08 B 0.150 S M08-L170-C20 170.00 66.8 20.00 C 13.00 3.3 M08 B 0.330 S M10-L80 C20 80.00 30.0 20.00 C 18.00 0 M10 A 0.160 S M10-L130-C20 130.00 80.0 20.00 C 18.00 0.6 M10 B 0.250 S M10-L200-C25 200.00 57.2 25.00 C 19.00 3.3 M10 B 0.646 S M12-L86-C25 86.00 30.0 25.00 C 21.00 5.1 M12 A 0.270 S M12-L200-C32 200.00 78.0 32.00 C 21.00 4.4 M12 B 1.020 S M16-L95-C32 95.00 35.0 32.00 C 29.00 1.7 M16 A 0.500 S M16-L230-C32 230.00 50.0 32.00 C 29.00 1.8 M16 B 1.270 For adaptation options, see page 227 FLEXFiT Straight Shank S M-C-H Carbide Shanks with Coolant Channels for Tools with FLEXFIT Threaded Connection -< L t t D r 'ft 1 Обозначение Designation d Tsi L L1 D1 o S M08-L150-C16-C-H 16.00 M08 150.00 80.0 15.30 0.388 S M08-L200-C16-C-H 16.00 M08 200.00 140.0 15.30 0.588 S M08-L250-C16-C-H 16.00 M08 250.00 180.0 15.30 0.842 S M10-L150-C20-C-H 20.00 M10 150.00 80.0 18.50 0.726 S M10-L200-C20-C-H 20.00 M10 200.00 140.0 18.50 0.910 S M10-L250-C20-C-H 20.00 M10 250.00 180.0 18.50 1.038 S M12-L200-C25-C-H 25.00 M12 200.00 100.0 24.00 1.414 S M12-L250-C25-C-H 25.00 M12 250.00 180.0 24.00 1.778 S M12-L300-C25-C-H 25.00 M12 300.00 180.0 24.00 2.042 S M16-L200-C32-C-H 32.00 M16 200.00 100.0 29.00 2.112 S M16-L250-C32-C-H 32.00 M16 250.00 180.0 29.00 2.362 S M16-L300-C32-C-H 32.00 M16 300.00 180.0 29.00 2.812 For adaptation options, see page 227 FLEXFiT CAB M-M (FLEXFIT) Reducers and Extensions with Coolant Holes for the Modular FLEXFIT System Tsi D2 D3 Ts t D2 T T a CAB M-M-C CAB M-M Обозначение Designation Tsi Ts D1 L L3 D3 L2 T(1) Fig. a° /M CAB M06M08 M06 M08 9.70 30.00 24.80 13.00 17.50 9.5 1 5.7 0.020 CAB M08M08-C M08 M08 13.00 30.00 17.50 9.6 2 - 0.020 CAB M08M10 M08 M10 13.00 40.00 33.40 18.00 20.20 15.0 1 5.2 0.068 CAB M10M10-C M10 M10 18.00 35.00 20.00 15.0 2 - 0.060 CAB M10M12 M10 M12 18.00 45.00 36.40 21.00 22.00 17.0 1 2.5 0.092 CAB M12M12-C M12 M12 21.00 40.00 22.00 17.0 2 - 0.080 CAB M12M16 M12 M16 21.00 50.00 42.50 29.00 25.00 25.0 1 6.3 0.176 CAB M16M16-C M16 M16 29.00 40.00 25.00 25.0 2 - 0.160 For adaptation options, see page 227 (1) Clamping wrench size For tools, see pages: BLP-M (231) H606 ER-M (244) HM390 ETD-M (24) HM390 ETP-M (18) P290 ACK-M (211) T490 LNK-M-13 (207) T490 LNM-M-08 (206) Member IMC Group kSSII t SHANK 245 PROFILING TOOLS
