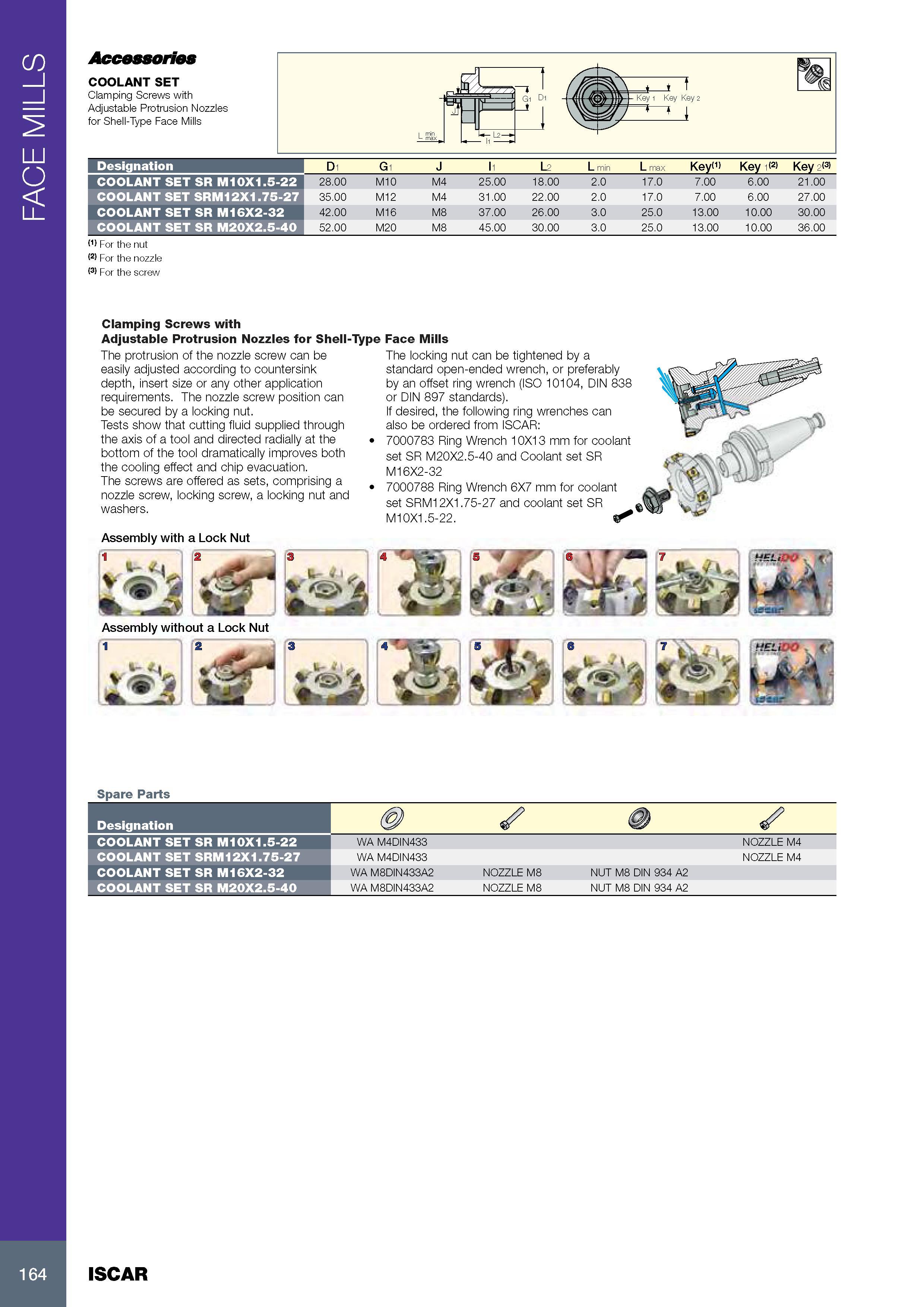

FACE MILLS Accessories COOLANT SET Clamping Screws with Adjustable Protrusion Nozzles for Shell-Type Face Mills Обозначение Designation D1 G1 J l1 L2 L min L max Key(1) Key 1<2) Key 2(3) COOLANT SET SR M10X1.5-22 28.00 M10 M4 25.00 18.00 2.0 17.0 7.00 6.00 21.00 COOLANT SET SRM12X1.75-27 35.00 M12 M4 31.00 22.00 2.0 17.0 7.00 6.00 27.00 COOLANT SET SR M16X2-32 42.00 M16 M8 37.00 26.00 3.0 25.0 13.00 10.00 30.00 COOLANT SET SR M20X2.5-40 52.00 M20 M8 45.00 30.00 3.0 25.0 13.00 10.00 36.00 <1> For the nut (2) For the nozzle (3) For the screw Clamping Screws with Adjustable Protrusion Nozzles for Shell-Type The protrusion of the nozzle screw can be easily adjusted according to countersink depth, insert size or any other application requirements. The nozzle screw position can be secured by a locking nut. Tests show that cutting fluid supplied through the axis of a tool and directed radially at the bottom of the tool dramatically improves both the cooling effect and chip evacuation. The screws are offered as sets, comprising a nozzle screw, locking screw, a locking nut and washers. Assembly with a Lock Nut Face Mills The locking nut can be tightened by a standard open-ended wrench, or preferably by an offset ring wrench (ISO 10104, DIN 838 or DIN 897 standards). If desired, the following ring wrenches can also be ordered from ISCAR: 7000783 Ring Wrench 10X13 mm for coolant set SR M20X2.5-40 and Coolant set SR M16X2-32 7000788 Ring Wrench 6X7 mm for coolant set SRM12X1.75-27 and coolant set SR M10X1.5-22. Spare Parts Обозначение Designation s & s COOLANT SET SR M10X1.5-22 WA M4DIN433 NOZZLE M4 COOLANT SET SRM12X1.75-27 WA M4DIN433 NOZZLE M4 COOLANT SET SR M16X2-32 WA M8DIN433A2 NOZZLE M8 NUT M8 DIN 934 A2 COOLANT SET SR M20X2.5-40 WA M8DIN433A2 NOZZLE M8 NUT M8 DIN 934 A2 164 ISCAR
