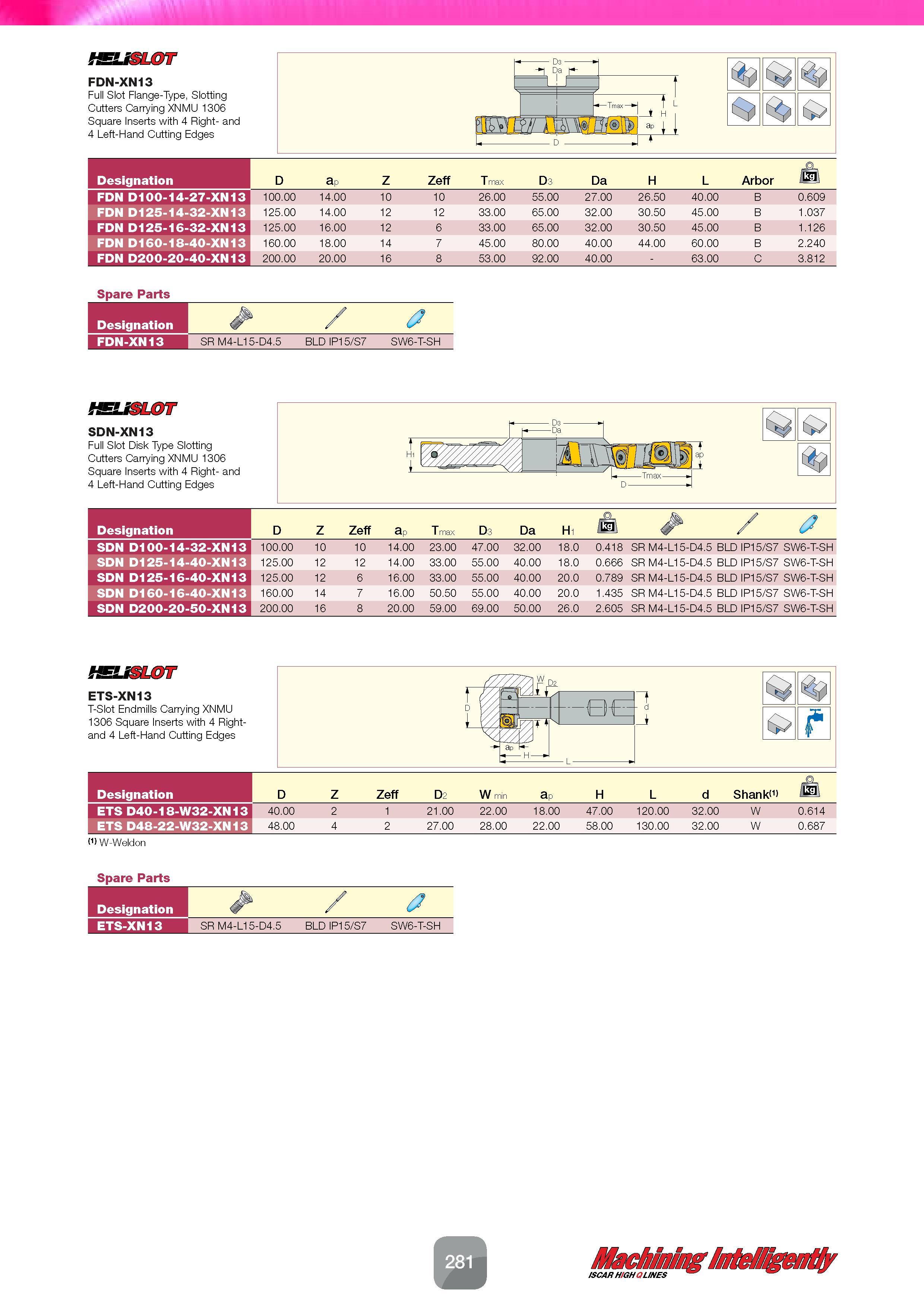

SSLOT FDN-XN13 Full Slot Flange-Type, Slotting Cutters Carrying XNMU 1306 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges D3 1 Da r tv,': C 1 i Tmax M t L 1 t H >> H&yft // _p i L D 1 + Designation D ap Z Zeff T max D3 Da H L Arbor /TO FDN D100-14-27-XN13 100.00 14.00 10 10 26.00 55.00 27.00 26.50 40.00 B 0.609 FDN D125-14-32-XN13 125.00 14.00 12 12 33.00 65.00 32.00 30.50 45.00 B 1.037 FDN D125-16-32-XN13 125.00 16.00 12 6 33.00 65.00 32.00 30.50 45.00 B 1.126 FDN D160-18-40-XN13 160.00 18.00 14 7 45.00 80.00 40.00 44.00 60.00 B 2.240 FDN D200-20-40-XN13 200.00 20.00 16 8 53.00 92.00 40.00 - 63.00 C 3.812 Spare Parts Designation c FDN-XN13 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH HELiSLOT SDN-XN13 Full Slot Disk Type Slotting Cutters Carrying XNMU 1306 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges D3 1 Da x r & hh JMUSSWi 1 U Imax J D Designation D Z Zeff ap Tmax D3 Da H1 / J SDN D100-14-32-XN13 100.00 10 10 14.00 23.00 47.00 32.00 18.0 0.418 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH SDN D125-14-40-XN13 125.00 12 12 14.00 33.00 55.00 40.00 18.0 0.666 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH SDN D125-16-40-XN13 125.00 12 6 16.00 33.00 55.00 40.00 20.0 0.789 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH SDN D160-16-40-XN13 160.00 14 7 16.00 50.50 55.00 40.00 20.0 1.435 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH SDN D200-20-50-XN13 200.00 16 8 20.00 59.00 69.00 50.00 26.0 2.605 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH HEUSLOT ETS-XN13 T-Slot Endmills Carrying XNMU 1306 Square Inserts with 4 Right-and 4 Left-Hand Cutting Edges Designation D Z Zeff D2 W min ap H L d Shanks ETS D40-18-W32-XN13 40.00 2 1 21.00 22.00 18.00 47.00 120.00 32.00 W 0.614 ETS D48-22-W32-XN13 48.00 4 2 27.00 28.00 22.00 58.00 130.00 32.00 W 0.687 (1) W-Weldon Spare Parts Designation /' ETS-XN13 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH
