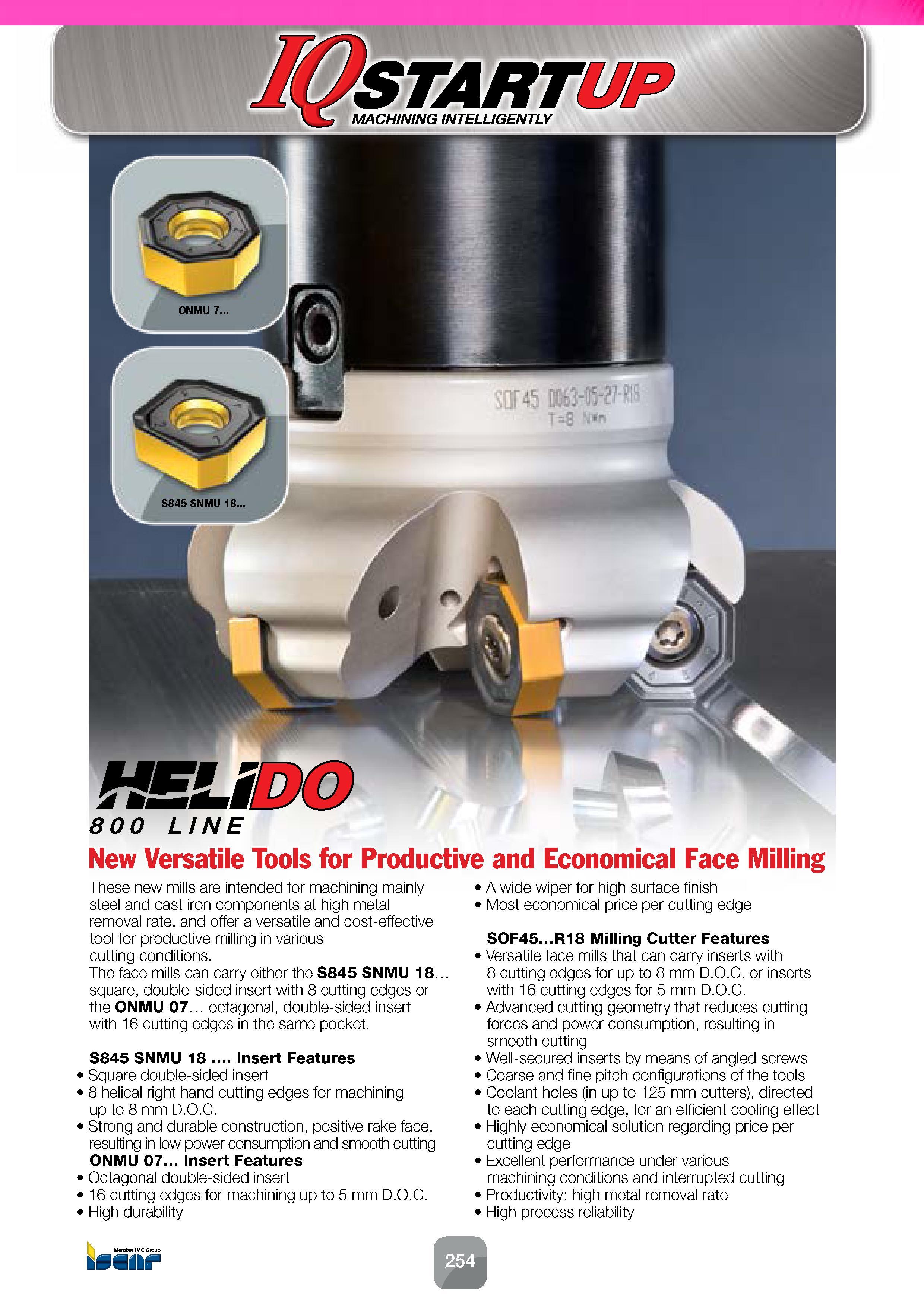

tXO 800 LINE New Versatile Tools for Productive and Economical Face Milling These new mills are intended for machining mainly steel and cast iron components at high metal removal rate, and offer a versatile and cost-effective tool for productive milling in various cutting conditions. The face mills can carry either the S845 SNMU 18. square, double-sided insert with 8 cutting edges or the ONMU 07. octagonal, double-sided insert with 16 cutting edges in the same pocket. S845 SNMU 18 Insert Features Square double-sided insert 8 helical right hand cutting edges for machining up to 8 mm D.O.C. Strong and durable construction, positive rake face, resulting in low power consumption and smooth cutting ONMU 07. Insert Features Octagonal double-sided insert 16 cutting edges for machining up to 5 mm D.O.C. High durability 1 A wide wiper for high surface finish 1 Most economical price per cutting edge SOF45...R18 Milling Cutter Features 1 Versatile face mills that can carry inserts with 8 cutting edges for up to 8 mm D.O.C. or inserts with 16 cutting edges for 5 mm D.O.C. 1 Advanced cutting geometry that reduces cutting forces and power consumption, resulting in smooth cutting 1 Well-secured inserts by means of angled screws 1 Coarse and fine pitch configurations of the tools 1 Coolant holes (in up to 125 mm cutters), directed to each cutting edge, for an efficient cooling effect 1 Highly economical solution regarding price per cutting edge 1 Excellent performance under various machining conditions and interrupted cutting 1 Productivity: high metal removal rate 1 High process reliability JS Member IMC Group
