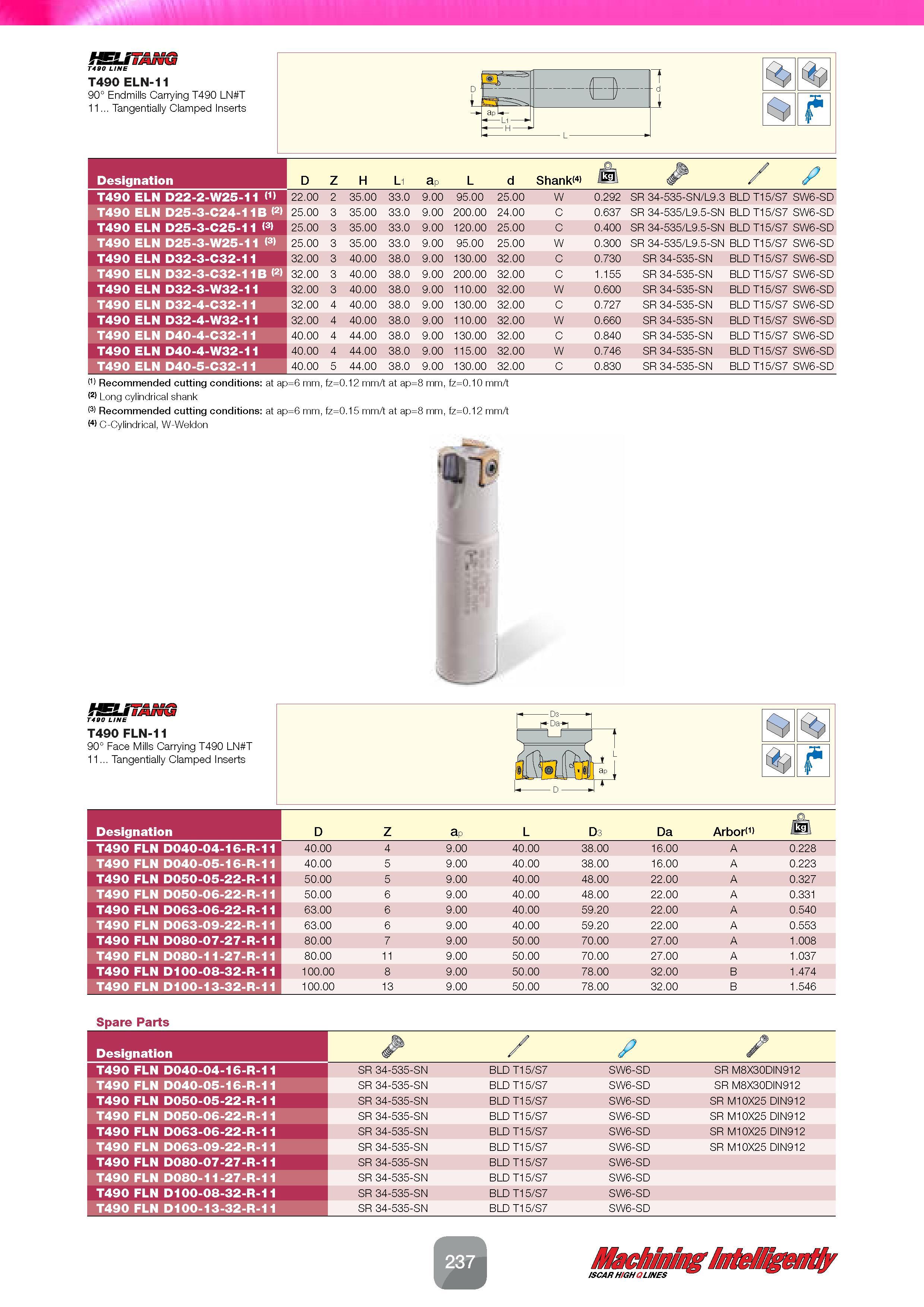

239 Каталог ISCAR 2016 Новый режущий инструмент и инструментальная оснастка Стр.237

Каталог ISCAR 2016 Новый режущий инструмент и оснастка Стр. 237 0239 Lab2u

is/uufu T4B0 LINE T490 ELN-11 90° Endmills Carrying T490 LN T 11... Tangentially Clamped Inserts Designation D Z H L1 ap L d Shank<4> 4T / y T490 ELN D22-2-W25-11 (1) 22.00 2 35.00 33.0 9.00 95.00 25.00 W 0.292 SR 34-535-SN/L9.3 BLD T15/S7 SW6-SD T490 ELN D25-3-C24-11B (2) 25.00 3 35.00 33.0 9.00 200.00 24.00 C 0.637 SR 34-535/L9.5-SN BLD T15/S7 SW6-SD T490 ELN D25-3-C25-11 (3) 25.00 3 35.00 33.0 9.00 120.00 25.00 C 0.400 SR 34-535/L9.5-SN BLD T15/S7 SW6-SD T490 ELN D25-3-W25-11 (3) 25.00 3 35.00 33.0 9.00 95.00 25.00 W 0.300 SR 34-535/L9.5-SN BLD T15/S7 SW6-SD T490 ELN D32-3-C32-11 32.00 3 40.00 38.0 9.00 130.00 32.00 C 0.730 SR 34-535-SN BLD T15/S7 SW6-SD T490 ELN D32-3-C32-11B (2) 32.00 3 40.00 38.0 9.00 200.00 32.00 C 1.155 SR 34-535-SN BLD T15/S7 SW6-SD T490 ELN D32-3-W32-11 32.00 3 40.00 38.0 9.00 110.00 32.00 W 0.600 SR 34-535-SN BLD T15/S7 SW6-SD T490 ELN D32-4-C32-11 32.00 4 40.00 38.0 9.00 130.00 32.00 C 0.727 SR 34-535-SN BLD T15/S7 SW6-SD T490 ELN D32-4-W32-11 32.00 4 40.00 38.0 9.00 110.00 32.00 W 0.660 SR 34-535-SN BLD T15/S7 SW6-SD T490 ELN D40-4-C32-11 40.00 4 44.00 38.0 9.00 130.00 32.00 C 0.840 SR 34-535-SN BLD T15/S7 SW6-SD T490 ELN D40-4-W32-11 40.00 4 44.00 38.0 9.00 115.00 32.00 W 0.746 SR 34-535-SN BLD T15/S7 SW6-SD T490 ELN D40-5-C32-11 40.00 5 44.00 38.0 9.00 130.00 32.00 C 0.830 SR 34-535-SN BLD T15/S7 SW6-SD (1) Recommended cutting conditions: at ap=6 mm, fz=0.12 mm/t at ap=8 mm, fz=0.10 mm/t Long cylindrical shank (3) Recommended cutting conditions: at ap=6 mm, fz=0.15 mm/t at ap=8 mm, fz=0.12 mm/t (4) C-Cylindrical, W-Weldon I tSSJTANG T4B0 LINE T490 FLN-11 90° Face Mills Carrying T490 LN T 11... Tangentially Clamped Inserts Designation D Z ap L D3 Da Arbor<1> T490 FLN D040-04-16-R-11 40.00 4 9.00 40.00 38.00 16.00 A 0.228 T490 FLN D040-05-16-R-11 40.00 5 9.00 40.00 38.00 16.00 A 0.223 T490 FLN D050-05-22-R-11 50.00 5 9.00 40.00 48.00 22.00 A 0.327 T490 FLN D050-06-22-R-11 50.00 6 9.00 40.00 48.00 22.00 A 0.331 T490 FLN D063-06-22-R-11 63.00 6 9.00 40.00 59.20 22.00 A 0.540 T490 FLN D063-09-22-R-11 63.00 6 9.00 40.00 59.20 22.00 A 0.553 T490 FLN D080-07-27-R-11 80.00 7 9.00 50.00 70.00 27.00 A 1.008 T490 FLN D080-11-27-R-11 80.00 11 9.00 50.00 70.00 27.00 A 1.037 T490 FLN D100-08-32-R-11 100.00 8 9.00 50.00 78.00 32.00 B 1.474 T490 FLN D100-13-32-R-11 100.00 13 9.00 50.00 78.00 32.00 B 1.546 Spare Parts Designation T490 FLN D040-04-16-R-11 SR 34-535-SN BLD T15/S7 SW6-SD SR M8X30DIN912 T490 FLN D040-05-16-R-11 SR 34-535-SN BLD T15/S7 SW6-SD SR M8X30DIN912 T490 FLN D050-05-22-R-11 SR 34-535-SN BLD T15/S7 SW6-SD SR M10X25 DIN912 T490 FLN D050-06-22-R-11 SR 34-535-SN BLD T15/S7 SW6-SD SR M10X25 DIN912 T490 FLN D063-06-22-R-11 SR 34-535-SN BLD T15/S7 SW6-SD SR M10X25 DIN912 T490 FLN D063-09-22-R-11 SR 34-535-SN BLD T15/S7 SW6-SD SR M10X25 DIN912 T490 FLN D080-07-27-R-11 SR 34-535-SN BLD T15/S7 SW6-SD T490 FLN D080-11-27-R-11 SR 34-535-SN BLD T15/S7 SW6-SD T490 FLN D100-08-32-R-11 SR 34-535-SN BLD T15/S7 SW6-SD T490 FLN D100-13-32-R-11 SR 34-535-SN BLD T15/S7 SW6-SD
