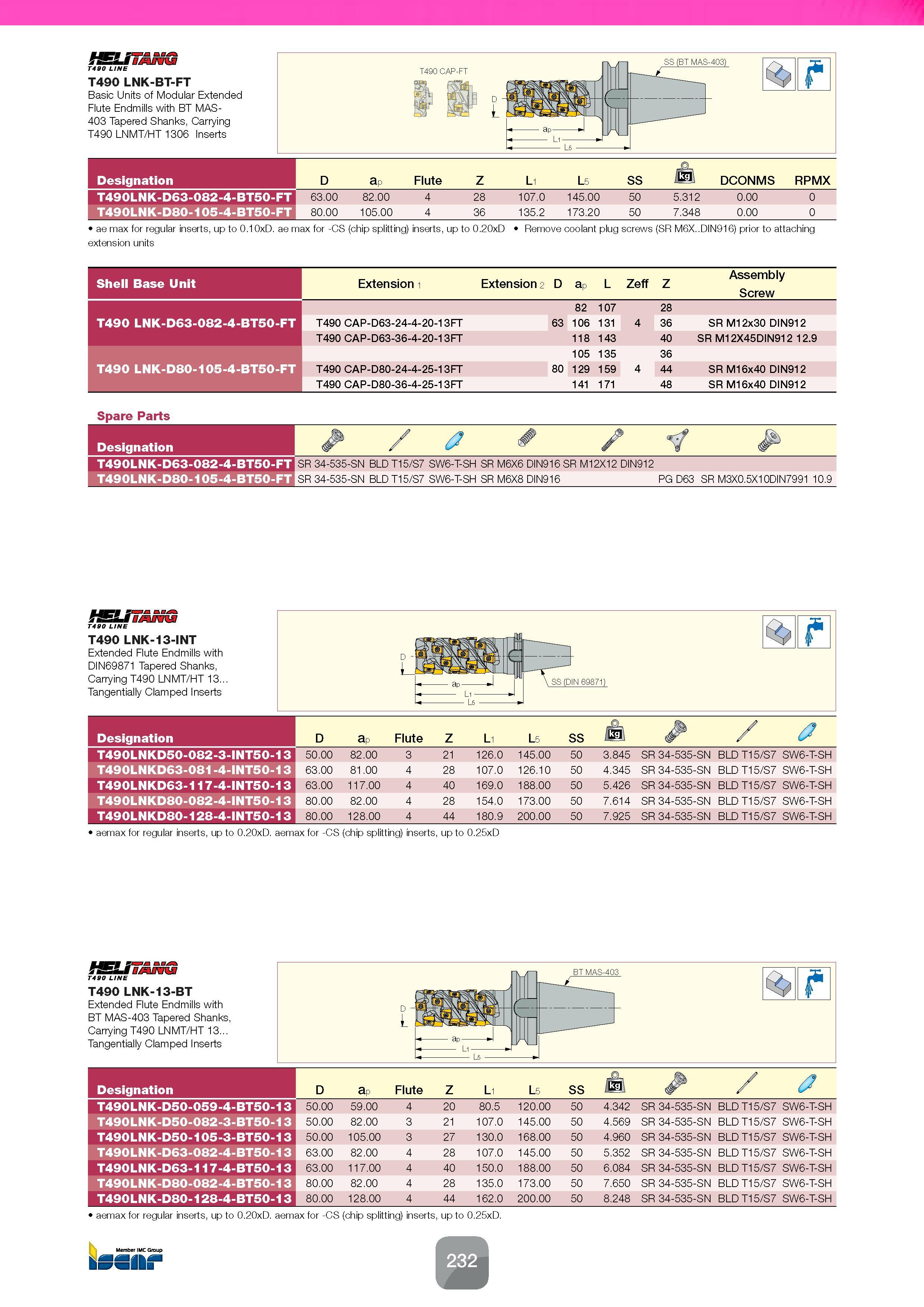

234 Каталог ISCAR 2016 Новый режущий инструмент и инструментальная оснастка Стр.232

Каталог ISCAR 2016 Новый режущий инструмент и оснастка Стр. 232 0234 Lab2u

L5 Designation D ap Flute Z L1 L5 SS DCONMS RPMX T490LNK-D63-082-4-BT50-FT 63.00 82.00 4 28 107.0 145.00 50 5.312 0.00 0 T490LNK-D80-105-4-BT50-FT 80.00 105.00 4 36 135.2 173.20 50 7.348 0.00 0 ae max for regular inserts, up to 0.10xD. ae max for -CS (chip splitting) inserts, up to 0.20xD Remove coolant plug screws (SR M6X..DIN916) prior to attaching extension units Shell Base Unit Extension 1 Extension 2 D ap L Zeff Z Assembly Screw 82 107 28 T490 LNK-D63-082-4-BT50-FT T490 CAP-D63-24-4-20-13FT 63 106 131 4 36 SR M12x30 DIN912 T490 CAP-D63-36-4-20-13FT 118 143 40 SR M12X45DIN912 12.9 105 135 36 T490 LNK-D80-105-4-BT50-FT T490 CAP-D80-24-4-25-13FT 80 129 159 4 44 SR M16x40 DIN912 T490 CAP-D80-36-4-25-13FT 141 171 48 SR M16x40 DIN912 Spare Parts SR 34-535-SN BLD T15/S7 SW6-T-SH SR M6X6 DIN916SR M12X12 DIN912 SR 34-535-SN BLD T15/S7 SW6-T-SH SR M6X8 DIN916 PG D63 SR M3X0.5X10DIN7991 10.9 Designation T490LNK-D63-082-4-BT50-FT T490LNK-D80-105-4-BT50-FT fSUTANG T490 LINE T490 LNK-13-INT Extended Flute Endmills with DIN69871 Tapered Shanks, Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts Designation D ap Flute Z L1 L5 SS /kg\ / T490LNKD50-082-3-INT50-13 50.00 82.00 3 21 126.0 145.00 50 3.845 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD63-081-4-INT50-13 63.00 81.00 4 28 107.0 126.10 50 4.345 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD63-117-4-INT50-13 63.00 117.00 4 40 169.0 188.00 50 5.426 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD80-082-4-INT50-13 80.00 82.00 4 28 154.0 173.00 50 7.614 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNKD80-128-4-INT50-13 80.00 128.00 4 44 180.9 200.00 50 7.925 SR 34-535-SN BLD T15/S7 SW6-T-SH aemax for regular inserts, up to 0.20xD. aemax for -CS (chip splitting) inserts, up to 0.25xD 2SLSTANG T490 LINE T490 LNK-13-BT Extended Flute Endmills with BT MAS-403 Tapered Shanks, Carrying T490 LNMT/HT 13... Tangentially Clamped Inserts Designation D ap Flute Z L1 L5 SS /jkg\ / J T490LNK-D50-059-4-BT50-13 50.00 59.00 4 20 80.5 120.00 50 4.342 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D50-082-3-BT50-13 50.00 82.00 3 21 107.0 145.00 50 4.569 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D50-105-3-BT50-13 50.00 105.00 3 27 130.0 168.00 50 4.960 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D63-082-4-BT50-13 63.00 82.00 4 28 107.0 145.00 50 5.352 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D63-117-4-BT50-13 63.00 117.00 4 40 150.0 188.00 50 6.084 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D80-082-4-BT50-13 80.00 82.00 4 28 135.0 173.00 50 7.650 SR 34-535-SN BLD T15/S7 SW6-T-SH T490LNK-D80-128-4-BT50-13 80.00 128.00 4 44 162.0 200.00 50 8.248 SR 34-535-SN BLD T15/S7 SW6-T-SH aemax for regular inserts, up to 0.20xD. aemax for -CS (chip splitting) inserts, up to 0.25xD.
