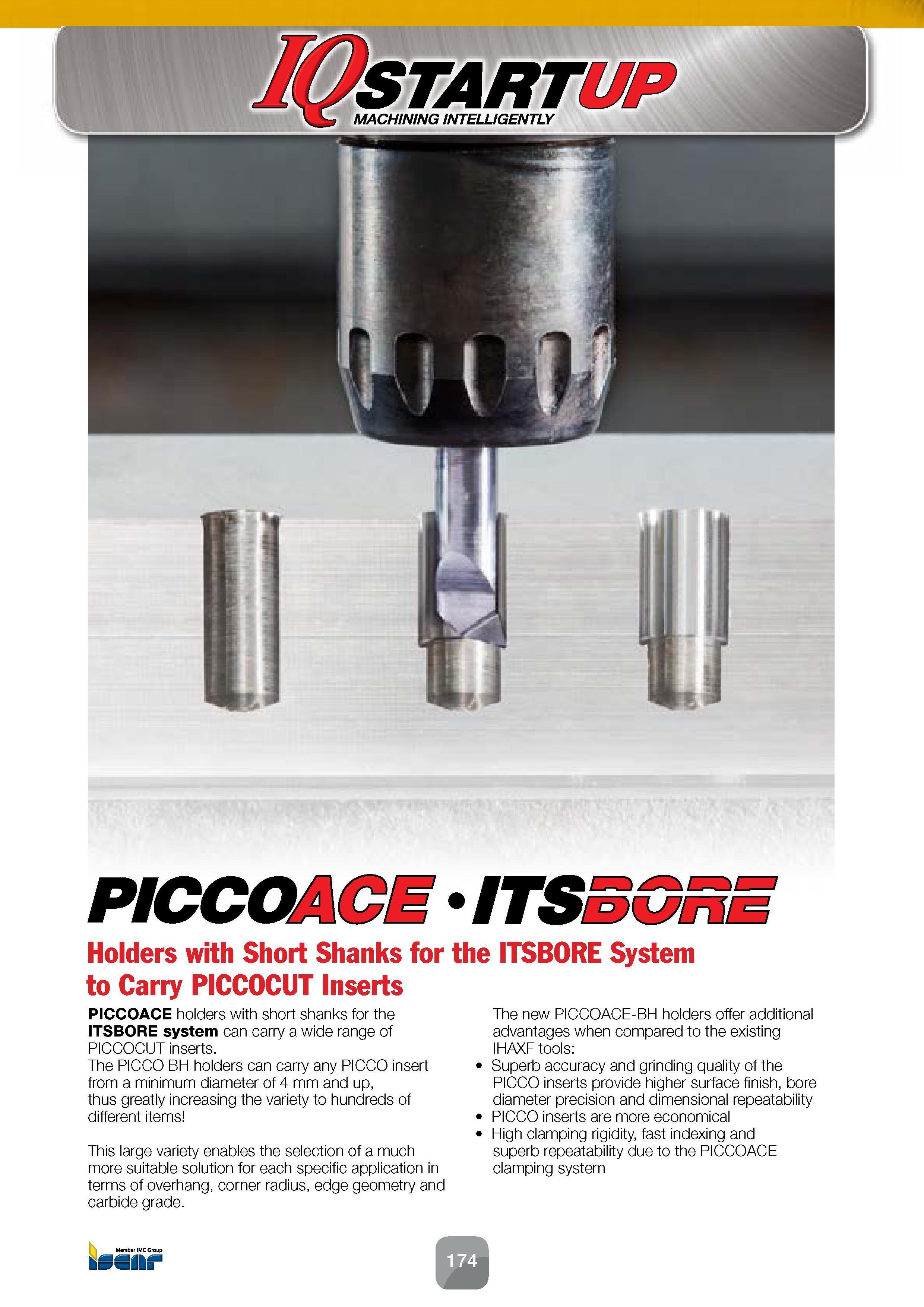

PICCm B-ITS< tE>UZM3 Holders with Short Shanks for the ITSBORE System to Carry PICCOCUT Inserts PICCOACE holders with short shanks for the ITSBORE system can carry a wide range of PICCOCUT inserts. The PICCO BH holders can carry any PICCO insert from a minimum diameter of 4 mm and up, thus greatly increasing the variety to hundreds of different items This large variety enables the selection of a much more suitable solution for each specific application in terms of overhang, corner radius, edge geometry and carbide grade. The new PICCOACE-BH holders offer additional advantages when compared to the existing IHAXF tools: Superb accuracy and grinding quality of the PICCO inserts provide higher surface finish, bore diameter precision and dimensional repeatability PICCO inserts are more economical High clamping rigidity, fast indexing and superb repeatability due to the PICCOACE clamping system Member IMC Group
