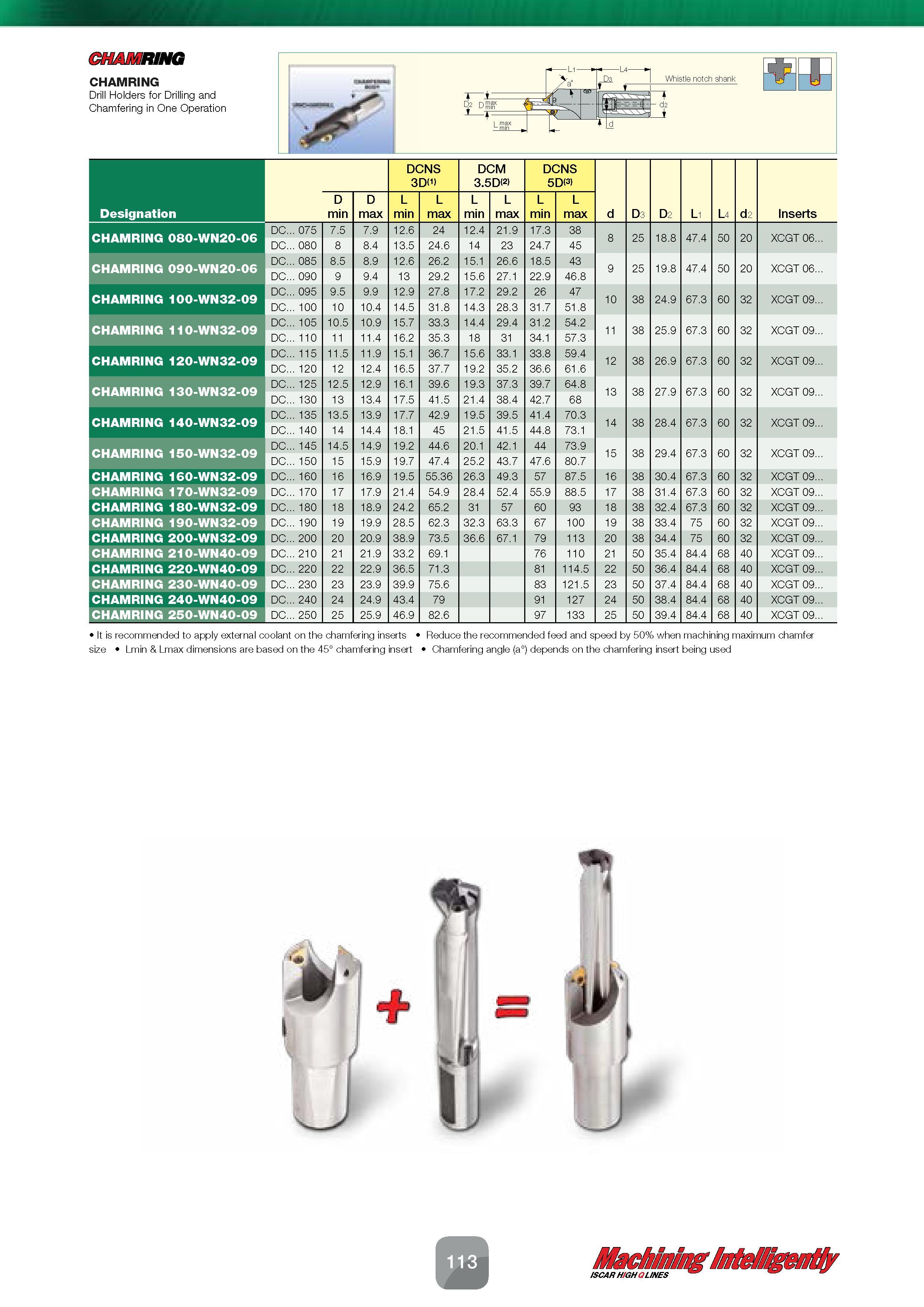

115 Каталог ISCAR 2016 Новый режущий инструмент и инструментальная оснастка Стр.113

Каталог ISCAR 2016 Новый режущий инструмент и оснастка Стр. 113 0115 Lab2u

DCNS 3DM) DCM 3.5D<2) DCNS 5D(3) Designation D min D max L min L max L min L max L min L max d D3 D2 L1 L4 d2 Inserts CHAMRING 080-WN20-06 DC.. 075 7.5 7.9 12.6 24 12.4 21.9 17.3 38 8 25 18.8 47.4 50 20 XCGT 06... DC.. 080 8 8.4 13.5 24.6 14 23 24.7 45 CHAMRING 090-WN20-06 DC.. 085 8.5 8.9 12.6 26.2 15.1 26.6 18.5 43 9 25 19.8 47.4 50 20 XCGT 06... DC.. 090 9 9.4 13 29.2 15.6 27.1 22.9 46.8 CHAMRING 100-WN32-09 DC.. 095 9.5 9.9 12.9 27.8 17.2 29.2 26 47 10 38 24.9 67.3 60 32 XCGT 09... DC.. 100 10 10.4 14.5 31.8 14.3 28.3 31.7 51.8 CHAMRING 110-WN32-09 DC.. 105 10.5 10.9 15.7 33.3 14.4 29.4 31.2 54.2 11 38 25.9 67.3 60 32 XCGT 09... DC.. 110 11 11.4 16.2 35.3 18 31 34.1 57.3 CHAMRING 120-WN32-09 DC.. 115 11.5 11.9 15.1 36.7 15.6 33.1 33.8 59.4 12 38 26.9 67.3 60 32 XCGT 09... DC.. 120 12 12.4 16.5 37.7 19.2 35.2 36.6 61.6 CHAMRING 130-WN32-09 DC.. 125 12.5 12.9 16.1 39.6 19.3 37.3 39.7 64.8 13 38 27.9 67.3 60 32 XCGT 09... DC.. 130 13 13.4 17.5 41.5 21.4 38.4 42.7 68 CHAMRING 140-WN32-09 DC.. 135 13.5 13.9 17.7 42.9 19.5 39.5 41.4 70.3 14 38 28.4 67.3 60 32 XCGT 09... DC.. . 140 14 14.4 18.1 45 21.5 41.5 44.8 73.1 CHAMRING 150-WN32-09 DC.. . 145 14.5 14.9 19.2 44.6 20.1 42.1 44 73.9 15 38 29.4 67.3 60 32 XCGT 09... DC.. 150 15 15.9 19.7 47.4 25.2 43.7 47.6 80.7 CHAMRING 160-WN32-09 DC.. 160 16 16.9 19.5 55.36 26.3 49.3 57 87.5 16 38 30.4 67.3 60 32 XCGT 09... CHAMRING 170-WN32-09 DC.. 170 17 17.9 21.4 54.9 28.4 52.4 55.9 88.5 17 38 31.4 67.3 60 32 XCGT 09... CHAMRING 180-WN32-09 DC.. 180 18 18.9 24.2 65.2 31 57 60 93 18 38 32.4 67.3 60 32 XCGT 09... CHAMRING 190-WN32-09 DC.. 190 19 19.9 28.5 62.3 32.3 63.3 67 100 19 38 33.4 75 60 32 XCGT 09... CHAMRING 200-WN32-09 DC.. . 200 20 20.9 38.9 73.5 36.6 67.1 79 113 20 38 34.4 75 60 32 XCGT 09... CHAMRING 210-WN40-09 DC.. 210 21 21.9 33.2 69.1 76 110 21 50 35.4 84.4 68 40 XCGT 09... CHAMRING 220-WN40-09 DC.. . 220 22 22.9 36.5 71.3 81 114.5 22 50 36.4 84.4 68 40 XCGT 09... CHAMRING 230-WN40-09 DC.. . 230 23 23.9 39.9 75.6 83 121.5 23 50 37.4 84.4 68 40 XCGT 09... CHAMRING 240-WN40-09 DC.. . 240 24 24.9 43.4 79 91 127 24 50 38.4 84.4 68 40 XCGT 09... CHAMRING 250-WN40-09 DC.. 250 25 25.9 46.9 82.6 97 133 25 50 39.4 84.4 68 40 XCGT 09... It is recommended to apply external coolant on the chamfering inserts Reduce the recommended feed and speed by 50% when machining maximum chamfer size Lmin & Lmax dimensions are based on the 45° chamfering insert Chamfering angle (a°) depends on the chamfering insert being used ISCAR HGH LINES
