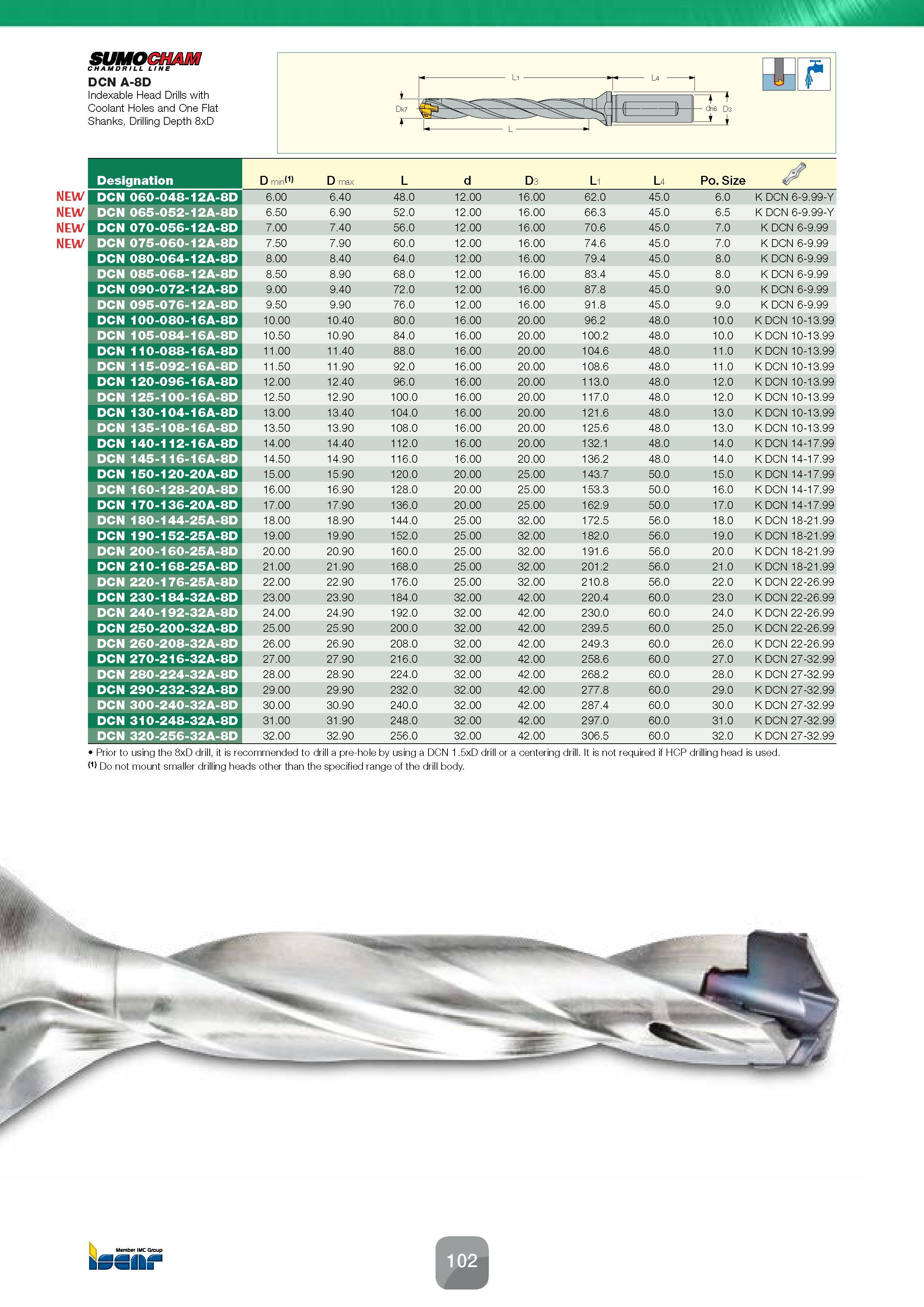

Indexable Head Drills SUMOCHAM CHAMDRILL LINE DCN A-8D with Coolant Holes and One Flat Shanks, Drilling Depth 8xD NEW Designation D min(1) D max

Indexable Head Drills SUMOCHAM CHAMDRILL LINE DCN A-8D with Coolant Holes and One Flat Shanks, Drilling Depth 8xD NEW Designation D min(1) D max L d D3 L1 L4 Po. Size 4 DON 060-048-12A-8D 6.00 6.40 48.0 12.00 16.00 62.0 45.0 6.0 K DCN 6-9.99-Y DON 065-052-12A-8D 6.50 6.90 52.0 12.00 16.00 66.3 45.0 6.5 K DCN 6-9.99-Y DON 070-056-12A-8D 7.00 7.40 56.0 12.00 16.00 70.6 45.0 7.0 K DCN 6-9.99 DON 075-060-12A-8D 7.50 7.90 60.0 12.00 16.00 74.6 45.0 7.0 K DCN 6-9.99 DON 080-064-12A-8D 8.00 8.40 64.0 12.00 16.00 79.4 45.0 8.0 K DCN 6-9.99 DON 085-068-12A-8D 8.50 8.90 68.0 12.00 16.00 83.4 45.0 8.0 K DCN 6-9.99 DON 090-072-12A-8D 9.00 9.40 72.0 12.00 16.00 87.8 45.0 9.0 K DCN 6-9.99 DON 095-076-12A-8D 9.50 9.90 76.0 12.00 16.00 91.8 45.0 9.0 K DCN 6-9.99 DON 100-080-16A-8D 10.00 10.40 80.0 16.00 20.00 96.2 48.0 10.0 K DCN 10-13.99 DON 105-084-16A-8D 10.50 10.90 84.0 16.00 20.00 100.2 48.0 10.0 K DCN 10-13.99 DON 110-088-16A-8D 11.00 11.40 88.0 16.00 20.00 104.6 48.0 11.0 K DCN 10-13.99 DON 115-092-16A-8D 11.50 11.90 92.0 16.00 20.00 108.6 48.0 11.0 K DCN 10-13.99 DON 120-096-16A-8D 12.00 12.40 96.0 16.00 20.00 113.0 48.0 12.0 K DCN 10-13.99 DON 125-100-16A-8D 12.50 12.90 100.0 16.00 20.00 117.0 48.0 12.0 K DCN 10-13.99 DON 130-104-16A-8D 13.00 13.40 104.0 16.00 20.00 121.6 48.0 13.0 K DCN 10-13.99 DON 135-108-16A-8D 13.50 13.90 108.0 16.00 20.00 125.6 48.0 13.0 K DCN 10-13.99 DON 140-112-16A-8D 14.00 14.40 112.0 16.00 20.00 132.1 48.0 14.0 K DCN 14-17.99 DON 145-116-16A-8D 14.50 14.90 116.0 16.00 20.00 136.2 48.0 14.0 K DCN 14-17.99 DON 150-120-20A-8D 15.00 15.90 120.0 20.00 25.00 143.7 50.0 15.0 K DCN 14-17.99 DON 160-128-20A-8D 16.00 16.90 128.0 20.00 25.00 153.3 50.0 16.0 K DCN 14-17.99 DON 170-136-20A-8D 17.00 17.90 136.0 20.00 25.00 162.9 50.0 17.0 K DCN 14-17.99 DON 180-144-25A-8D 18.00 18.90 144.0 25.00 32.00 172.5 56.0 18.0 K DCN 18-21.99 DON 190-152-25A-8D 19.00 19.90 152.0 25.00 32.00 182.0 56.0 19.0 K DCN 18-21.99 DON 200-160-25A-8D 20.00 20.90 160.0 25.00 32.00 191.6 56.0 20.0 K DCN 18-21.99 DON 210-168-25A-8D 21.00 21.90 168.0 25.00 32.00 201.2 56.0 21.0 K DCN 18-21.99 DON 220-176-25A-8D 22.00 22.90 176.0 25.00 32.00 210.8 56.0 22.0 K DCN 22-26.99 DON 230-184-32A-8D 23.00 23.90 184.0 32.00 42.00 220.4 60.0 23.0 K DCN 22-26.99 DON 240-192-32A-8D 24.00 24.90 192.0 32.00 42.00 230.0 60.0 24.0 K DCN 22-26.99 DON 250-200-32A-8D 25.00 25.90 200.0 32.00 42.00 239.5 60.0 25.0 K DCN 22-26.99 DON 260-208-32A-8D 26.00 26.90 208.0 32.00 42.00 249.3 60.0 26.0 K DCN 22-26.99 DON 270-216-32A-8D 27.00 27.90 216.0 32.00 42.00 258.6 60.0 27.0 K DCN 27-32.99 DON 280-224-32A-8D 28.00 28.90 224.0 32.00 42.00 268.2 60.0 28.0 K DCN 27-32.99 DON 290-232-32A-8D 29.00 29.90 232.0 32.00 42.00 277.8 60.0 29.0 K DCN 27-32.99 DON 300-240-32A-8D 30.00 30.90 240.0 32.00 42.00 287.4 60.0 30.0 K DCN 27-32.99 DON 310-248-32A-8D 31.00 31.90 248.0 32.00 42.00 297.0 60.0 31.0 K DCN 27-32.99 DON 320-256-32A-8D 32.00 32.90 256.0 32.00 42.00 306.5 60.0 32.0 K DCN 27-32.99 Prior to using the 8xD drill, it is recommended to drill a pre-hole by using a DCN 1.5xD drill or a centering drill. It is not required if HCP drilling head is used. (1) Do not mount smaller drilling heads other than the specified range of the drill body. JS Member IMC Group
