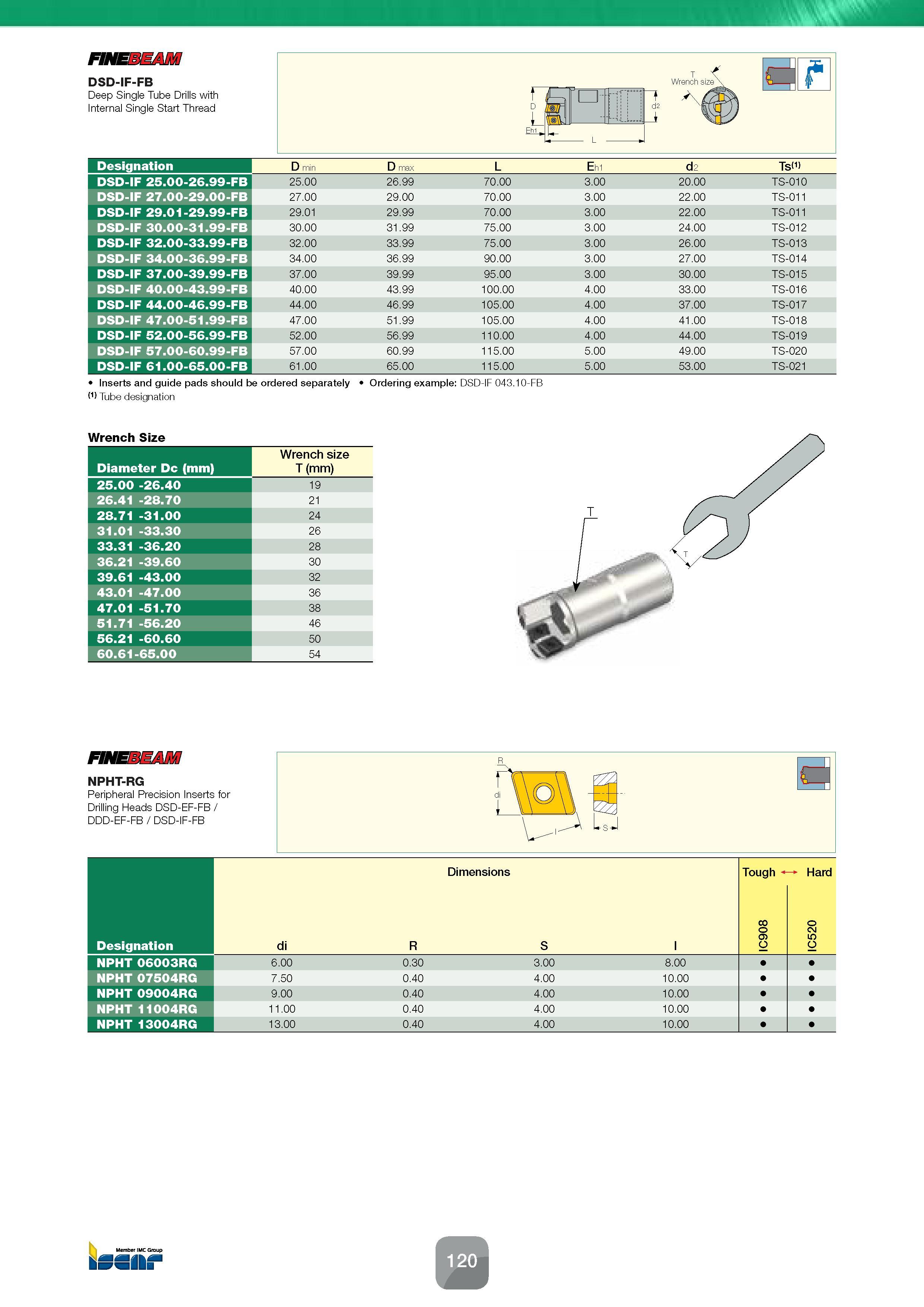

Deep Single Tube Drills FINEBEAM DSD-IF-FB with Internal Single Start Thread Designation D min D max L Eh1 d2 Tsi1) DSD-IF 25 00-26 99-FB 25 00 2

Deep Single Tube Drills FINEBEAM DSD-IF-FB with Internal Single Start Thread Designation D min D max L Eh1 d2 Tsi1) DSD-IF 25.00-26.99-FB 25.00 26.99 70.00 3.00 20.00 TS-010 DSD-IF 27.00-29.00-FB 27.00 29.00 70.00 3.00 22.00 TS-011 DSD-IF 29.01-29.99-FB 29.01 29.99 70.00 3.00 22.00 TS-011 DSD-IF 30.00-31.99-FB 30.00 31.99 75.00 3.00 24.00 TS-012 DSD-IF 32.00-33.99-FB 32.00 33.99 75.00 3.00 26.00 TS-013 DSD-IF 34.00-36.99-FB 34.00 36.99 90.00 3.00 27.00 TS-014 DSD-IF 37.00-39.99-FB 37.00 39.99 95.00 3.00 30.00 TS-015 DSD-IF 40.00-43.99-FB 40.00 43.99 100.00 4.00 33.00 TS-016 DSD-IF 44.00-46.99-FB 44.00 46.99 105.00 4.00 37.00 TS-017 DSD-IF 47.00-51.99-FB 47.00 51.99 105.00 4.00 41.00 TS-018 DSD-IF 52.00-56.99-FB 52.00 56.99 110.00 4.00 44.00 TS-019 DSD-IF 57.00-60.99-FB 57.00 60.99 115.00 5.00 49.00 TS-020 DSD-IF 61.00-65.00-FB 61.00 65.00 115.00 5.00 53.00 TS-021 Inserts and guide pads should be ordered separately Ordering example: DSD-IF 043.10-FB (1) Tube designation Wrench Size Diameter Dc (mm) Wrench size T (mm) 25.00 -26.40 19 26.41 -28.70 21 28.71 -31.00 24 31.01 -33.30 26 33.31 -36.20 28 36.21 -39.60 30 39.61 -43.00 32 43.01 -47.00 36 47.01 -51.70 38 51.71 -56.20 46 56.21 -60.60 50 60.61-65.00 54 FINEBEAM NPHT-RG Peripheral Precision Inserts for Drilling Heads DSD-EF-FB / DDD-EF-FB / DSD-IF-FB Dimensions Designation di R S l IC908 IC520 NPHT 06003RG 6.00 0.30 3.00 8.00 NPHT 07504RG 7.50 0.40 4.00 10.00 NPHT 09004RG 9.00 0.40 4.00 10.00 NPHT 11004RG 11.00 0.40 4.00 10.00 NPHT 13004RG 13.00 0.40 4.00 10.00 H £
