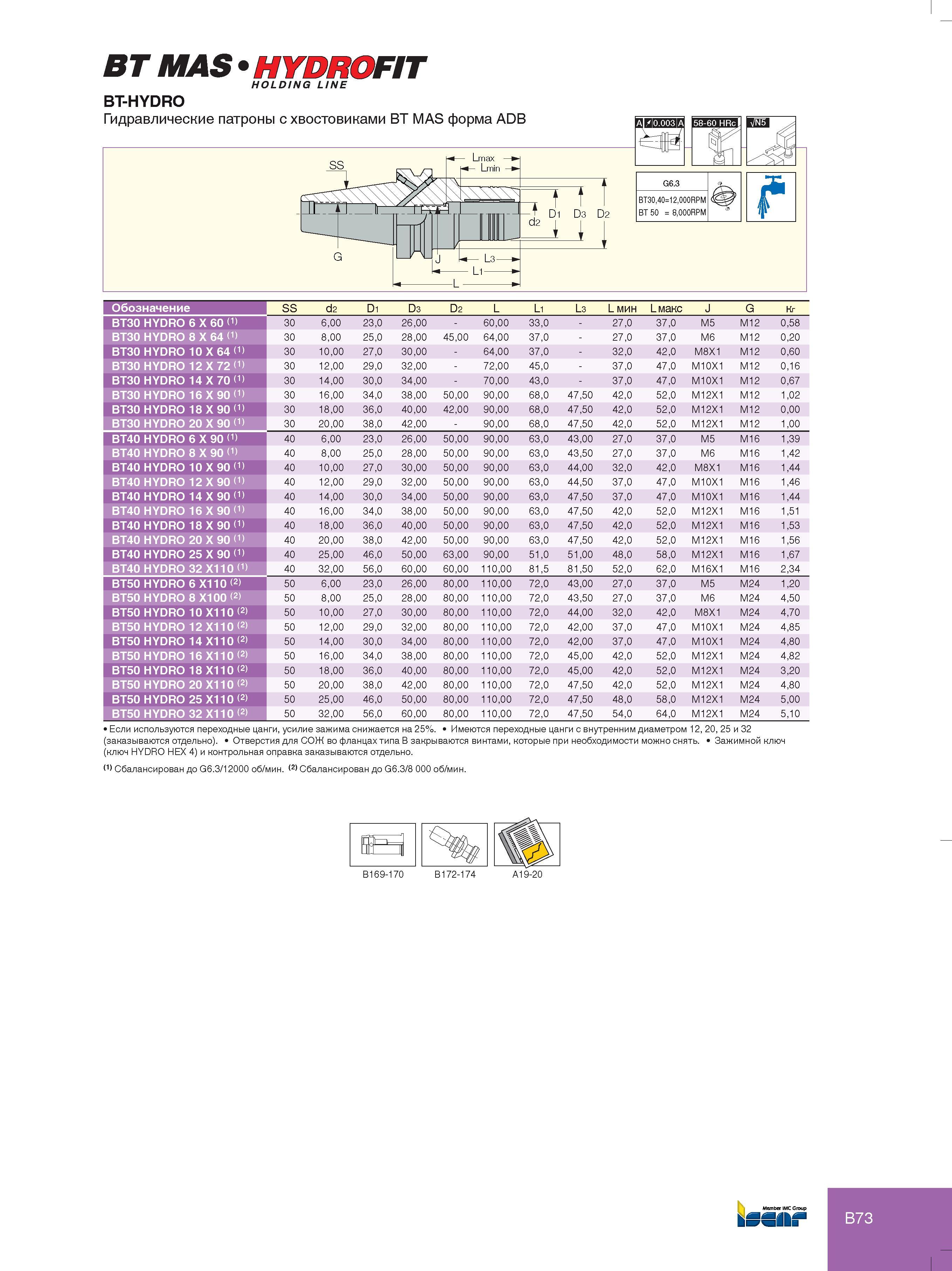

Гидравлические патроны Iscar c хвостовиками BT MAS форма ADB HOLDING LINE BT-HYDRO Обозначение SS d2 Di D3 D2 L Li L3 L мин L макс J G кг BT30 HYDRO 6 X

Гидравлические патроны Iscar c хвостовиками BT MAS форма ADB HOLDING LINE BT-HYDRO Обозначение SS d2 Di D3 D2 L Li L3 L мин L макс J G кг BT30 HYDRO 6 X 60 (1) 30 6,00 23,0 26,00 - 60,00 33,0 - 27,0 37,0 M5 M12 0,58 BT30 HYDRO 8 X 64 (1) 30 8,00 25,0 28,00 45,00 64,00 37,0 - 27,0 37,0 M6 M12 0,20 BT30 HYDRO 10 X 64 (1) 30 10,00 27,0 30,00 - 64,00 37,0 - 32,0 42,0 M8X1 M12 0,60 BT30 HYDRO 12 X 72 (1) 30 12,00 29,0 32,00 - 72,00 45,0 - 37,0 47,0 M10X1 M12 0,16 BT30 HYDRO 14 X 70 (1) 30 14,00 30,0 34,00 - 70,00 43,0 - 37,0 47,0 M10X1 M12 0,67 BT30 HYDRO 16 X 90 (1) 30 16,00 34,0 38,00 50,00 90,00 68,0 47,50 42,0 52,0 M12X1 M12 1,02 BT30 HYDRO 18 X 90 (1) 30 18,00 36,0 40,00 42,00 90,00 68,0 47,50 42,0 52,0 M12X1 M12 0,00 BT30 HYDRO 20 X 90 (1) 30 20,00 38,0 42,00 - 90,00 68,0 47,50 42,0 52,0 M12X1 M12 1,00 BT40 HYDRO 6 X 90 (1) 40 6,00 23,0 26,00 50,00 90,00 63,0 43,00 27,0 37,0 M5 M16 1,39 BT40 HYDRO 8 X 90 (1) 40 8,00 25,0 28,00 50,00 90,00 63,0 43,50 27,0 37,0 M6 M16 1,42 BT40 HYDRO 10 X 90 (1) 40 10,00 27,0 30,00 50,00 90,00 63,0 44,00 32,0 42,0 M8X1 M16 1,44 BT40 HYDRO 12 X 90 (1) 40 12,00 29,0 32,00 50,00 90,00 63,0 44,50 37,0 47,0 M10X1 M16 1,46 BT40 HYDRO 14 X 90 (1) 40 14,00 30,0 34,00 50,00 90,00 63,0 47,50 37,0 47,0 M10X1 M16 1,44 BT40 HYDRO 16 X 90 (1) 40 16,00 34,0 38,00 50,00 90,00 63,0 47,50 42,0 52,0 M12X1 M16 1,51 BT40 HYDRO 18 X 90 (1) 40 18,00 36,0 40,00 50,00 90,00 63,0 47,50 42,0 52,0 M12X1 M16 1,53 BT40 HYDRO 20 X 90 (1) 40 20,00 38,0 42,00 50,00 90,00 63,0 47,50 42,0 52,0 M12X1 M16 1,56 BT40 HYDRO 25 X 90 (1) 40 25,00 46,0 50,00 63,00 90,00 51,0 51,00 48,0 58,0 M12X1 M16 1,67 BT40 HYDRO 32 X110 (1) 40 32,00 56,0 60,00 60,00 110,00 81,5 81,50 52,0 62,0 M16X1 M16 2,34 BT50 HYDRO 6 X110 (2) 50 6,00 23,0 26,00 80,00 110,00 72,0 43,00 27,0 37,0 M5 M24 1,20 BT50 HYDRO 8 X100 (2> 50 8,00 25,0 28,00 80,00 110,00 72,0 43,50 27,0 37,0 M6 M24 4,50 BT50 HYDRO 10 X110 (2> 50 10,00 27,0 30,00 80,00 110,00 72,0 44,00 32,0 42,0 M8X1 M24 4,70 BT50 HYDRO 12 X110 (2> 50 12,00 29,0 32,00 80,00 110,00 72,0 42,00 37,0 47,0 M10X1 M24 4,85 BT50 HYDRO 14 X110 (2> 50 14,00 30,0 34,00 80,00 110,00 72,0 42,00 37,0 47,0 M10X1 M24 4,80 BT50 HYDRO 16 X110 (2> 50 16,00 34,0 38,00 80,00 110,00 72,0 45,00 42,0 52,0 M12X1 M24 4,82 BT50 HYDRO 18 X110 (2> 50 18,00 36,0 40,00 80,00 110,00 72,0 45,00 42,0 52,0 M12X1 M24 3,20 BT50 HYDRO 20 X110 (2> 50 20,00 38,0 42,00 80,00 110,00 72,0 47,50 42,0 52,0 M12X1 M24 4,80 BT50 HYDRO 25 X110 (2> 50 25,00 46,0 50,00 80,00 110,00 72,0 47,50 48,0 58,0 M12X1 M24 5,00 BT50 HYDRO 32 X110 (2> 50 32,00 56,0 60,00 80,00 110,00 72,0 47,50 54,0 64,0 M12X1 M24 5,10 Если используются переходные цанги, усилие зажима снижается на 25%. Имеются переходные цанги с внутренним диаметром 12, 20, 25 и 32 (заказываются отдельно). Отверстия для СОЖ во фланцах типа B закрываются винтами, которые при необходимости можно снять. Зажимной \ (ключ HYDRO HEX 4) и контрольная оправка заказываются отдельно. (1) Сбалансирован до G6.3/12000 об/мин. (2) Сбалансирован до G6.3/8 000 об/мин. B169-170 B172-174 A19-20 Member IMC Group Lmax G6.3 ;к BT30,40=12,000RPM BT 50 = 8,000RPM
