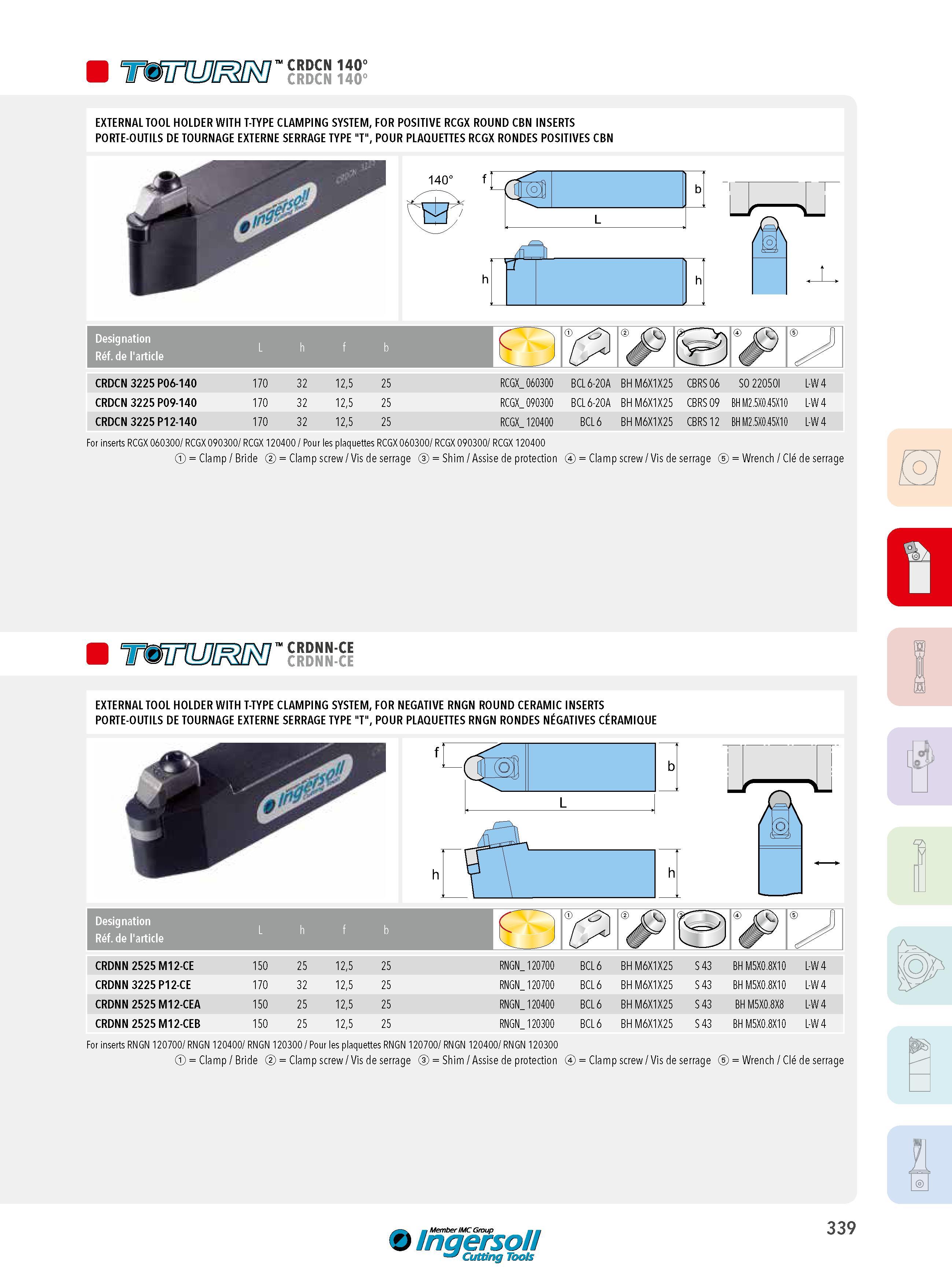

CRDCN 140 EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM, FOR POSITIVE RCGX ROUND CBN INSERTS PORTE-OUTILS DE TOURNAGE EXTERNE SERRAGE TYPE "T", POUR PLAQUETTES RCGX RONDES POSITIVES CBN Designation Réf. de l'article CRDCN 3225 P06-140 CRDCN 3225 P09-140 CRDCN 3225 P12-140 170 32 170 32 170 32 12.5 12.5 12.5 25 25 25 140° fP L (tNl b L RCGX_ 060300 BCL 6-20A BH M6X1X25 RCGX_ 090300 BCL 6-20A BH M6X1X25 RCGX_ 120400 BCL 6 BH M6X1X25 CBRS 06 SO 22050I L-W 4 CBRS 09 BH M2.5X0.45X10 L-W 4 CBRS 12 BH M2.5X0.45X10 L-W 4 h h h b For inserts RCGX 060300/ RCGX 090300/ RCGX 120400 / Pour les plaquettes RCGX 060300/ RCGX 090300/ RCGX 120400 = Clamp / Bride = Clamp screw / Vis de serrage = Shim / Assise de protection = Clamp screw / Vis de serrage = Wrench / Clé de serrage Y N O V -A CRDNN-CE CRDNN-CE EXTERNAL TOOL HOLDER WITH T-TYPE CLAMPING SYSTEM, FOR NEGATIVE RNGN ROUND CERAMIC INSERTS PORTE-OUTILS DE TOURNAGE EXTERNE SERRAGE TYPE "T", POUR PLAQUETTES RNGN RONDES NÉGATIVES CÉRAMIQUE L CjJjsJJ b L I Designation Réf. de l'article L h f b CRDNN 2525 M12-CE 150 25 12,5 25 CRDNN 3225 P12-CE 170 2 3 12,5 25 CRDNN 2525 M12-CEA 150 25 12,5 25 CRDNN 2525 M12-CEB 150 25 12,5 25 120700 BCL6 120700 BCL6 _120400 BCL6 120300 BCL6 BH M6X1X25 BH M6X1X25 BH M6X1X25 BH M6X1X25 S 43 S 43 S 43 S 43 BH M5X0.8X10 L-W 4 BH M5X0.8X10 L-W 4 BH M5X0.8X8 L-W 4 BH M5X0.8X10 L-W 4 For inserts RNGN 120700/ RNGN 120400/ RNGN 120300 / Pour les plaquettes RNGN 120700/ RNGN 120400/ RNGN 120300 = Clamp / Bride = Clamp screw / Vis de serrage = Shim / Assise de protection = Clamp screw / Vis de serrage = Wrench / Clé de serrage Ingersoll Cutting Tools 339
