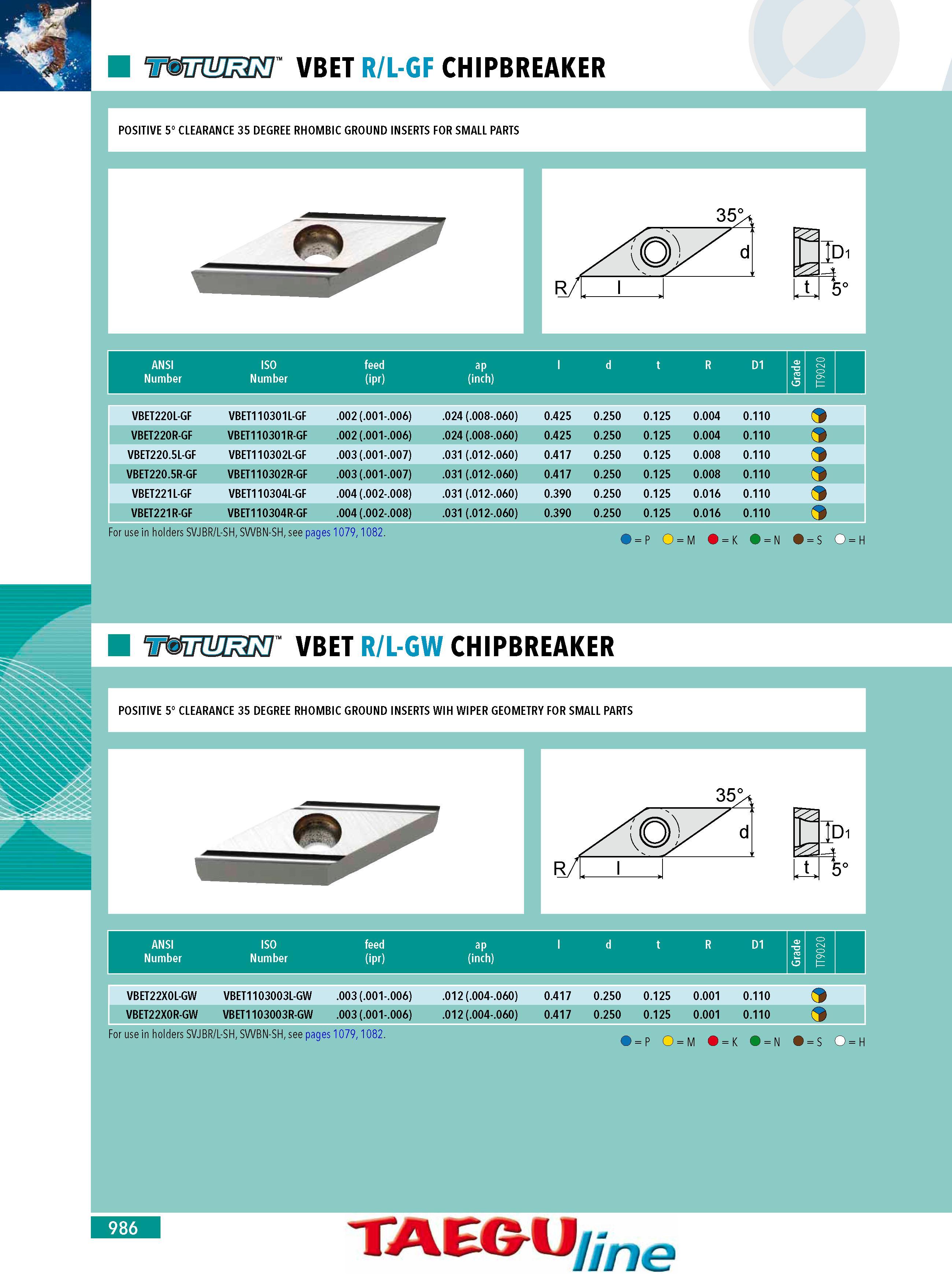

VBET R L-GF CHIPBREAKER POSITIVE 5 CLEARANCE 35 DEGREE RHOMBIC GROUND INSERTS FOR SMALL PARTS ANSI ISO feed ap l d tt RR D1 Number NNmber (ifr) (inch) VBET220L-GF VBET110301L-GF .002 (.001-.006) .024 (.008-.060) 0.425 0.250 0.125 0.004 0.110 VBET220R-GF VBET110301R-GF .002 (.001-.006) .024 (.008-.060) 0.425 0.250 0.125 0.004 0.110 c VBET220.5L-GF VBET110302L-GF .003 (.001-.007) .031 (.012-.060) 0.417 0.250 0.125 0.008 0.110 o VBET220.5R-GF VBET110302R-GF .003 (.001-.007) .031 (.012-.060) 0.417 0.250 0.125 0.008 0.110 o VBET221L-GF VBET110304L-GF .004 (.002-.008) .031 (.012-.060) 0.390 0.250 0.125 0.016 0.110 VBET221R-GF VBET110304R-GF .004 (.002-.008) .031 (.012-.060) 0.390 0.250 0.125 0.016 0.110 For use in holders SVJBR L-SH SVVBN-SH see pages 1079 1082. O P O M K O N S O H WSuWW VBET R L-GW CHIPBREAKER POSITIVE 5 CLEARANCE 35 DEGREE RHOMBIC GROUND INSERTS WIH WIPER GEOMETRY FOR SMALL PARTS iDl 5 ANSI ISO feed ap ld t R D1 Number Number (ipr) (inch) VBET22X0L-GW VBET1103003L-GW .003 (.001-.006) .012 (.004-.060) 0.417 0.250 0.125 0.001 0.110 VBET22X0R-GW VBET1103003R-GW .003 (.001-.006) .012 (.004-.060) 0.417 0.250 0.125 0.001 0.110 For use in holders SVJBR L-SH SVVBN-SH see pages 1079 1082. O P O M I N S O H K 986 TAEGU line
