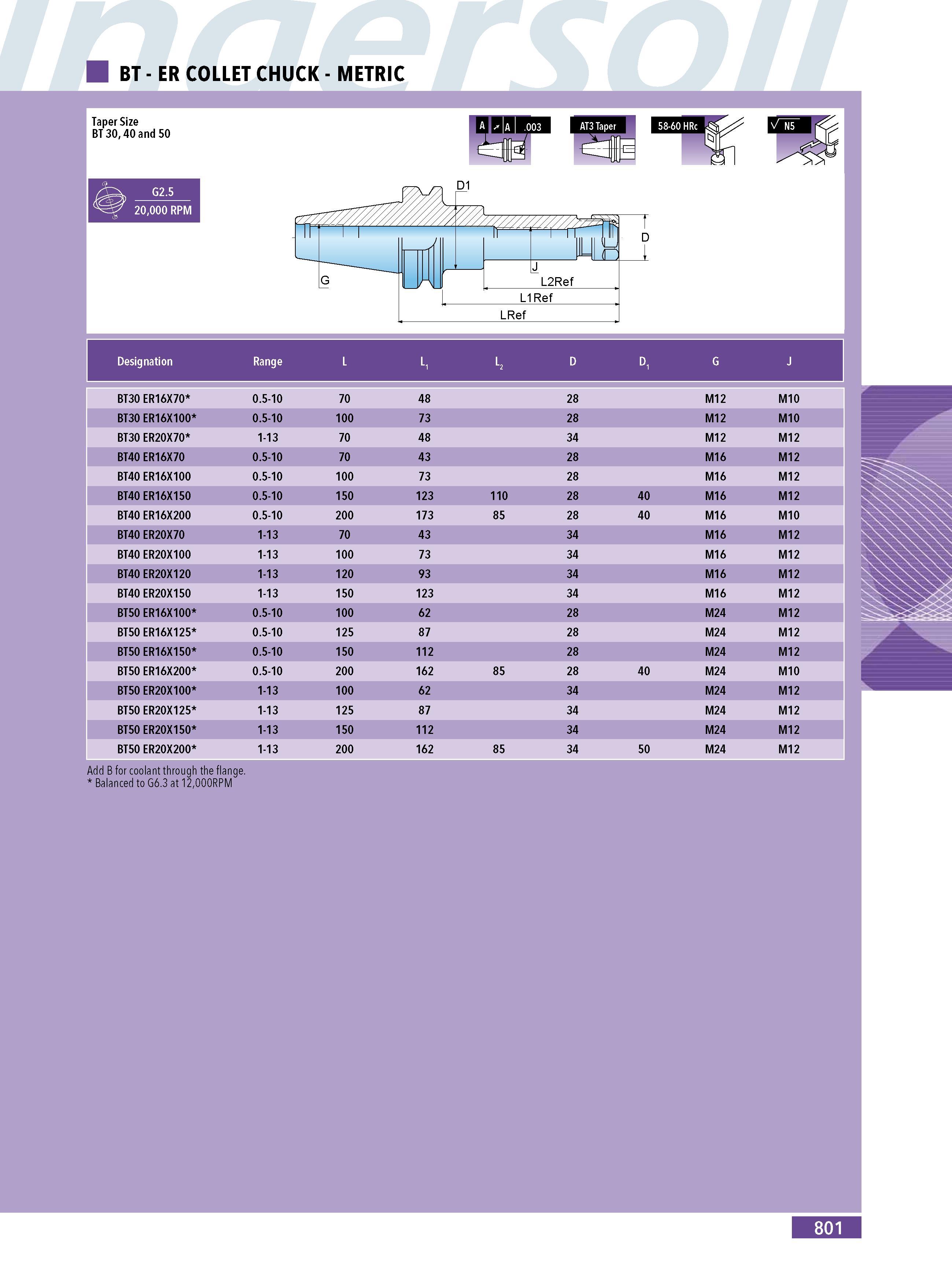

BT - ER COLLET CHUCK - METRIC Taper Size BT30 40 and 50 G2.5 20000 RPM D1 7 i I i 11 D 1 G M J L2Ref LIRef LRef Designation Range L L1 L2 D D1 G J BT30 ER16X70 0.5-10 70 48 28 M12 M10 BT30 ER16X100 0.5-10 100 73 28 M12 M10 BT30 ER20X70 1-13 70 48 34 M12 M12 BT40 ER16X70 0.5-10 70 43 28 M16 M12 BT40 ER16X100 0.5-10 100 73 28 M16 M12 BT40 ER16X150 0.5-10 150 123 110 28 40 M16 M12 BT40 ER16X200 0.5-10 200 173 85 28 40 M16 M10 BT40 ER20X70 1-13 70 43 34 M16 M12 BT40 ER20X100 1-13 100 73 34 M16 M12 BT40 ER20X120 1-13 120 93 34 M16 M12 BT40 ER20X150 1-13 150 123 34 M16 M12 BT50 ER16X100 0.5-10 100 62 28 M24 M12 BT50 ER16X125 0.5-10 125 87 28 M24 M12 BT50 ER16X150 0.5-10 150 112 28 M24 M12 BT50 ER16X200 0.5-10 200 162 85 28 40 M24 M10 BT50 ER20X100 1-13 100 62 34 M24 M12 BT50 ER20X125 1-13 125 87 34 M24 M12 BT50 ER20X150 1-13 150 112 34 M24 M12 BT50 ER20X200 1-13 200 162 85 34 50 M24 M12 Add B for coolant through the flange. Balanced to G6.3 at 12000RPM 801
