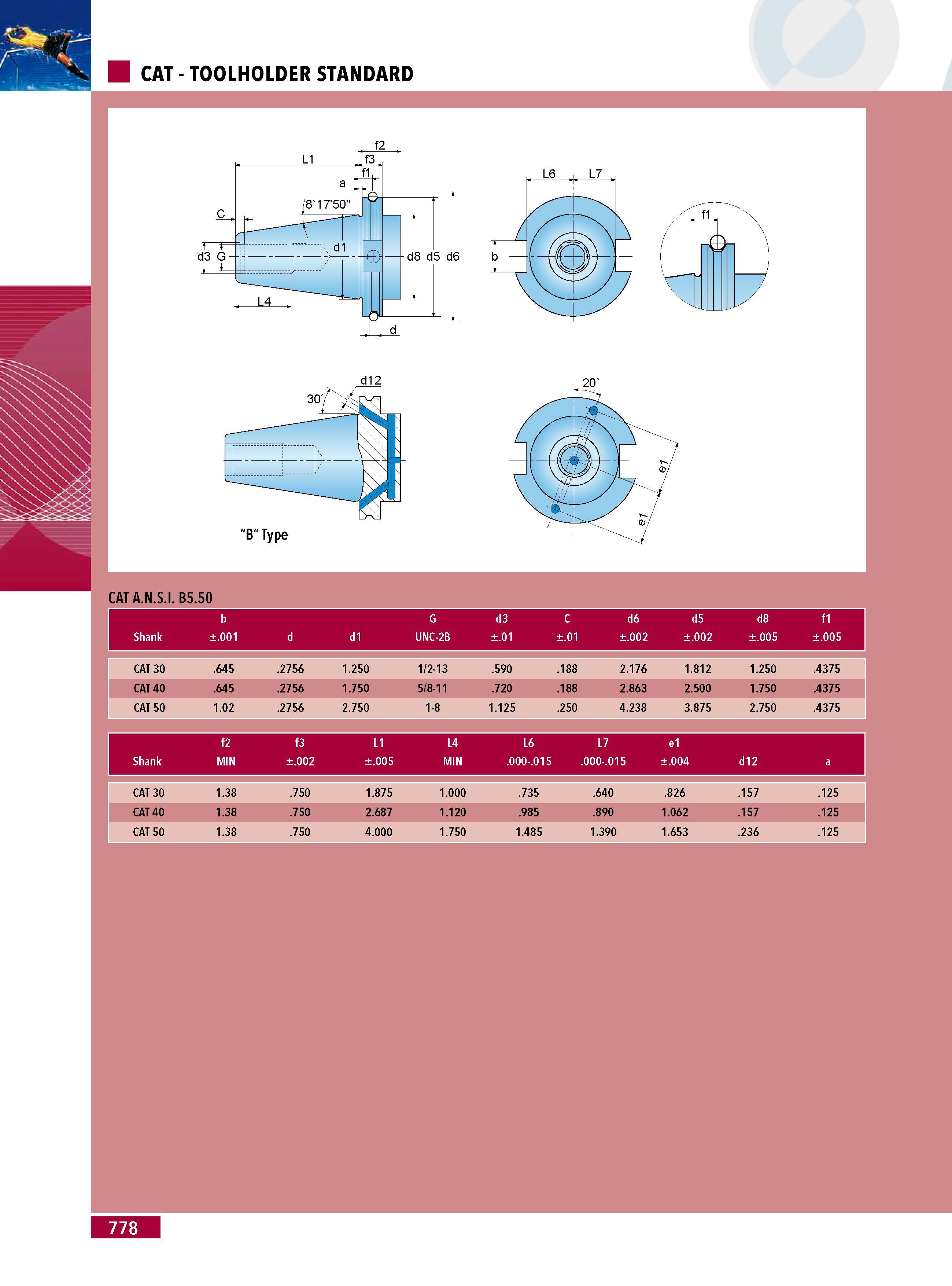

CAT -TOOLHOLDER STANDARD d12 CAT A.N.S.I. B5.50 Shank b .001 d d1 G UNC-2B d3 .01 C .01 d6 .002 d5 .002 d8 .005 f1 .005 CAT 30 .645 .2756 1.250 1 2-13 .590 .188 2.176 1.812 1.250 .4375 CAT 40 .645 .2756 1.750 5 8-11 .720 .188 2.863 2.500 1.750 .4375 CAT 50 1.02 .2756 2.750 1-8 1.125 .250 4.238 3.875 2.750 .4375 f2 f3 L1 L4 L6 L7 e1 Shank MIN .002 .005 MIN .000-.015 .000-.015 .004 d12 a CAT 30 1.38 .750 1.875 1.000 .735 .640 .826 .157 .125 CAT 40 1.38 .750 2.687 1.120 .985 .890 1.062 .157 .125 CAT 50 1.38 .750 4.000 1.750 1.485 1.390 1.653 .236 .125 778
