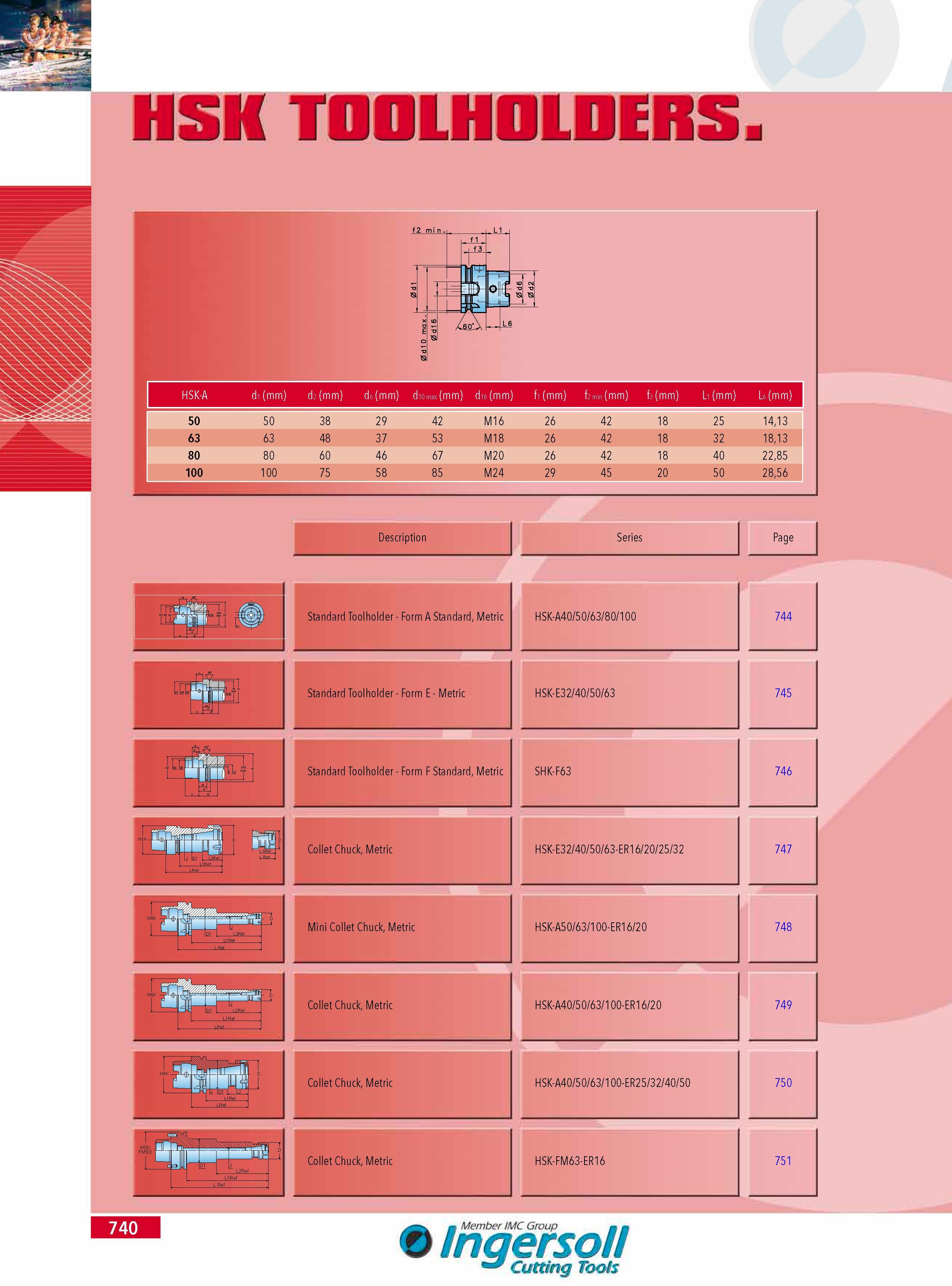

HSK TOOLHOLDERS. HSK-A d1 (mm) d2 (mm) d6 (mm) d 10 max (mm) d16 (mm) f1 (mm) f2 min (mm) f3 (mm) L1 (mm) L6 (mm) 50 50 38 29 42 M16 26 42 18 25 1413 63 63 48 37 53 M18 26 42 18 32 1813 80 80 60 46 67 M20 26 42 18 40 2285 100 100 75 58 85 M24 29 45 20 50 2856 Description Series Page Standard Toolholder - Form A Standard Metric 1- Spl Uj Standard Toolholder - Form E - Metric ff T IH J Idi L R Hr j L2Ref Collet Chuck Metric HSK-A40 50 63 80 100 HSK-E32 40 50 63 SHK-F63 HSK-E32 40 50 63-ER1 6 20 25 32 HSK-A50 63 100-ER16 20 HSK-A40 50 63 100-ER16 20 HSK-A40 50 63 100-ER25 32 40 50 HSK-FM63-ER16 744 745 746 747 748 749 750 751 740 m Member IMC Croup m m O Ingersoll Cutting Tools
