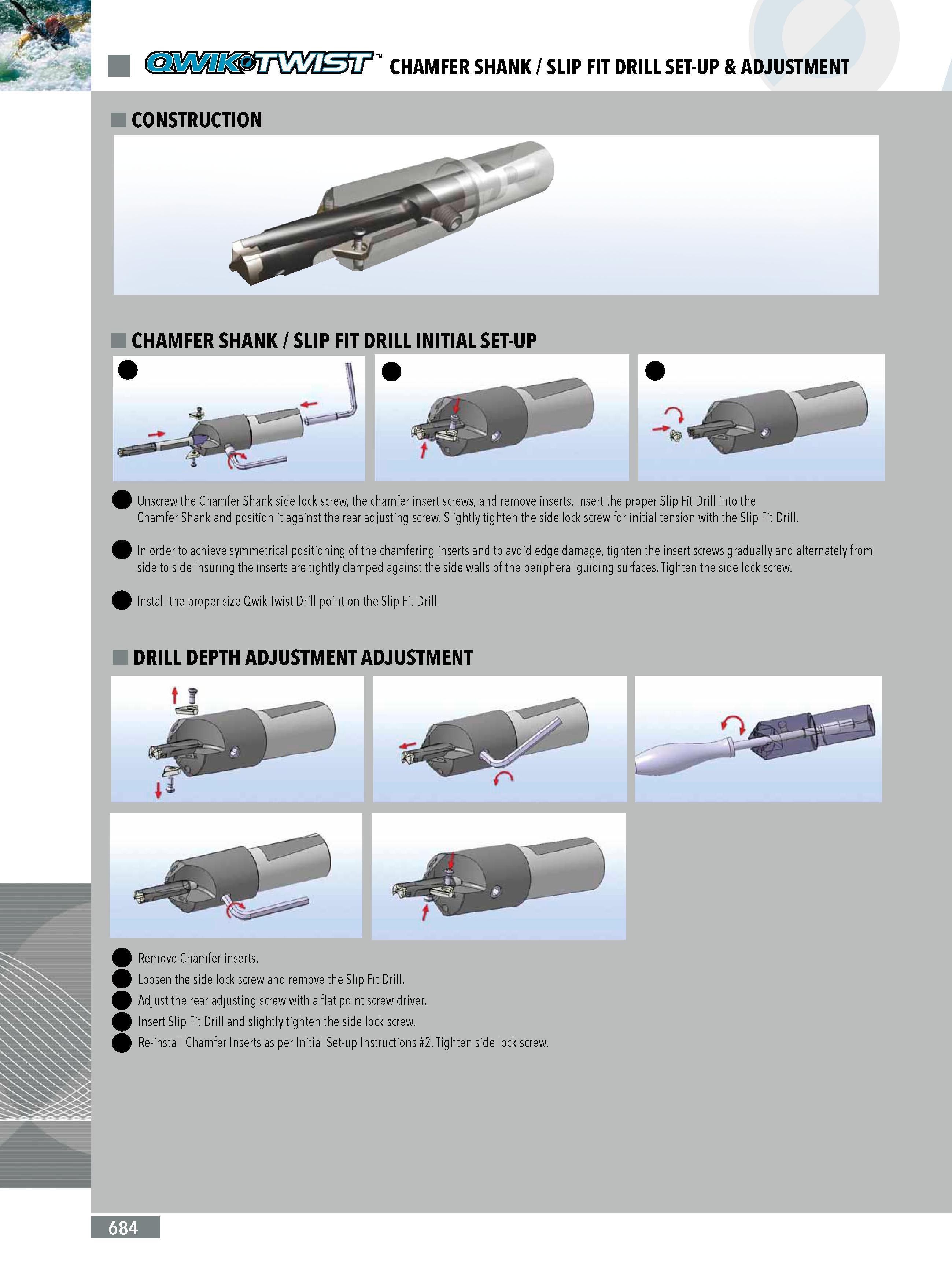

CHAMFER SHANK SLIP FIT DRILL SET-UP & ADJUSTMENT CONSTRUCTION CHAMFER SHANK SLIP FIT DRILL INITIAL SET-UP Unscrew the Chamfer Shank side lock screw the chamfer insert screws and remove inserts. Insert the proper Slip Fit Drill into the Chamfer Shank and position it against the rear adjusting screw. Slightly tighten the side lock screw for initial tension with the Slip Fit Drill. In order to achieve symmetrical positioning of the chamfering inserts and to avoid edge damage tighten the insert screws gradually and alternately from side to side insuring the inserts are tightly clamped against the side walls of the peripheral guiding surfaces. Tighten the side lock screw. Install the proper size Qwik Twist Drill point on the Slip Fit Drill. DRILL DEPTH ADJUSTMENT ADJUSTMENT Remove Chamfer inserts. Loosen the side lock screw and remove the Slip Fit Drill. Adjust the rear adjusting screw with a flat point screw driver. Insert Slip Fit Drill and slightly tighten the side lock screw. Re-install Chamfer Inserts as per Initial Set-up Instructions 2. Tighten side lock screw. 684
