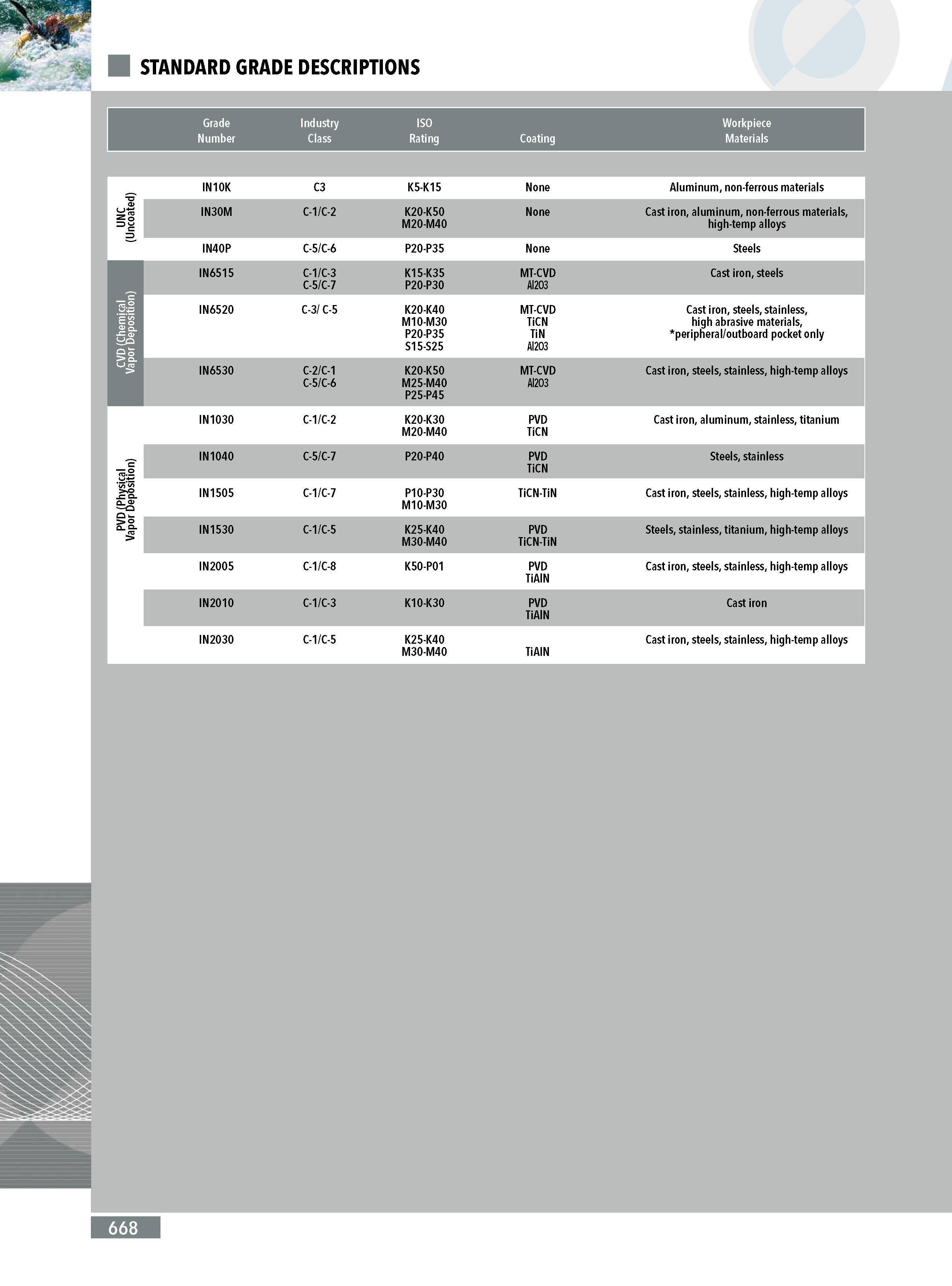

STANDARD GRADE DESCRIPTIONS Grade Industry ISO Workpiece Number Class Rating Coating Materials UNC (Uncoated) IN10K C3 K5-K15 None Aluminum non-ferrous materials IN30M C-1 C-2 K20-K50 M20-M40 None Cast iron aluminum non-ferrous materials high-temp alloys IN40P C-5 C-6 P20-P35 None Steels ) IN6515 C-1 C-3 C-5 C-7 K15-K35 P20-P30 MT-CVD AI2O3 Cast iron steels n alio E8 & IN6520 C-3 C-5 K20-K40 M10-M30 P20-P35 S15-S25 MT-CVD TiCN TiN AI2O3 Cast iron steels stainless high abrasive materials peripfieral outboard pocket only IN6530 C-2 C-1 C-5 C-6 K20-K50 M25-M40 P25-P45 MT-CVD AI2O3 Cast iron steels stainless high-temp alloys IN1030 C-1 C-2 K20-K30 M20-M40 PVD TiCN Cast iron aluminum stainless titanium PVD (Physical Vapor Deposition) IN1040 C-5 C-7 P20-P40 PVD TiCN Steels stainless IN1505 C-1 C-7 P10-P30 M10-M30 TiCN-TiN Cast iron steels stainless high-temp alloys IN1530 C-1 C-5 K25-K40 M30-M40 PVD TiCN-TiN Steels stainless titanium high-temp alloys IN2005 C-1 C-8 K50-P01 PVD TiAIN Cast iron steels stainless high-temp alloys IN2010 C-1 C-3 K10-K30 PVD TiAlN Cast iron IN2030 C-1 C-5 K25-K40 M30-M40 TiAIN Cast iron steels stainless high-temp alloys 668
