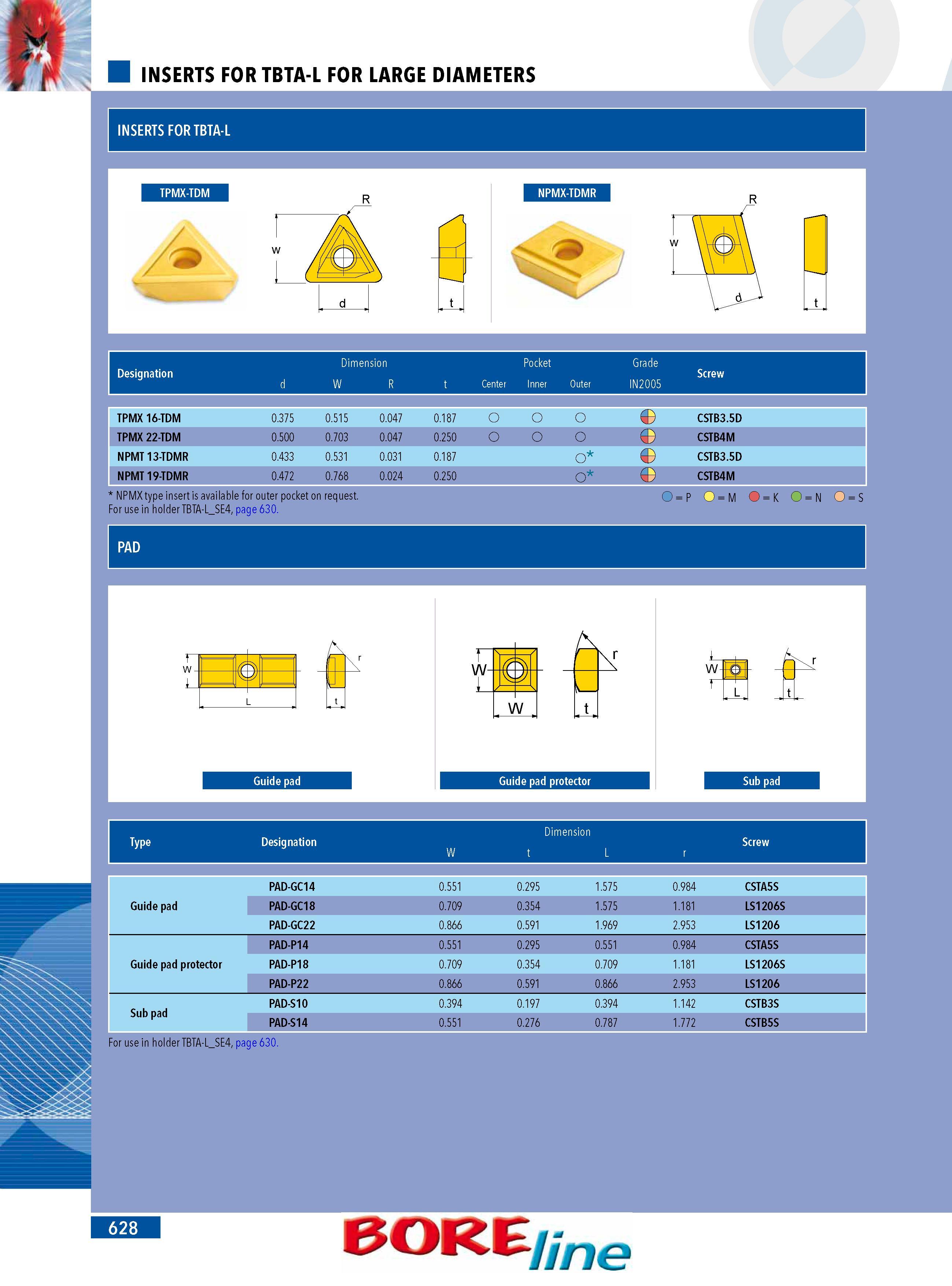

INSERTS FOR TBTA-L FOR LARGE DIAMETERS Dimension Pocket Grade Screw Designation d W R t Center Inner Outer IN2005 TPMX 16-TDM 0.375 0.515 0.047 0.187 O CSTB3.5D TPMX 22-TDM 0.500 0.703 0.047 0.250 O CSTB4M NPMT 13-TDMR 0.433 0.531 0.031 0.187 O CSTB3.5D NPMT 19-TDMR 0.472 0.768 0.024 0.250 O CSTB4M NPMX type insert is available for outer pocket on request. For use in holder TBTA-LSE4 page 630. O P O M O K O N O S PAD Dimension Type Designation Screw W t L r PAD-GC14 0.551 0.295 1.575 0.984 CSTA5S Guide pad PAD-GC18 0.709 0.354 1.575 1.181 LS1206S PAD-GC22 0.866 0.591 1.969 2.953 LS1206 PAD-P14 0.551 0.295 0.551 0.984 CSTA5S Guide pad protector PAD-P18 0.709 0.354 0.709 1.181 LS1206S PAD-P22 0.866 0.591 0.866 2.953 LS1206 Sub pad PAD-S10 0.394 0.197 0.394 1.142 CSTB3S PAD-S14 0.551 0.276 0.787 1.772 CSTB5S For use in holder TBTA-LSE4 page 630. 628 60RE ne
