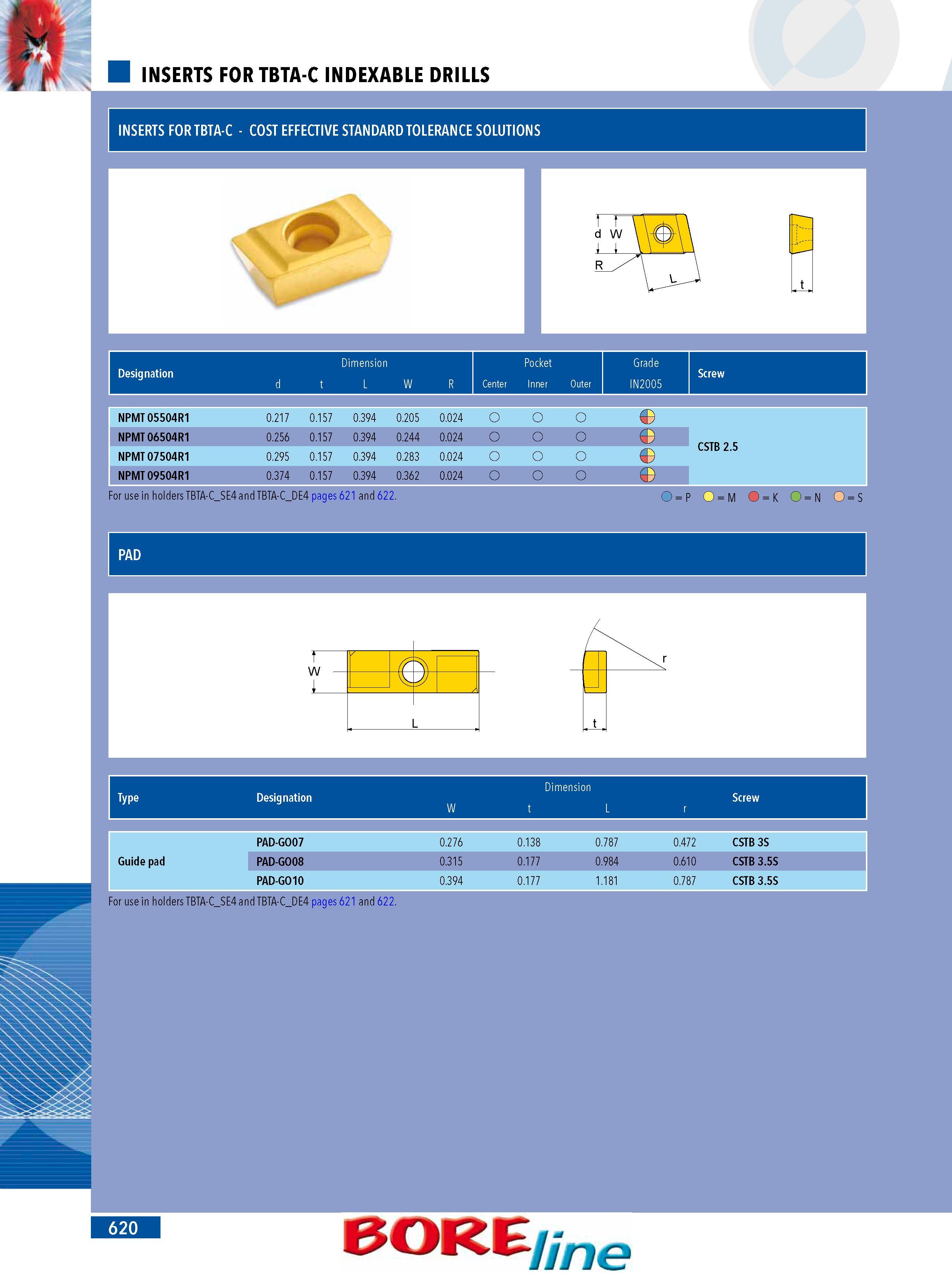

INSERTS FOR TBTA-C INDEXABLE DRILLS INSERTS FOR TBTA-C - COST EFFECTIVE STANDARD TOLERANCE SOLUTIONS Dimension Pocket Grade Designation Screw d t L W R Center Inner Outer IN2005 NPMT 05504R1 0.217 0.157 0.394 0.205 0.024 O NPMT 06504R1 0.256 0.157 0.394 0.244 0.024 o CSTB 2.5 NPMT 07504R1 0.295 0.157 0.394 0.283 0.024 o NPMT 09504R1 0.374 0.157 0.394 0.362 0.024 o For use in holders TBTA-CSE4 and TBTA-CDE4 pages 621 and 622. O P O M O K O N O S PAD Dimension Type Designation Screw W t L r PAD-GO07 0.276 0.138 0.787 0.472 CSTB 3S Guide pad PAD-GO08 0.315 0.177 0.984 0.610 CSTB 3.5S PAD-GO10 0.394 0.177 1.181 0.787 CSTB 3.5S For use in holders TBTA-CSE4 and TBTA-CDE4 pages 621 and 622. 620 60KE ne
