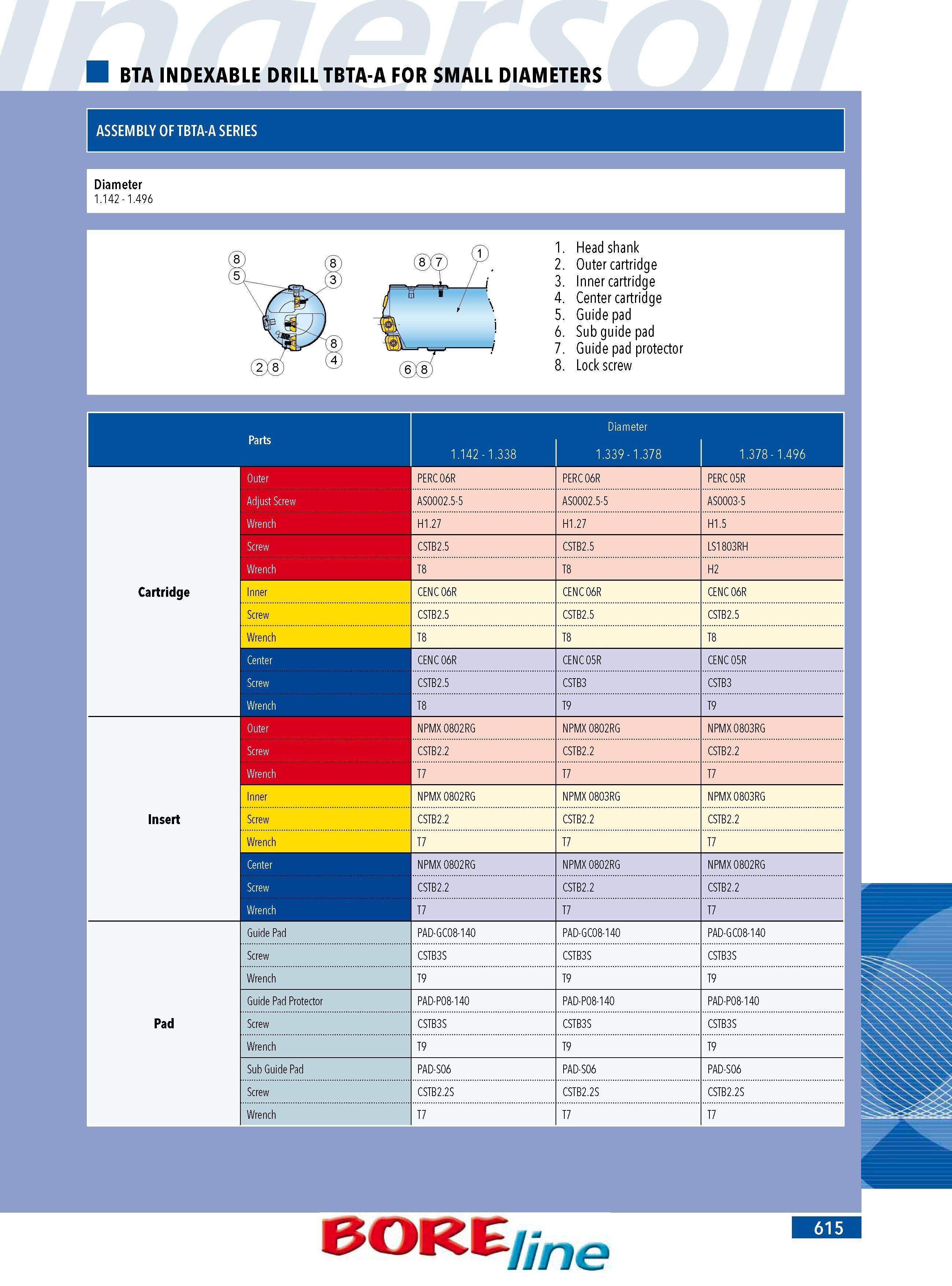

BTA INDEXABLE DRILL TBTA-A FOR SMALL DIAMETERS ASSEMBLY OF TBTA-A SERIES Diameter 1.142 - 1.496 Head shank Outer cartridge Inner cartridge Center cartridge Guide pad Sub guide pad Guide pad protector Lock screw Diameter Parts 1.142 - 1.338 1.339 - 1.378 1.378 - 1.496 Outer PERC06R PERC06R PERC 05R Adjust Screw AS0002.5-5 AS0002.5-5 AS0003-5 Wrench H1.27 H1.27 H1.5 Screw CSTB2.5 CSTB2.5 LS1803RH Wrench T8 T8 H2 Cartridge Inner CENC06R CENC 06R CENC06R Screw CSTB2.5 CSTB2.5 CSTB2.5 Wrench T8 T8 T8 Center CENC06R CENC 05R CENC05R Screw CSTB2.5 CSTB3 CSTB3 Wrench T8 T9 T9 Outer NPMX0802RG NPMX 0802RG NPMX 0803RG Screw CSTB2.2 CSTB2.2 CSTB2.2 Wrench T7 T7 T7 Inner NPMX0802RG NPMX 0803RG NPMX 0803RG Insert Screw CSTB2.2 CSTB2.2 CSTB2.2 Wrench T7 T7 T7 Center NPMX0802RG NPMX 0802RG NPMX 0802RG Screw CSTB2.2 CSTB2.2 CSTB2.2 Wrench T7 T7 T7 Guide Pad PAD-GC08-140 PAD-GC08-140 PAD-GC08-140 Screw CSTB3S CSTB3S CSTB3S Wrench T9 T9 T9 Guide Pad Protector PAD-P08-140 PAD-P08-140 PAD-P08-140 Pad Screw CSTB3S CSTB3S CSTB3S Wrench T9 T9 T9 Sub Guide Pad PAD-S06 PAD-S06 PAD-S06 Screw CSTB2.2S CSTB2.2S CSTB2.2S Wrench T7 T7 T7 BORE ne 615
