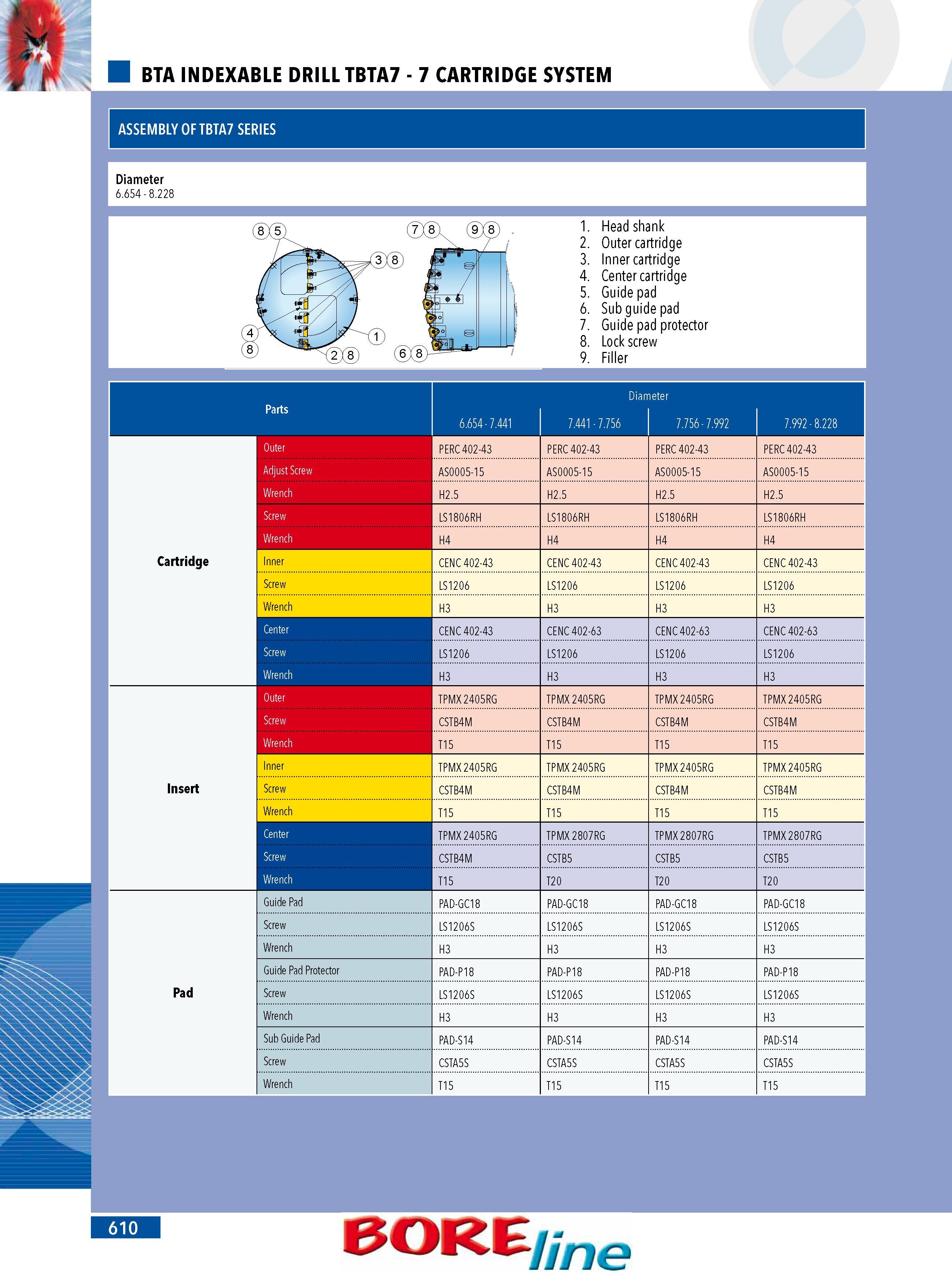

BTA INDEXABLE DRILL TBTA7 - 7 CARTRIDGE SYSTEM ASSEMBLY OF TBTA7 SERIES Diameter 6.654 - 8.228 1. Head shank 2. Outer cartridge 3. Inner cartridge 4. Center cartridge 5. Guide pad 6. Sub guide pad 7. Guide pad protector 8. Lock screw 9. Filler POREline Diameter 6.654 - 7.441 7.441 - 7.756 7.756 - 7.992 7 992 8 228 Outer PERC 402-43 PERC 402-43 PERC 402-43 PERC 402-43 Adjust Screw AS0005-15 AS0005-15 AS0005-15 AS0005-15 Wrench H2.5 H2.5 H2.5 H2.5 Screw LS1806RH LS1806RH LS1806RH LS1806RH Wrench H4 H4 H4 H4 Cartridge Inner CENC 402-43 CENC 402-43 CENC 402-43 CENC 402-43 Screw LS1206 LS1206 LS1206 LS1206 Wrench H3 H3 H3 H3 CENC 402-43 CENC 402-63 CENC 402-63 CENC 402-63 Screw LS1206 LS1206 LS1206 LS1206 Wrench H3 H3 H3 H3 Outer TPMX2405RG TPMX2405RG TPMX 2405RG TPMX2405RG Screw CSTB4M CSTB4M CSTB4M CSTB4M Wrench T15 T15 T15 T15 Inner TPMX2405RG TPMX2405RG TPMX 2405RG TPMX2405RG Insert Screw CSTB4M CSTB4M CSTB4M CSTB4M Wrench T15 T15 T15 T15 Center TPMX2405RG TPMX2807RG TPMX 2807RG TPMX2807RG Screw CSTB4M CSTB5 CSTB5 CSTB5 Wrench T15 T20 T20 T20 Guide Pad PAD-GC18 PAD-GC18 PAD-GC18 PAD-GC18 Screw LS1206S LS1206S LS1206S LS1206S Wrench H3 H3 H3 H3 Guide Pad Protector PAD-P18 PAD-P18 PAD-P18 PAD-P18 Pad Screw LS1206S LS1206S LS1206S LS1206S Wrench H3 H3 H3 H3 Sub Guide Pad PAD-S14 PAD-S14 PAD-S14 PAD-S14 Screw CSTA5S CSTA5S CSTA5S CSTA5S Wrench T15 T15 T15 T15
